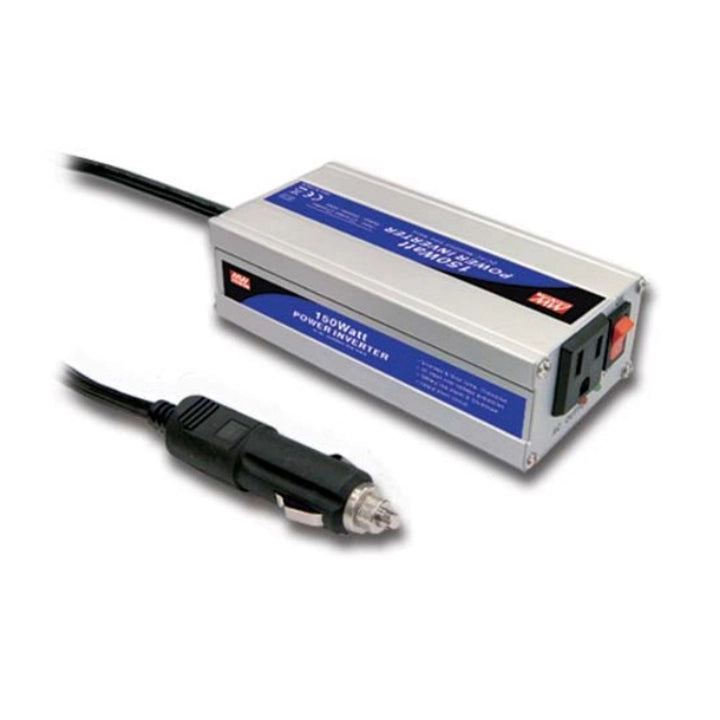

MEAN WELL A302-150-B2 is a 150 W rated modified sine wave inverter with 24 VDC input and 110 VAC, 60 Hz output through one TYPE-2 US receptacle. Output is subject to the separate duration and derating limits below.
Product Datasheet
Download MEAN WELL A301/302-150 Datasheet (PDF)
The A301/302-150 section is on PDF pages 3, 4. Refer to the complete mechanical drawings and notes when planning installation.
Model and AC Output
| Rated output power |
150 W |
| Nominal DC input voltage |
24 VDC |
| Rated AC output voltage |
110 VAC |
| Surge output power |
300 W |
| Output waveform |
Modified sine wave |
| Output frequency |
60 Hz ±1% |
| AC output regulation |
±10% |
| Standard AC receptacles |
TYPE-2 US × 1 |
| Complete order code |
A302-150-B2 |
| Safety model designation |
A302-150 |
A302 identifies the 24 VDC input version. The B2 suffix selects the 110 VAC, 60 Hz output and the TYPE-2 US receptacle arrangement shown above. Match both input and output ratings to the intended equipment.
The 300 W figure is the surge rating, not the normal load rating. No surge duration is specified for this model. Check that the connected load is suitable for a modified sine wave supply.
The 150 W rating is subject to the separate load-duration and temperature limits below; it is not an unlimited-duration 150 W operating guarantee.
DC Input and Supplied Leads
| DC input range |
21–30 VDC |
| DC input current |
10 A |
| No-load input current |
0.2 A |
| Typical efficiency |
82% |
| Standard DC connection |
700 mm cigarette-plug lead × 1 |
| Fuse arrangement |
10 A × 1 |
Use the correct DC polarity and a connection rated for the actual current. The input ranges and low-battery protection thresholds are separate specifications; a shutdown threshold is not a guaranteed full-power input rating.
The listed fuse arrangement describes this inverter and its specified leads. Do not substitute a lower-rated vehicle outlet or lead for the required battery connection.
Controls, Indication and Cooling
| Local power control |
Power ON/OFF switch |
| Status indication |
Green power-ON indicator |
| Cooling |
Free-air convection |
Microprocessor-based inverter control converts the specified DC supply to modified sine wave AC output.
Protection
| Low-battery alarm |
20.5 ±1 V |
| Low-battery shutdown |
19.5 ±1 V |
| Over-voltage protection range |
30–32 V |
| Over-temperature protection |
60 ±5°C |
| Output short-circuit protection |
Output shut-off |
| Reverse input polarity |
Fuse opens |
Overload protection is listed as a feature. A quantitative overload trip or automatic restart characteristic is not specified for this model.
A short circuit shuts off the output; automatic recovery is not specified. Remove the fault and check the inverter before returning it to service.
Load Duration and Environment
| Specification-table working temperature |
0–30°C at 100% load; 40°C at 50% load |
| Working humidity |
20–90% RH, non-condensing |
| Storage temperature |
−30 to +70°C |
| Storage humidity |
10–95% RH |
| Temperature coefficient |
±0.05%/°C over 0–50°C |
| 100% load duration |
20 minutes |
| 80% load duration |
40 minutes |
| 70% load duration |
120 minutes |
| Continuous-duty load reference |
60% of rated power |
Install with unobstructed ventilation. Keep the inverter away from direct sunlight, heat sources, children, water, moisture, oil, grease and flammable materials.
The separate derating graph limits output to 70% of rating from 0 to 20°C and reduces it to 30% at 40°C. Its load limit must also be observed alongside the duration chart.
Use the lower applicable thermal and duration limit. The continuous-duty reference is 90 W before any stricter temperature derating; the 150 W table rating and the specification-table temperature entry do not override these operating charts. Confirm the intended operating point if it falls outside their combined limits.
Dimensions, Installation and Receptacle Options
| Catalogue body reference dimensions |
122 × 73 × 45 mm |
| Catalogue packing reference per unit |
500 g |
The 500 g value is the catalogue packing reference per unit, not a measured net weight or a shipping-parcel weight. The printed packing entry is 0.5 kg; 30 pcs / 17 kg / carton.
Use the supplied DC lead and the receptacle appropriate to this version. The body dimensions do not include a connected AC plug, DC cable bend or required ventilation clearance.
The applicable catalogue page illustrates TYPE-1 Japan and TYPE-2 US receptacle options. This B2 order code specifies TYPE-2; request and confirm any different factory receptacle arrangement before ordering.
Safety, EMC and Reliability
| Safety approval |
EAC TP TC 004 |
| Input-to-output insulation resistance |
100 MΩ at 500 VDC / 25°C / 70% RH |
| Manufacturer catalogue warranty |
1 year |
| MTBF, MIL-HDBK-217F at 25°C |
200 k hours minimum |
The catalogue lists E13, EAC, CE and UKCA markings. Safety and conformity statements apply to the inverter within the manufacturer’s stated scope, not automatically to a complete vehicle or connected installation.
EMI radiation: compliance with BS EN/EN55014-1 and EAC TP TC 020. EMC immunity: compliance with BS EN/EN55014-2, IEC61000-4-2 and IEC61000-4-3, and EAC TP TC 020. LVD compliance: BS EN/EN62368-1.
Suitable applications listed by the manufacturer include household appliances, office equipment, portable equipment and vehicles, with power-tool applications also listed for this family. Check the load’s waveform and starting requirements before selection.
