MEAN WELL DC PLUG-P1J-R6B is a DC plug converter for adapting a compatible P1J adapter output to the R6B connector, listed as KYCON KPPX-3P. It changes the connector interface; it does not convert or regulate the adapter output voltage. Match the exact connector, electrical rating and polarity to the adapter and load.
Product Datasheet
Download MEAN WELL DC PLUG Datasheet (PDF)
The DC PLUG section is on PDF pages 1. Refer to the complete mechanical drawings and notes when planning installation.
Accessory Identification
| Complete ordering number |
DC PLUG-P1J-R6B. |
| Product category |
Changeable DC plug converter accessory. |
| Function |
Connector adaptation between the source and destination interfaces specified in the ordering number. |
Source Interface and Compatibility
| Required original adapter plug |
P1J standard DC plug; catalogue size 2.1 × 5.5 × 11 mm. |
| Adapter selection |
NGE12–90, GST18–60, GSM06–60, GEM06–60, GE12–40, SGA12–60, SGAS06–60, GS06/15, OWA-60U/E; matching P1J-equipped versions only. |
The guide groups adapters by their original DC connector. The listed family name alone does not establish compatibility with every voltage, current or connector option in that family.
Select the converter by its complete ordering number, the adapter’s actual output connector and the load’s required mating interface.
Destination Connector and Mechanical Selection
| Destination connector code |
R6B. |
| Catalogue connector reference |
KYCON KPPX-3P. |
| Construction shown |

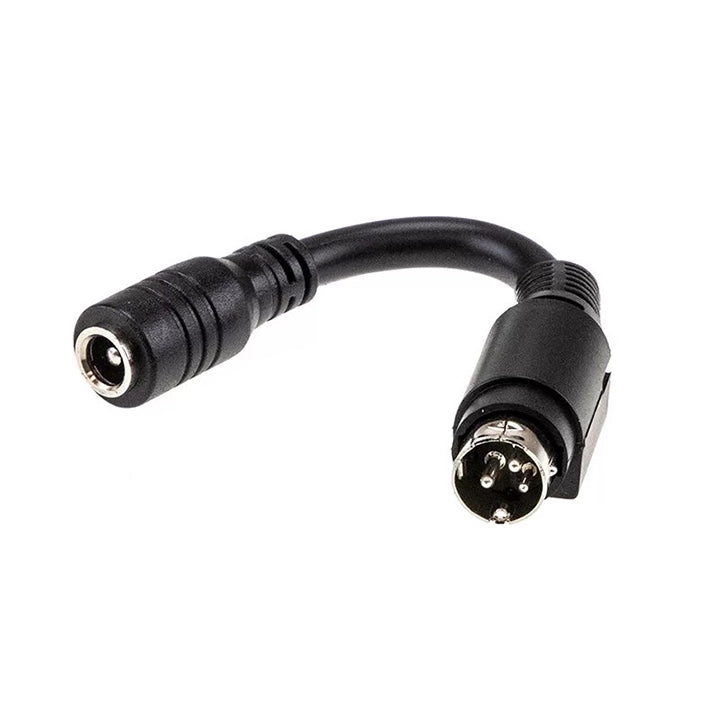

Converter lead assembly illustrated for this ordering group; no lead length is specified. |
| Polarity and pin assignment |
Confirm the adapter and load polarity and, where applicable, the individual pin assignment using the corresponding adapter specification. Connector shape alone is not a wiring specification. |
Electrical Selection and Assembly
| Current and voltage suitability |
Refer to the exact MEAN WELL adapter specification for the DC plug rating and compatibility, as required by the selection guide. |
| Selection limits |
The converter does not increase the voltage, current or power capability of the adapter or connected equipment. |
The assembly illustration shows the converter fitted between the adapter’s existing DC output plug and the required destination connector. Match the mating interfaces before connection.
This ordering number identifies the converter accessory. Select the compatible power adapter and load separately.
