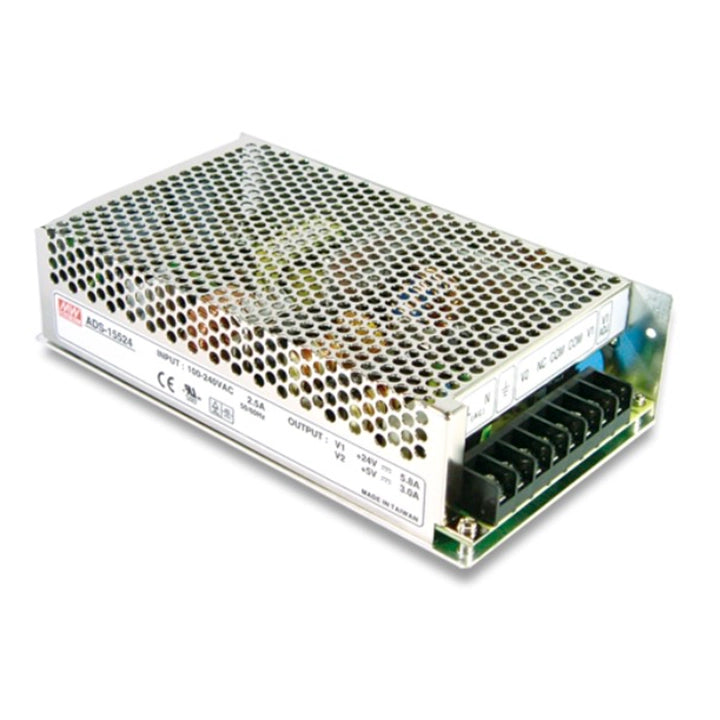

Description
Output channel: CH3 (charging) Output voltage: 53.5V Output rated current: 0.2A Output power rating: 149.9W Output voltage adjustment range: CH1:48~58V Input voltage: 88 ~ 264VAC or 124 ~ 370VDC Size (mm):199X110X50
Product Features
1. International universal full range input: 88 ~ 264VAC.
2. No fan design.
3. ADS: single-group regulated output, additional 5V, no external battery; AD: single-group output has built-in battery charging control, which can be externally hung to form UPS function; ADD: double-group output has built-in battery charging control, and can be externally hung to form UPS function.
4. Protection type: short circuit/overload/overvoltage.
5. Battery low voltage protection (except ADS series).
6. Battery polarity protection (AD/ADD-155).
7, -10 ~ +60 ℃ working temperature.
8. Support 12V/24V/48V system, 2 years warranty.
