MEAN WELL APC-12-700 Constant Current LED Power Supply

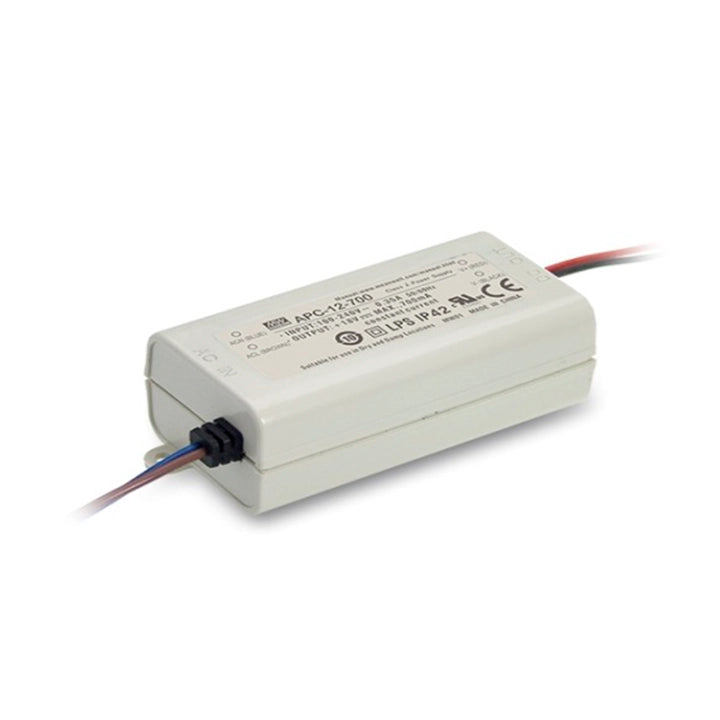

The MEAN WELL APC-12-700 is a single-output AC/DC constant current LED power supply providing 700 mA constant current over a 9-18 V DC operating range, with a catalog rated power of 12.6 W. It accepts 90-264 VAC or 127-370 VDC and uses a fully isolated IP42 plastic enclosure cooled by free-air convection. Select an LED load requiring 700 mA and having a total operating voltage within 9-18 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits.
Download MEAN WELL APC-12 Datasheet (PDF)
See PDF pages 15-16 for this model column, its connection drawing and derating curves.
Download MEAN WELL LED Installation Manual (PDF)
Model and application
| Parameter |
Details |
| Full model |
APC-12-700 |
| Series and model code |
APC-12 is the product series. The final code 700 identifies the 700 mA output current. The series wattage designation is not a substitute for this model's actual rated output power. |
| Operating mode |
Constant current. Select an LED load requiring 700 mA and having a total operating voltage within 9-18 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. |
| Intended application |
LED-related fixtures or appliances, such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. |
| Application qualification |
Use the supply as a component in the final equipment. The equipment manufacturer must assess the complete installation and re-qualify EMC performance with the load, wiring and enclosure. |
Output and dynamic performance
| Parameter |
Details |
| Rated output current |
700 mA |
| Operating DC voltage range |
9-18 V |
| Catalog rated power |
12.6 W. |
| Current accuracy |
±8.0%. |
| Voltage tolerance |
±5.0%; the catalog note includes setup tolerance. This is separate from the ±8.0% output-current accuracy. |
| Setup and rise time |
3000 ms setup / 180 ms rise at 230 VAC; 3000 ms setup / 150 ms rise at 115 VAC, at full load. |
| Hold-up time, typical |
20 ms at 230 VAC; 15 ms at 115 VAC, at full load. |
| Measurement basis |
Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Typical values depend on operating conditions. |
Input and supply planning
| Parameter |
Details |
| Input range |
90-264 VAC, 47-63 Hz; alternatively 127-370 VDC. Apply the input-voltage derating curve. |
| AC input current |
0.2 A at 230 VAC; 0.35 A at 115 VAC |
| Efficiency, typical |
80% at the catalog measurement conditions; not a guaranteed efficiency at every input and load. |
| Cold-start inrush, typical |
70 A at 230 VAC; pulse width 150 µs measured at 50% of peak current. |
| Leakage current |
0.25 mA at 240 VAC. |
| Input-voltage derating |
At 60 Hz, the static-characteristic curve shows 80% load at 90 VAC, rising to 100% at 100 VAC; 100% is shown from 100 to 264 VAC. Apply the more restrictive thermal/load condition at the same time. |
| 16 A circuit-breaker reference |
At 230 VAC the catalog lists up to 17 units on a Type B 16 A circuit breaker, or 29 units on a Type C 16 A circuit breaker. Use this reference with the actual circuit and installation requirements. |
Protection and fault behavior
| Parameter |
Details |
| Short-circuit protection |
Short-circuit protection is listed among the model features. |
| Overvoltage protection |
20.7-24.3 V; output shutoff with zener-diode clamping. |
| Thermal operating limits |
Maintain the required ventilation and derate load as ambient temperature rises. Do not treat the upper ambient rating as a full-load rating. |
Environment and derating
| Parameter |
Details |
| Working ambient temperature |
-30 to +70°C, subject to the derating curve. |
| Cooling and temperature derating |
Free-air convection, with the horizontal orientation shown in the drawing. Full load is shown up to +45°C, then decreases linearly to 60% load at +70°C. Keep the input-voltage derating limit at the same time. |
| Altitude derating |
Above 2000 m (6500 ft), reduce the allowable ambient temperature by 3.5°C per 1000 m for this fanless design. |
| Working humidity |
20-90% RH, non-condensing. |
| Storage temperature / humidity |
-40 to +80°C; 10-95% RH. |
| Temperature coefficient |
±0.2%/°C over 0 to 50°C. |
| Vibration |
10-500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. |
| Enclosure |
Fully isolated plastic case, IP42 design. Observe the manufacturer installation instructions for the intended enclosure and environment. |
Dimensions, leads and installation
| Parameter |
Details |
| Body dimensions |
77 x 40 x 29 mm (L x W x H); drawing tolerance ±1 mm. |

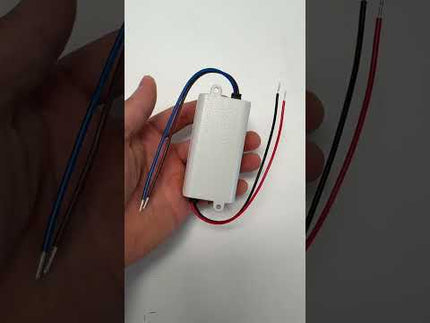

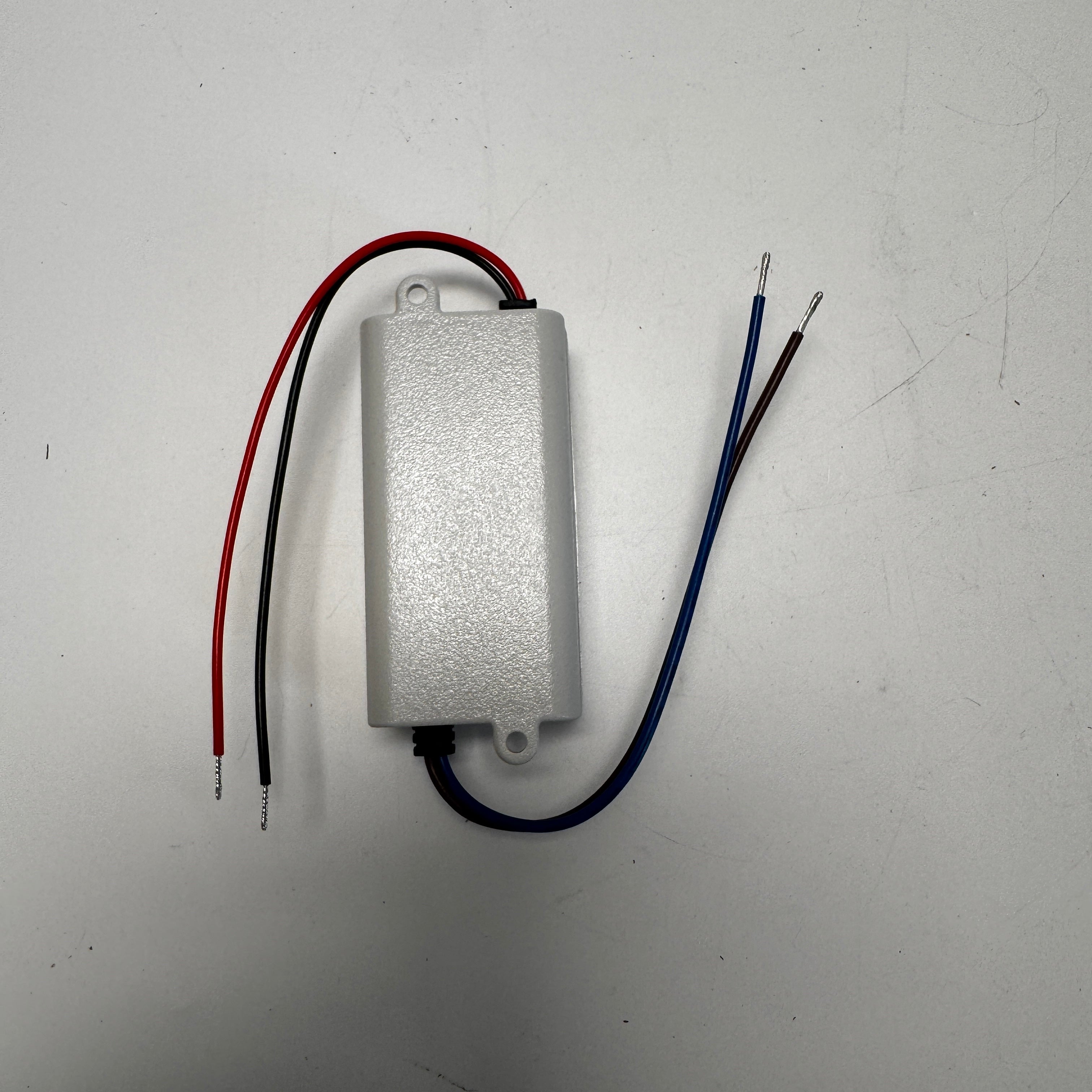

| Mounting outline |
The drawing shows 90 mm overall length across mounting tabs and 82.5 mm longitudinal mounting-center spacing. |

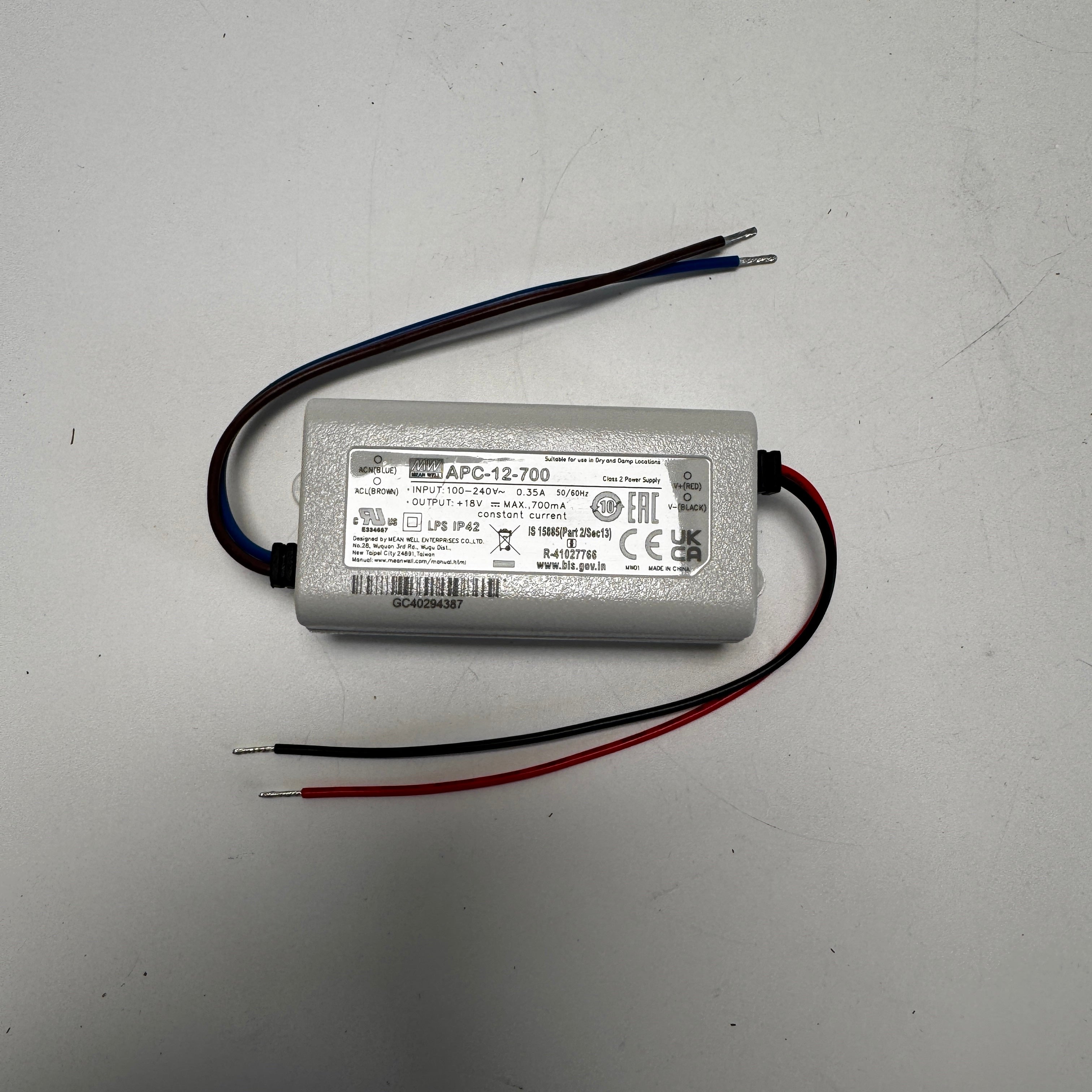

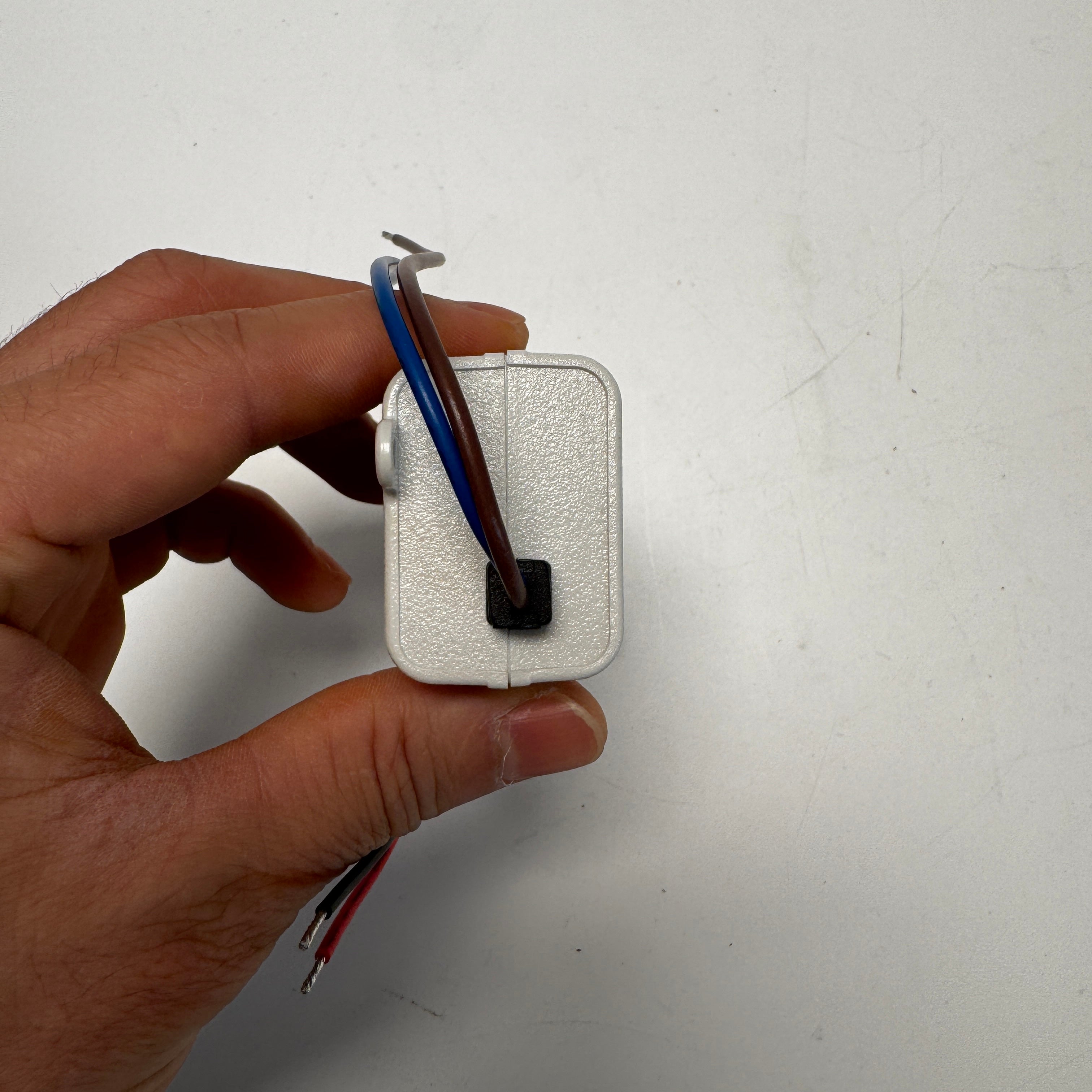

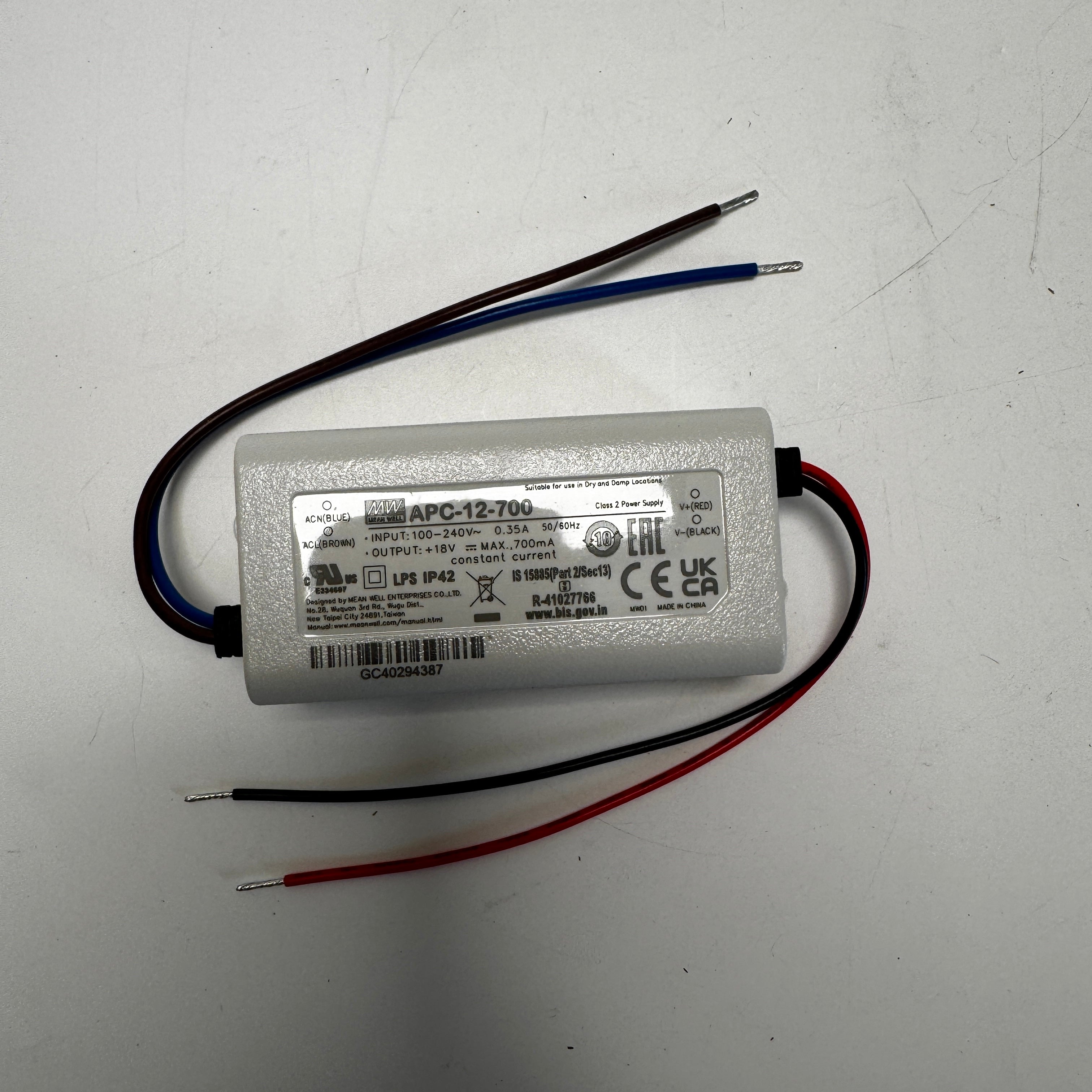

| Input leads |
UL1569, 18 AWG; 150 ±10 mm. Brown = AC/L; blue = AC/N. |

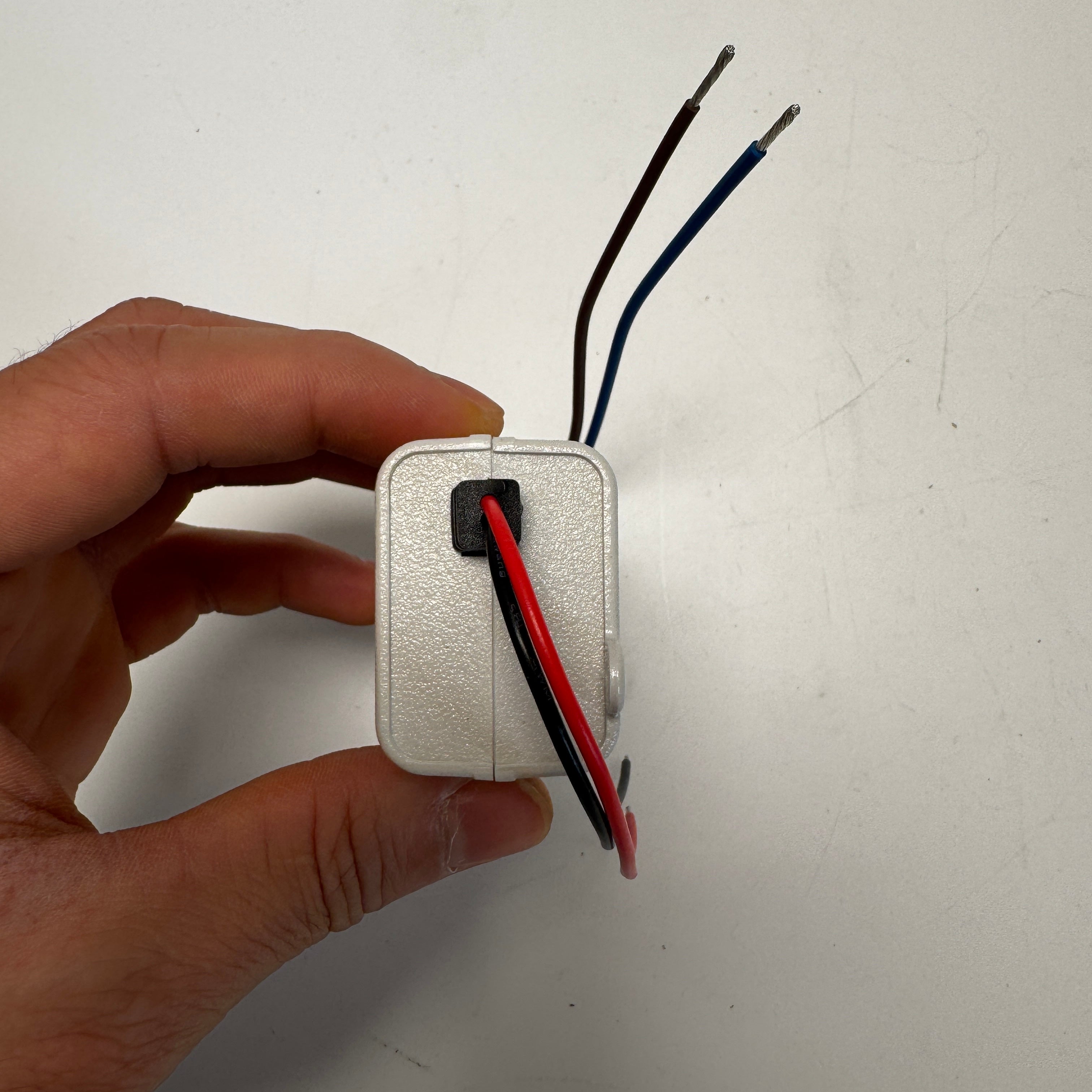

| Output leads |
UL1569, 20 AWG; 150 ±10 mm. Red = +V; black = -V. Match output polarity to the load. |
| DC-input polarity |
When using DC input, connect the brown L lead to the positive side and the blue N lead to the negative side. |
| Installation |
Class II design with no FG connection. Before installation or maintenance, disconnect the supply from the utility and prevent inadvertent reconnection. Keep proper ventilation around the unit and do not stack objects on it. When an adjacent device is a heat source, maintain 10-15 cm clearance. Keep lead-wire connections insulated and mechanically secured, and select approved cables rated for at least the unit current. Nonstandard mounting orientations or high ambient temperature require output-current derating. The installation manual limits APC/APV to equipment with a primary use other than lighting, such as copiers or overhead projectors, or to scale and display lighting; also observe the regional luminaire restriction above. |
| Case-temperature point |
The mechanical drawing identifies the tc / T case measurement point. Its location dimensions are not temperature limits. |
| Connection and mounting items |
This is a wired power-supply module. Select suitable connection and mounting hardware for the final equipment using the lead specifications and mechanical drawing above. |
Standards and catalog references
| Parameter |
Details |
| Listed safety approvals |
UL 8750, CSA C22.2 No.250.0-08, EAC TP TC 004, BS EN/EN 62368-1, BIS IS 15885. Select the actual supplied regional version and required markings for the installation. |
| Power-unit classification |
Class II insulation design; Class 2 power unit; LPS, as listed in the series features. Class II and Class 2 are different classifications. |
| Withstand voltage |
Input-to-output: 3.75 kVAC. |
| Insulation resistance |
Input-to-output: greater than 100 MΩ at 500 VDC, 25°C and 70% RH. |
| EMC emissions |
Compliance listed to BS EN/EN 55032, BS EN/EN 61000-3-2, BS EN/EN 61000-3-3 and EAC TP TC 020. |
| EMC immunity |
Compliance listed to BS EN/EN 55035 and BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; light-industry level with 2 kV surge. The completed installation still requires assessment. |

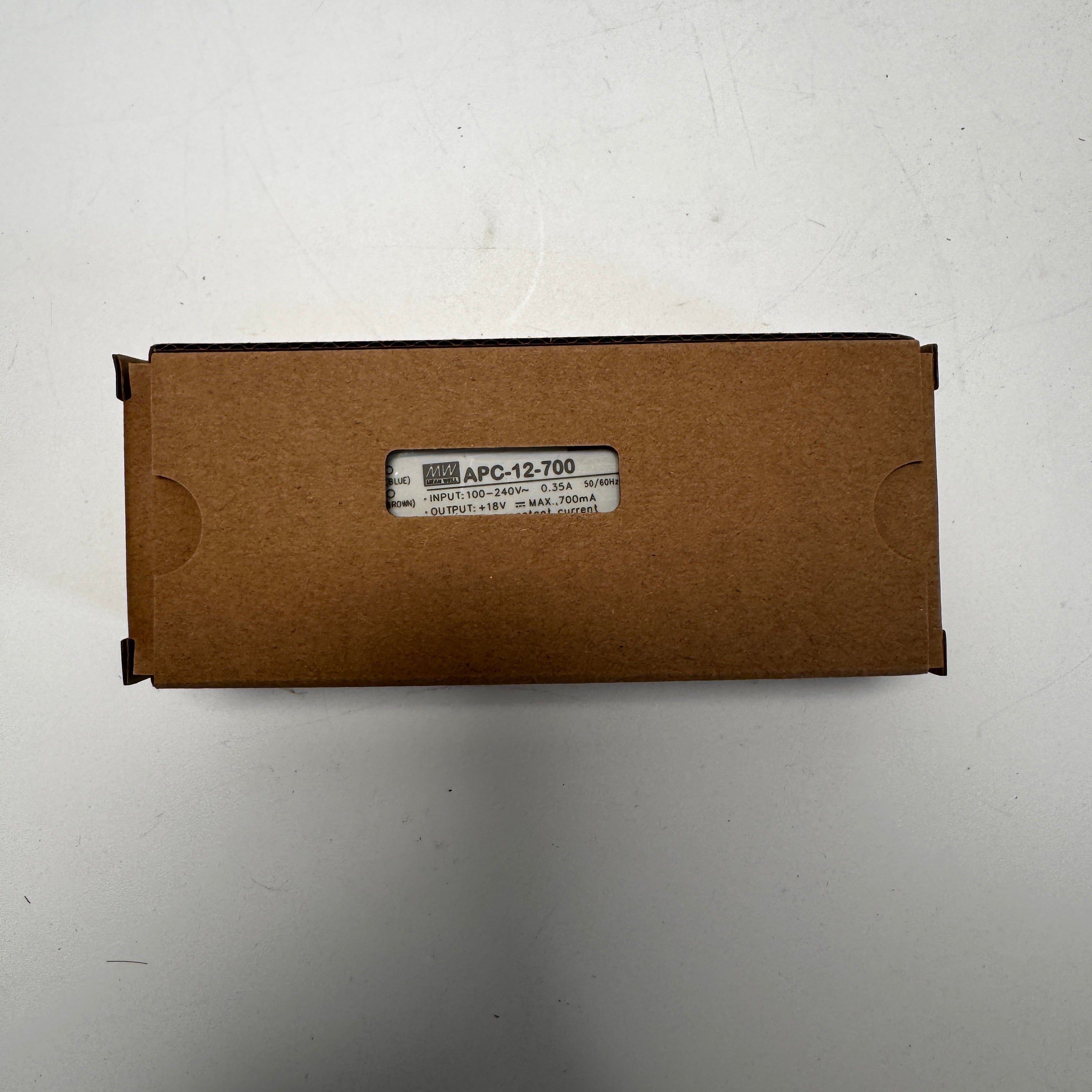

| Catalog mass reference |
80 g per unit (0.08 kg), from the PACKING field. This is the catalog packing reference per unit, not a measured net weight or a complete shipping-package weight. |
| Manufacturer catalog statement |
The manufacturer datasheet lists a two-year warranty and a 100% full-load burn-in test. |
