Description

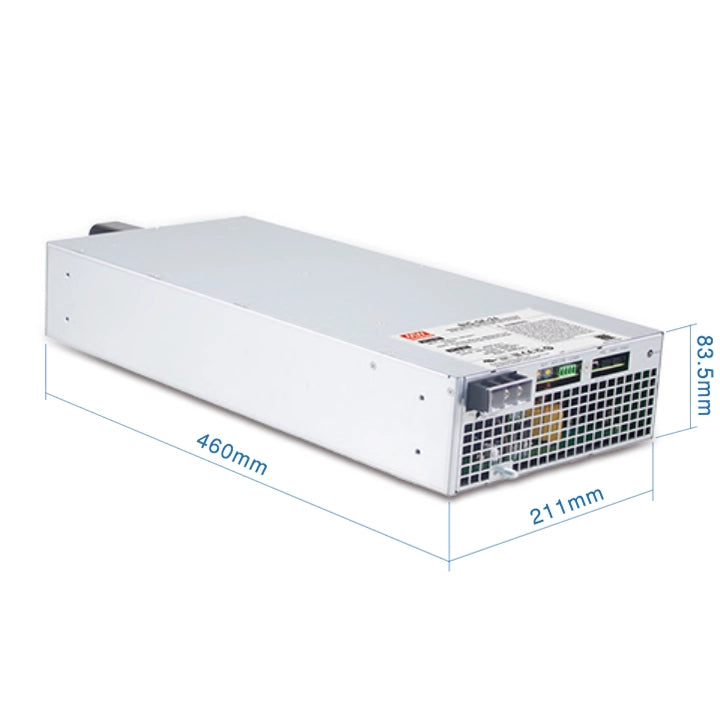

Output voltage: 24V Output current: 0 ~ 208A Rated power: 4992W Full power voltage range: 24~33V Input AC voltage: 180 ~ 305VAC Communication protocol: CANBus protocol, standard Size (mm):460X211X83.5
Click to download Airtac product catalog
Product Features
1. Combine AC→DC→AC bidirectional power converter, full power 5KW bidirectional operation, fast bidirectional switching response time 1ms(AC and DC).
2. Multi-domain global certification (ITE62368-1, power electronic converter 62477-1, AC power grid system 50549-1),180 ~ 305Vac(277Vac can be used), with an efficiency as high as 93%.
3. THD of the two conversion modes is less than 3%, and the parallel synchronous operation is as high as 30KW(5+1) units, supporting CAN Bus or MODBus-RTU(RS-485) protocol communication.
4. Protection function: active island protection, AC abnormal protection, DC overvoltage protection, overload protection, short circuit protection, over temperature protection.
5. Overvoltage category III (OVC III), wide operating temperature range of -30 ℃ ~ +70 ℃, fan noise <43 ~ 45db, support for 3-phase multi-unit matching, key PCB moisture-proof treatment, 5-year warranty.
