Description
Output LCD display: display the DC output voltage, current and status of each power supply Output LED indicator: green: power on/normal, red: fault/abnormal Input voltage: 85 ~ 264VAC;120 ~ 370VDC Input frequency range: 47~63Hz Input current: 0.6A/115VAC,0.4/230VAC Application: Energy Management Rack Expansion card (defined by application) Size (mm):483.6X66.3X132
Click to download Airtac product catalog
Product Features

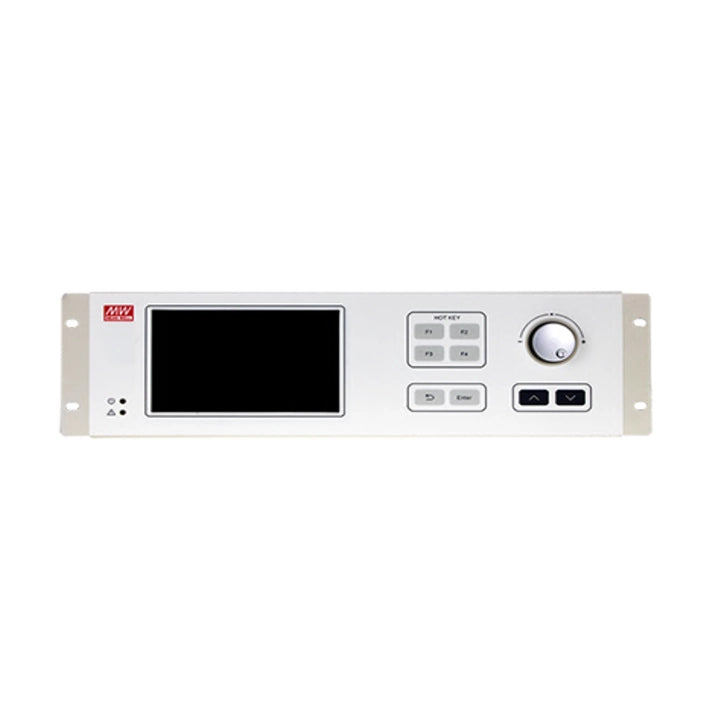

1. Integrated system of power supply system and power management, 3U 19-inch rack-mounted and independent configuration, two forms of choice.
2.7 "TFT LCD touch panel and keys are convenient for on-site operation. The Ethernet port is used for on-site connection or remote access to enable online monitoring and control of the system.
3. PMBus, CANbus RS-485 and RS-232 can be selected as communication interfaces, and data/event logs of date and time can be supported.
4. Maximum support 32G SDHC SD card, 4 set of programmable relays for monitoring or warning.
5. Provide monitoring/control UI for various application networks with 5-year warranty.
