| Brand and series |
MLS; CFA320A4. The manufacturer’s catalog carries the Forest Lighting name. |
| Model |
CFA320A4-BT01 |
| Technology |
COB LEDs on a flexible circuit board; a soft, continuous light appearance without visible light spots or dark areas. |
| Input voltage |
12V DC. Use a power supply matching this strip’s voltage. |
| LED density |
320 LEDs/m |
| Color temperature |
6000K |
| Power value (datasheet table) |
11; the power column does not state a unit. |
| Luminous flux (datasheet table) |
860 lm |
| Rating basis |
The table does not state the reference length for its power or luminous-flux entries. Confirm the load for the installed length before sizing the power supply; these entries are not specified as per-metre or whole-reel ratings. |
| Luminous efficacy (datasheet table) |
85 lm/W |
| Color rendering index |
CRI 90 |
| Light emission angle |
Up to 180° |
| Antistatic specification |
The catalog states HMB grade, 2000–4000V, under MIL-STD-883-e. |

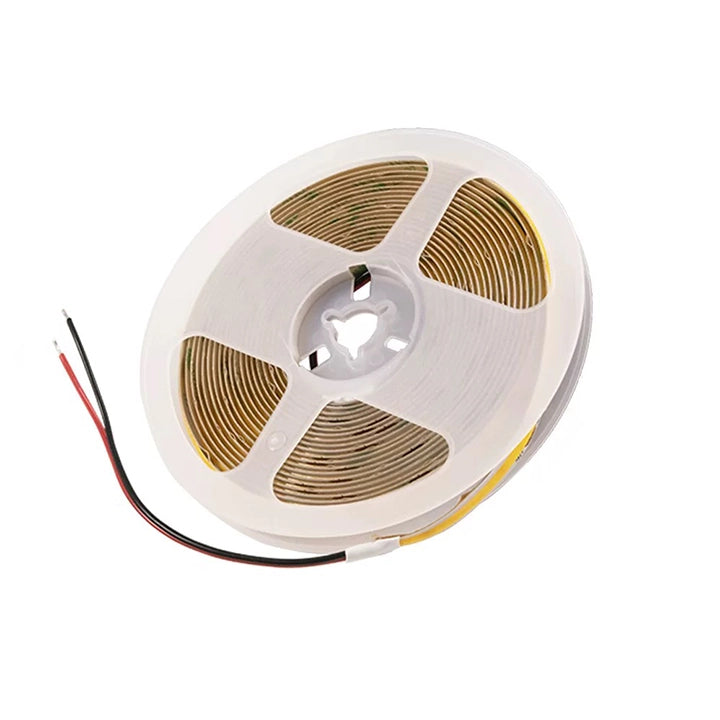

| Reel size |
5 m strip length; 8 mm strip width. |
| Cutting interval |
2.5 cm / 5 cm, as listed for this model. Cut and solder only at the marked cutting lines. |
| Protection and use |
IP20; for indoor decorative and commercial linear lighting. Do not use the IP65, IP67 or IP68 construction illustrations as ratings for this IP20 product. |
