MLS CFC320A4 series: COB LED strip - CFC320A4-BT01

Description

MLS CFC320A4-BT01 COB LED Strip

MLS CFC320A4-BT01 is a 24V DC flexible COB LED strip for indoor decorative and commercial linear lighting. It provides 6000K white light with 320 LEDs/m and CRI 90, in a 5 m reel that is 8 mm wide. This IP20 strip requires a compatible low-voltage power supply.

Download MLS CFC320A4 Datasheet (PDF)

Specifications: catalog page 2. Connections, construction and installation: pages 3–6.

Technical specifications

Parameter Details
Brand and series MLS; CFC320A4. The manufacturer’s catalog carries the Forest Lighting name.
Model CFC320A4-BT01
Technology COB LEDs on a flexible circuit board; a soft, continuous light appearance without visible light spots or dark areas.
Input voltage 24V DC. Use a power supply matching this strip’s voltage.
LED density 320 LEDs/m
Color temperature 6000K
Power value (datasheet table) 12; the power column does not state a unit.
Luminous flux (datasheet table) 1020 lm
Rating basis The table does not state the reference length for its power or luminous-flux entries. Confirm the load for the installed length before sizing the power supply; these entries are not specified as per-metre or whole-reel ratings.
Luminous efficacy (datasheet table) 85 lm/W
Color rendering index CRI 90
Light emission angle Up to 180°
Antistatic specification The catalog states HMB grade, 2000–4000V, under MIL-STD-883-e.

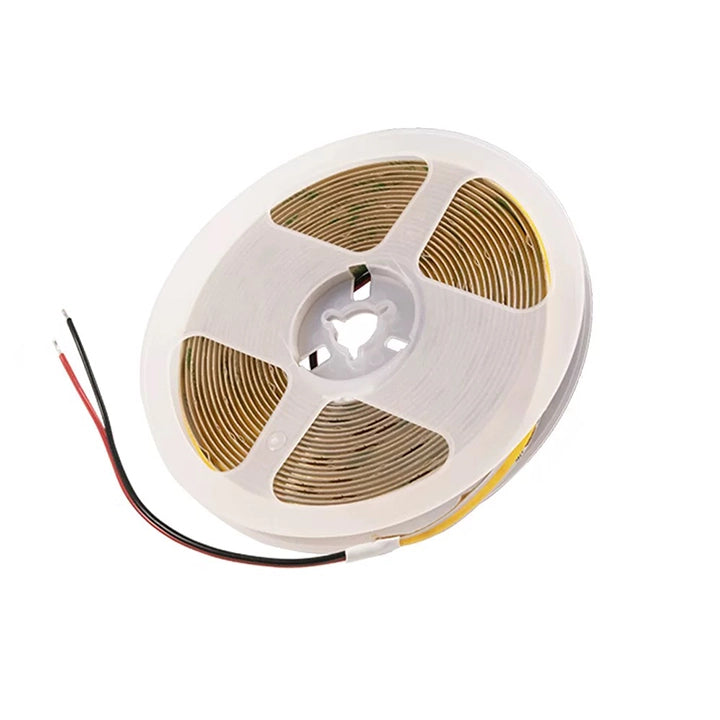

Reel size 5 m strip length; 8 mm strip width.
Cutting interval 5 cm, as listed for this model. Cut and solder only at the marked cutting lines.
Protection and use IP20; for indoor decorative and commercial linear lighting. Do not use the IP65, IP67 or IP68 construction illustrations as ratings for this IP20 product.

Installation and connections

Parameter Details
Drawing reference The 24V strip drawing shows a 150 mm lead, a 5000 mm strip and an 8 mm width. Check the supplied lead arrangement before installation.
Power connection A qualified person must connect the circuit. Match the actual +/− markings on both the strip and the 24V DC supply. Do not rely on wire color or the position of a terminal in an illustration.
Mains separation Use a suitable power supply/converter. Never connect the strip directly to a 110V or 220V mains supply.
Strip connections When using compatible connection clips, fully insert the strip so its solder pads align with the clip contacts, then secure the connection. The catalog shows both strip-to-strip and wired-end clips.
Mounting surface Clean the mounting surface before applying the adhesive backing.
Backing removal Peel the release liner while keeping the adhesive backing attached to the strip. Removing the backing from the strip can damage it.
Bending Keep the bending radius R > 5 mm and follow the bending direction illustrated in the catalog. Do not twist, crease or sharply fold the strip.
Packaging The catalog illustrates a reel in an anti-static bag, with bags packed in a carton.
Connection accessories Confirm clip compatibility and supply contents when ordering. The catalog does not give a separately orderable clip model or state that the illustrated clips or power supply are included.
