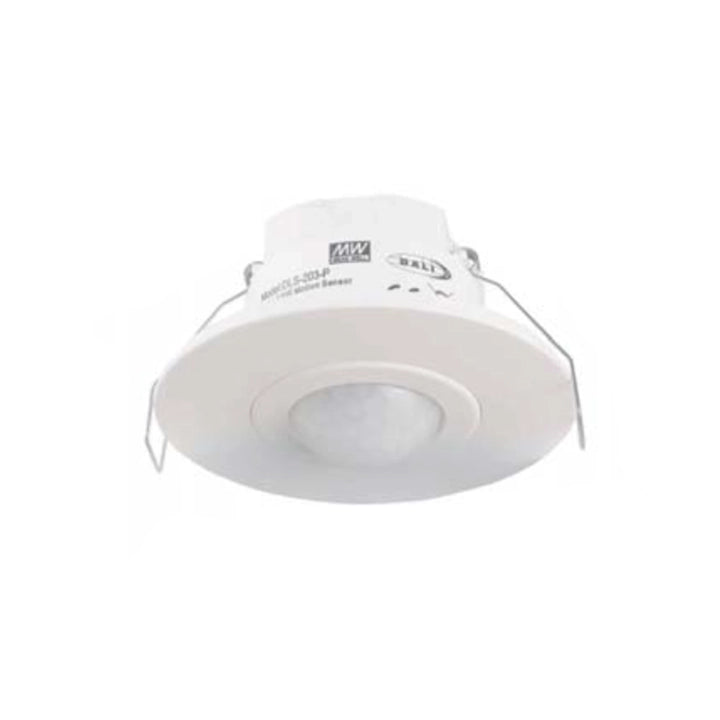

MEAN WELL DLS-203-P DALI-2 PIR Motion Sensor

MEAN WELL DLS-203-P is a DALI-2 PIR motion sensor with daylight measurement for indoor lighting. It is powered from the 9.5–22.5V DC DALI bus and is designed for ceiling flush mounting, typically at 3 m.

Download MEAN WELL DLS-2XX Datasheet (PDF)
Download MEAN WELL DLS-2XX User Manual (PDF)

Catalog specifications: page 2; mechanical drawings: pages 3–4; detection, system wiring and installation conditions: pages 5–7. Follow the user manual for mounting and commissioning.

Sensing and electrical specifications

Parameter	Details
Model	DLS-203-P
Model code	DLS identifies the DALI sensor series; 2 denotes DALI-2; 03 identifies the low-mounting type with a typical 3 m mounting height; P denotes PIR sensing.
Device function	DALI-2 input device combining passive infrared (PIR) motion detection with a built-in daylight sensor. It supplies detection information to a compatible DALI-2 lighting controller.
Bus supply	9.5–22.5V DC, powered directly from the DALI bus.
Current consumption	Typical current < 10 mA at 16V DC; maximum inrush current < 20 mA.
Start-up	A 10 s self-test starts at first power-up. External motion detection is disabled during this period.
Protocol and DALI standards	DALI-2 certified; compliant with IEC 62386-101, -103, -303 and -304.
Hold time	5 s sensor hold time plus the hold time configured in the DALI master.
Daylight measurement	2–65000 lux.
Factory defaults	Delay setting: 5 s; indicator light: ON.
Detection radius	3–4 m at a mounting height of 3 m, at 25°C, 100% sensitivity and tangential motion.
Motion detection	Detects movement from people or pets. The human movement signal described in the catalog is significant movement such as walking; detection is not a guarantee of stationary presence.
Detection conditions	The specified radius is based on 100% sensitivity and tangential movement at 25°C. The Fresnel lens detects tangential movement farther away than radial movement. Detection range may increase as temperature falls and decrease as temperature rises.

Mounting and dimensions

Parameter	Details
Mounting method	Ceiling flush mounting.
Mounting height	2–6 m; typical and recommended installation height: 3 m.
Ingress protection	IP20; indoor use only.
Ceiling opening	Ø55–65 mm.
Dimensions	Specification table: Ø89 × 34 mm. The mechanical drawing separately shows 33.50 mm behind the mounting plane and a 16.76 mm front projection; allow clearance for both sides. Drawing tolerance: ±1 mm.
Terminal layout	The drawing shows DALI− and DALI+ at the two marked outer contacts; use the marked DALI connection positions.
Catalog packing reference per unit	0.1 kg (100 g), from the catalog PACKING entry; not a measured net weight.

Environment and standards

Parameter	Details
Operating environment	−25 to +50°C; 10–85% RH. Indoor installation only.
Storage environment	−40 to +80°C; relative humidity ≤ 85%.
Safety standards	EN 60669-1; EN IEC 60669-2-1.
EMC standards	Emission: EN IEC 55015. Immunity: EN IEC 61547.

System integration

Parameter	Details
System compatibility	Use a DALI-2 controller that supports these input devices, such as MEAN WELL DLC-02. The catalog shows a lighting system with a controller, DALI LED drivers and DTP touch panels for switching, dimming and scene control.
Bus current budget	Check the complete system’s bus current and controller input-device limit. The DLC-02 example permits up to 12 input devices per channel, subject to available bus power: 250 mA − (64 drivers × 2 mA) = 122 mA; at 10 mA per input device, up to 12 fit this example.
Manufacturer warranty reference	The manufacturer states a 5-year warranty under normal use. Follow the manufacturer’s terms and do not replace parts or modify the product to retain warranty eligibility.

Installation and commissioning

Parameter	Details
Qualified installation	Installation and wiring must be performed by a licensed electrician with power disconnected. Use indoors only.
Sensor positioning	Avoid reflective objects directly in front of the sensor and locations with frequent temperature or airflow changes. Keep at least 2 m from strong electromagnetic sources such as Wi-Fi routers, security cameras and microwave ovens. Motion sensitivity may fall or become unresponsive near 36–37°C.
DALI bus connection	Connect to the polarity-free DALI bus using 0.5–1.5 mm² conductors (AWG 20–16). An additional independent DALI bus power supply is unnecessary when the application controller already provides bus power.
Controller commissioning	Lighting actions are configured through a compatible DALI-2 application controller. The DLC-02 example scans and pairs real lamps and input devices with their configured virtual devices, then downloads device parameters and effects. Example brightness levels, groups and time delays are application settings.
Flush mounting	Use a 55–65 mm ceiling opening in a ceiling no thicker than 20 mm. Connect the DALI wiring, fold the spring clips back, insert the sensor into the opening and check that it is securely seated.
