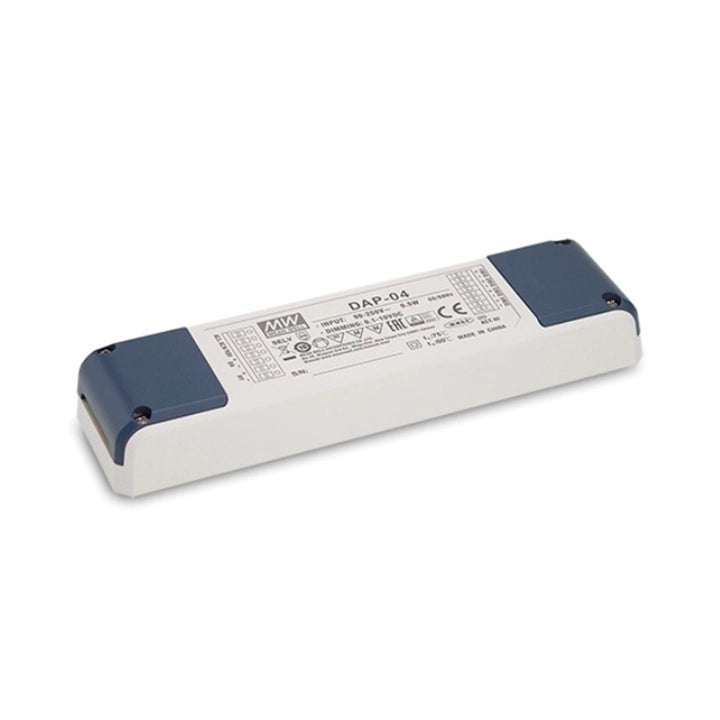

Description
Number of output channels: 4 Output signal: PWM,1KHz(Typ.) Output PWM Logic: High or Low Selectable with Jumper (Factory Set to High) @ Input dimming range: 1~100% Input voltage range: 90 ~ 305VAC or 127 ~ 431VDC [DC input can be realized by connecting AC/L(+),AC/N(-)] Standard type with ACT-HI function Size (mm):165X46X23
Click to download Airtac product catalog
Product Features
1. Full range AC input: 90 ~ 305VAC.
2. The DALI signal is converted into a PWM signal.
3, 4 DALI addressable output channels.
4. Built-in pressing dimming function.
5. Linear or logarithmic dimming curve is optional (refer to IEC62386-207).
6. Built-in LED power on/off control relay.
7. Dimming range: 1~100, two dimming functions are available: standard type: ACT-HI function; S01: The standard type has 4 or 1 DALI address selectable function.
8, 3 years warranty.
