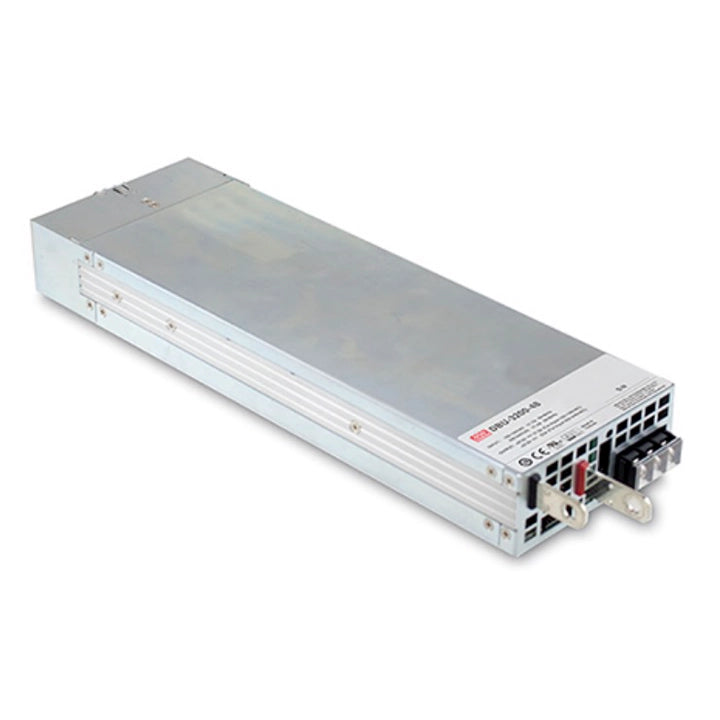

Description
Output average charge voltage Vboost (preset):28.8V Output float voltage Vfloat (preset):27.6V Constant current (CC)(default):0 ~ 110A Output voltage adjustment range: 23.5~30V, through the internal potentiometer, SVR Recommended battery capacity (AMP HOURS):330 ~ 1000Ah Battery leakage current (Typ.):1.5mA Input voltage: 90 ~ 264VAC,127 ~ 370VDC Size (mm):325.8X107X41 Communication protocol: PMBus protocol, standard product
Click to download Airtac product catalog
Product Features
1. International universal full range input: 90 ~ 264VAC.
2. Built-in preset three-stage programmable charging curve, which can be set by SBP-001.
3. The efficiency can reach up to 94.5, the high power density is 37W/in³, and the built-in DC fan is forced air cooling.
4. The output voltage and current value are adjustable, and the built-in OR-ing MOSFET supports hot swap.
5. Parallel connection can reach 6400W(DBU-3200)/12800W(NCP-3200).
6. It has I²C interface and PMBus communication protocol (CANBus protocol is optional).
7. Protection type: short circuit/overvoltage/overtemperature/battery low voltage/battery no connection.
8, optional spray moisture, can give lead-acid batteries, lithium batteries, 5 years warranty.
