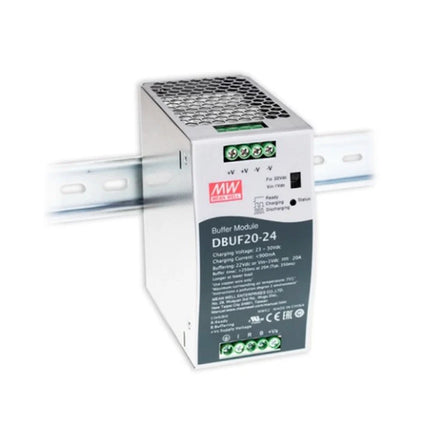

MEAN WELL DBUF series: rail type buffer module - DBUF20-24

Description

Guide rail type buffer module DC operating voltage range: 22 ~ 29VDC Buffer time: Output current: 0.1A,Typ.45s,Min.30s Working voltage: 24VDC Size (mm):63X125.2X114.9

Product Features

1, with electrolytic capacitors instead of lead-acid battery buffer.

2. Buffer time: 350ms @ 20A,250ms @ 40A.

Suitable for 24VDC system.

4. Buffer mode can be selected through the switch: fixed mode at 22Vdc, dynamic mode at Vin-1Vdc.

5. Support parallel connection, extend the buffer time.

6, -25 ~ +75 ℃ wide range of working temperature.

7. LED signal status indicator.

8, 3 years warranty.

MEAN WELL DBUF series: rail type buffer module - DBUF20-24

Product form

Guide rail type buffer module DC operating voltage range: 22 ~ 29VDC Buffer time: Output current: 0.1A,Typ.45s,Min.30s Working voltage: 24VDC... Read more

$186.43 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Guide rail type buffer module DC operating voltage range: 22 ~ 29VDC Buffer time: Output current: 0.1A,Typ.45s,Min.30s Working voltage: 24VDC Size (mm):63X125.2X114.9

    Product Features

    1, with electrolytic capacitors instead of lead-acid battery buffer.

    2. Buffer time: 350ms @ 20A,250ms @ 40A.

    Suitable for 24VDC system.

    4. Buffer mode can be selected through the switch: fixed mode at 22Vdc, dynamic mode at Vin-1Vdc.

    5. Support parallel connection, extend the buffer time.

    6, -25 ~ +75 ℃ wide range of working temperature.

    7. LED signal status indicator.

    8, 3 years warranty.
