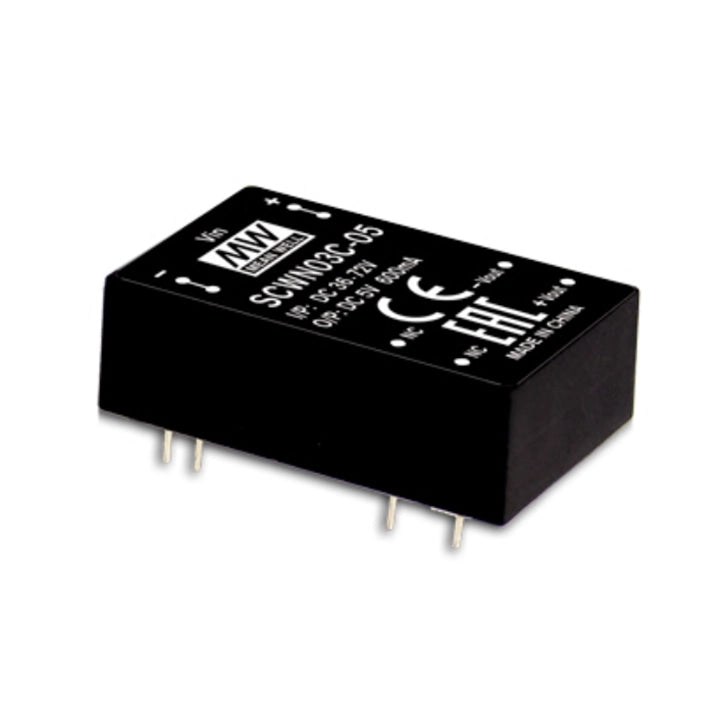

MEAN WELL DCWN03 Series: Regulated Voltage Converter - DCWN03C-05

Description

Series: Double group output Rated power: 3W Input voltage (range):48V(36~72V) Input current no-load 5mA, full load: 73mA Output voltage: ± 5V Output current: ± 0 ~ 300mA Efficiency (TYP.):85% Capacitive load (max):* 1000μF Size (mm):31.8X20.3X10.2

Click to download Airtac product catalog

Product Features

1. The DIP24 package has industry standard pins.

2, 2:1 wide input range, working temperature range -40~90 ℃, no minimum load.

3. Comply with BS EN/EN55032 radiation level A, no additional components are required, and the efficiency is as high as 87%.

4. Protection: short circuit (continuous)/overload/input undervoltage, 3KVDC input/output isolation, 3 years warranty.

MEAN WELL DCWN03 Series: Regulated Voltage Converter - DCWN03C-05

Product form

Series: Double group output Rated power: 3W Input voltage (range):48V(36~72V) Input current no-load 5mA, full load: 73mA Output voltage: ±... Read more

$18.86 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Series: Double group output Rated power: 3W Input voltage (range):48V(36~72V) Input current no-load 5mA, full load: 73mA Output voltage: ± 5V Output current: ± 0 ~ 300mA Efficiency (TYP.):85% Capacitive load (max):* 1000μF Size (mm):31.8X20.3X10.2

    Click to download Airtac product catalog

    Product Features

    1. The DIP24 package has industry standard pins.

    2, 2:1 wide input range, working temperature range -40~90 ℃, no minimum load.

    3. Comply with BS EN/EN55032 radiation level A, no additional components are required, and the efficiency is as high as 87%.

    4. Protection: short circuit (continuous)/overload/input undervoltage, 3KVDC input/output isolation, 3 years warranty.
