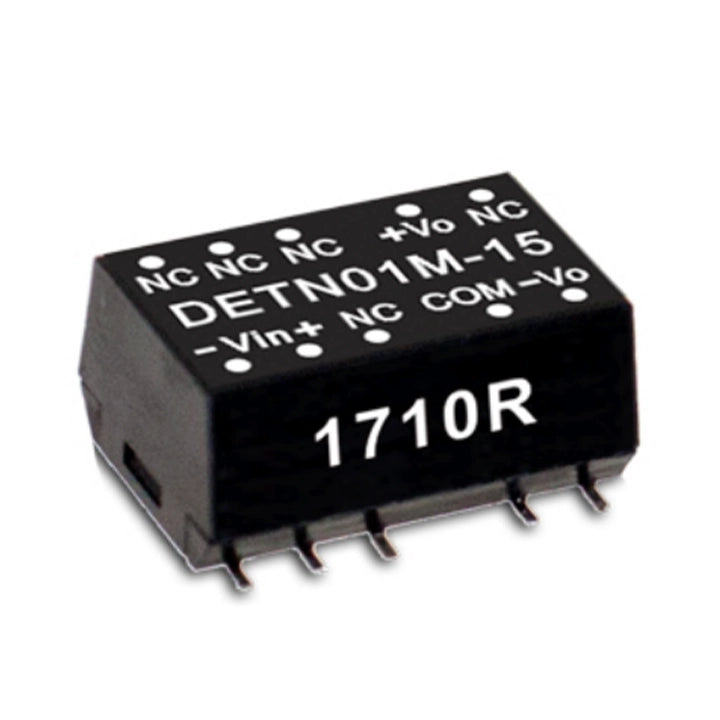

MEAN WELL DETN01 Series: DC-DC Unregulated Converter - DETN01L-15SC

Description

Rated power: 1W Input voltage (range):Normal 5V(4.5~5.5V) Input current no-load: 28mA, full load: 253mA Output voltage: ± 15V Output current: ± 3.4 ~ 34mA Efficiency (TYP.):80% Capacitive load (maximum):220μF Performance difference:-40 ~ +105 ℃ working temperature, continuous short circuit protection, optional Size (mm):15.24X10.9X7.1

Click to download Airtac product catalog

Product Features

1. SMD package has industrial standard pins, operating temperature range -40 ~ +90 ℃, conforming to BS EN/EN55032 radiation Class B, no additional components, and efficiency as high as 83%.

2. Protection: short circuit, 3KVDC input/output isolation, low cost, 3 years warranty.

MEAN WELL DETN01 Series: DC-DC Unregulated Converter - DETN01L-15SC

Product form

Rated power: 1W Input voltage (range):Normal 5V(4.5~5.5V) Input current no-load: 28mA, full load: 253mA Output voltage: ± 15V Output current:... Read more

$14.14 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Rated power: 1W Input voltage (range):Normal 5V(4.5~5.5V) Input current no-load: 28mA, full load: 253mA Output voltage: ± 15V Output current: ± 3.4 ~ 34mA Efficiency (TYP.):80% Capacitive load (maximum):220μF Performance difference:-40 ~ +105 ℃ working temperature, continuous short circuit protection, optional Size (mm):15.24X10.9X7.1

    Click to download Airtac product catalog

    Product Features

    1. SMD package has industrial standard pins, operating temperature range -40 ~ +90 ℃, conforming to BS EN/EN55032 radiation Class B, no additional components, and efficiency as high as 83%.

    2. Protection: short circuit, 3KVDC input/output isolation, low cost, 3 years warranty.
