MEAN WELL DETN02 series: 2W isolated DC/DC converter - DETN02N-15

Description

DETN02N-15 — 2W isolated DC/DC converter

MEAN WELL DETN02N-15 is a 2 W isolated, unregulated DC/DC converter in an SMD package. It accepts 21.6–26.4 VDC input (24 V nominal) and provides ±15 VDC dual output at 6–67 mA per rail. This standard version has time-limited short-circuit protection; observe the detailed protection conditions below.

Download MEAN WELL DETN02 Datasheet (PDF)
Download MEAN WELL EMI Testing Guidance (PDF)

DETN02 electrical, environmental, mechanical and packing specifications: PDF pages 41–45.

Output and model selection

Complete model / series DETN02N-15 / DETN02. Input code N: 24 V nominal; output code 15: ±15 V dual output. No suffix selects the standard version.
Conversion and rated power Isolated, unregulated dual output; 2 W total rated power. The positive and negative rails share this total; rounded current values do not increase the rated power.
Output voltage and current ±15 VDC relative to Common; 6–67 mA per rail. Observe the stated minimum load on each rail.
Efficiency 80% typical for this model; the series feature statement is up to 83%.
Maximum capacitive load 220 µF, as listed in the model-selection table.
Voltage accuracy ±2.0%.
Line regulation 1.2% for 1% input variation; measured from low line to high line at rated load.
Load regulation ±8%; measured from 10% to 100% rated load.
Ripple and noise 75 mVp-p. Measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
Switching frequency 100 kHz typical.
Specification conditions Normal input voltage, rated load, 25°C and 70% RH, unless otherwise specified.

Input, isolation and protection

Input voltage 24 VDC nominal; operating range 21.6–26.4 VDC.
Input current No load: 15 mA; full load: 104 mA.
Input surge 30 VDC for 100 ms maximum; this does not extend the continuous input range.
Input filter Internal capacitor.
Recommended input fuse 170 mA slow-blow fuse.
Internal power dissipation 500 mW.
Input/output withstand voltage 3 kVDC input to output.
Isolation resistance 100 MΩ between input and output, tested at 500 VDC, 25°C and 70% RH.
Isolation capacitance 80 pF typical.
Short circuit Standard version: 0.5 second maximum short-circuit duration.

Environment, reliability and compliance

Operating temperature and derating −40 to +100°C ambient, subject to the derating curve. Standard curve: 100% load through +90°C, 50% at +95°C and 40% at +100°C. The curve beyond +100°C does not extend the specified operating range.
Maximum case temperature +105°C maximum. The ambient range and derating curve do not override this case-temperature limit.
Cooling Free-air convection.
Working humidity 20–90% RH, non-condensing.
Storage temperature and humidity −55 to +125°C; 10–95% RH, non-condensing.
Temperature coefficient 0.03%/°C over 0–90°C.
Soldering Hot-air reflow only: peak 240°C for 10 seconds maximum; above 220°C for 60 seconds maximum. The separate soldering specification is 240°C maximum for 1–10 seconds, measured 1.5 mm from the case.
Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of the X, Y and Z axes.
Safety standards EAC TP TC 020/2011 approved, as listed in the specification.
EMC emission BS EN/EN55032 (CISPR32): radiated Class A without additional components; the conducted-emission entry is N/A.
ESD immunity BS EN/EN61000-4-2: Level 3, ±8 kV air; Level 2, ±4 kV contact.
Other immunity BS EN/EN61000-4-3: Level 2, 3 V/m; -4: Level 1, 0.5 kV at power; -5: Level 2, 0.5 kV line-to-line; -6: Level 2, 3 V (e.m.f.); -8: Level 1, 1 A/m.
External input capacitor for EFT and surge An external input filter capacitor is required to meet BS EN/EN61000-4-4 and BS EN/EN61000-4-5. The datasheet recommends 470 µF / 100 V.
MTBF 888,000 hours minimum, MIL-HDBK-217F at 25°C; a reliability estimate, not a warranty duration.
Warranty 3 years, as stated in the datasheet.

Mechanical details and packing

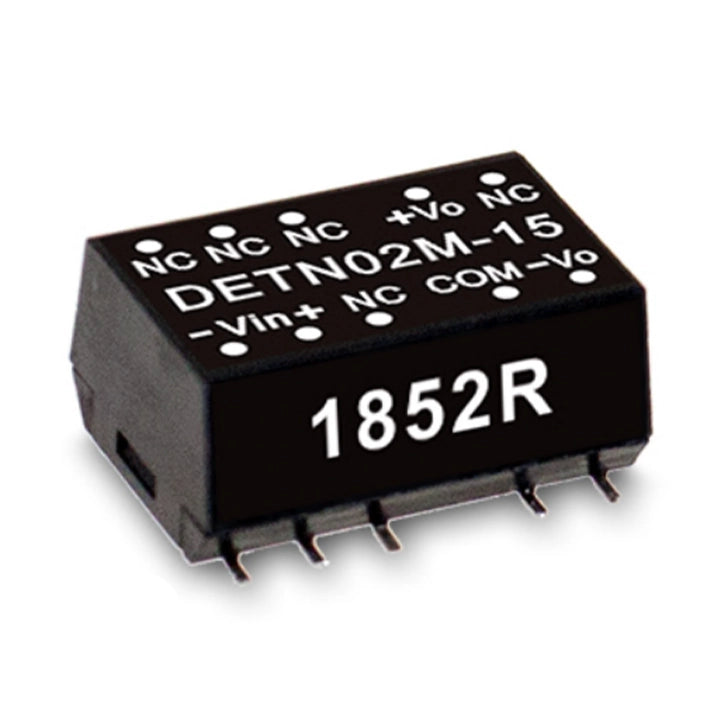

Construction SMD package with industry-standard pinout; non-conductive black plastic case, UL94V-0 rated. The manufacturer describes the series as low cost.
Dimensions 15.24 × 10.9 × 7.1 mm (L × W × H), as specified. The bottom-view drawing separately marks a 10.7 mm body width and 11.1 mm overall lead span; use the dimensioned drawing for PCB design. Additional side-view dimensions: 8.5 mm span and 6.7 mm body height; overall height remains 7.1 mm. Refer to the mechanical drawing on PDF page 44 for the dimension endpoints.
Pin assignment Pin 1 −Vin; pin 2 +Vin; pin 5 Common; pin 6 −Vout; pin 8 +Vout. Pins 3, 7, 10, 11 and 12 are N.C. Check the labeled top and bottom views before laying out the board.
Pin geometry and PCB pads 2.54 mm grid; 0.50 × 0.30 mm pins with ±0.07 mm tolerance; general x.x dimensions ±0.5 mm and x.xx dimensions ±0.25 mm. The top-view footprint marks 1.20 × 1.80 mm pads and a 12.00 mm outer pad span.
Unit weight 1.2 g per unit, as listed in the packing specification.
Standard tube packing 32 pieces per tube; 120 tubes / 3,840 pieces per carton. Tube gross weight 0.061 kg; carton gross weight 8.12 kg. Tube length 525 ±2 mm; carton 620 × 230 × 230 mm (L × W × H).
Optional reel packing 500 pieces per reel; 5 reels / 2,500 pieces per carton. One-box gross weight 1.3 kg; carton gross weight 7.3 kg. Inner box 355 × 338 × 50 mm; outer carton 380 × 290 × 370 mm (L × W × H).
Reel and carrier tape Reel diameter 330 mm, width 32 mm; tape W = 32 mm (+0.3/−0.1), A0 = 11.4 ±0.1 mm, B0 = 15.5 ±0.1 mm, K0 = 7.4 ±0.1 mm and P1 = 16 ±0.1 mm. Refer to the packaging drawing for orientation.
Packing reference Packing quantities and gross weights describe standard bulk packaging, not the quantity supplied by an individual product order.

Typical applications

Applications Telecom/datacom systems, wireless networks, industrial control facilities, instruments, analyzers, detectors and data switches; the series description also names telecommunications and distributed power architecture.

Installation and system verification

Complete-system EMC verification Verify EMC with the converter installed in the final equipment and connected to a representative load. Wiring, assembly and the application affect the result. Follow the model's specified EMC conditions and any required external components; the linked EMI testing guidance does not certify the finished equipment.
