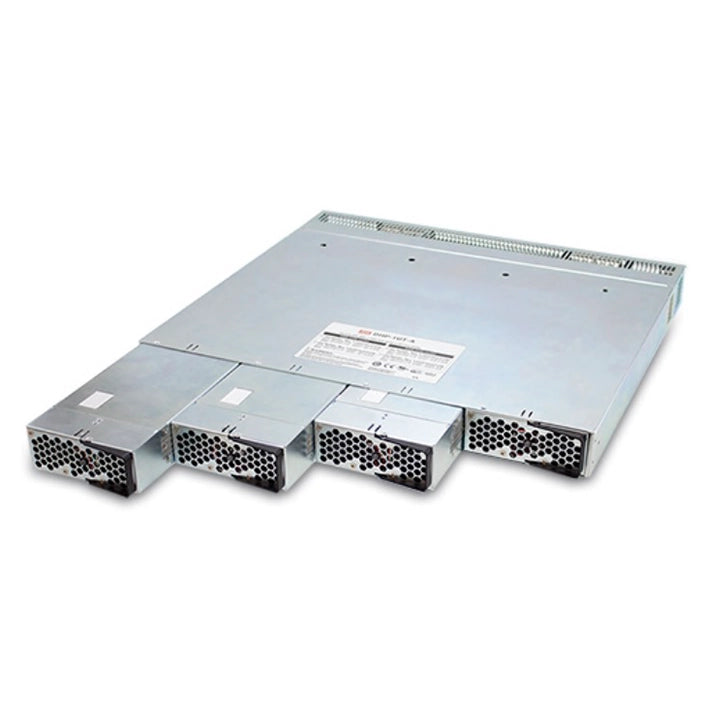

MEAN WELL DHP-1UT-BHV is a 1U, 19-inch terminal-block rack shelf for high-voltage NCP-3200-380 modules. The listed system ratings require the stated populated configuration; the rack alone does not generate those outputs. Select the modules and protocol configuration separately and confirm what is included in the order.
Product Datasheet
Download MEAN WELL DHP-1UT-B Datasheet (PDF)
The DHP-1UT-B section is on PDF pages 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43. Refer to the complete mechanical drawings and notes when planning installation.
Rack Identity and Configured System Ratings
| Product type |
1U, 19-inch rack shelf with terminal-block connections |
| Compatible module |
NCP-3200-380, including the CAN communication version |
| Module capacity |
1–4 identical modules per shelf |
| Rack-only reference weight |
4760 g |
| Configured output voltage |
380 V |
| Factory-default configured current |
33.6 A |
| Configured current range |
0–38.4 A |
| Configured maximum output power |
12825.6 W |
The electrical examples in this section use four identical modules connected in parallel. They describe configurations of this rack model, not separate rack ordering codes. The 4760 g value is the catalogue packing reference for one rack, not the mass of a populated four-module system or a measured shipping weight.
The HV suffix is specifically for 380 V modules. Use the correct HV rack; fitting a high-voltage module in the low-voltage rack can cause permanent damage. The maximum 12825.6 W must be observed together with the voltage-dependent current curve; 38.4 A is not available at every output voltage.
Input and Installation Limits
| Configured-system AC input |
90–264 VAC |
| Configured-system DC input |
127–400 VDC |
| Input frequency |
47–63 Hz |
| Typical input current per module |
17 A at 230 VAC |
| Leakage per module |
<2 mA at 230 VAC |
| Three- or four-module full-load ambient limit |
40°C |
The system leakage current depends on the number of installed modules. Do not treat the per-module input-current or leakage values as the total for a populated rack. All normal test values use 230 VAC, rated load and 25°C ambient unless otherwise specified.
Installed NCP modules require input derating: 50% load at 90 VAC, rising to 100% at 180 VAC and remaining at 100% to 264 VAC at 60 Hz. Their horizontal thermal curve is 80% at −30°C, 100% from −20 to +50°C, then 50% at +70°C; −30 to −20°C requires 230 VAC. The rack adds the stricter +40°C full-load limit when three or four modules are populated. Observe both module and rack limits and maintain front-to-rear airflow.
Output Voltage and Current Programming
| PV adjustment |
50–120% of the graph’s nominal reference voltage |
| PC adjustment |
20–100% of rated current |
| PV connection |
CN1 pin 26 to CN1 pin 24 (−V signal) |
| PC connection |
CN1 pin 25 to CN1 pin 24 (−V signal) |
PV applies to power supply operation. The graph uses 334 V as the 100% voltage reference. Below 0.4 V control input the output is at its factory setting; 0.4–1 V selects 50%, then the curve rises nonlinearly toward 400 V at approximately 4.7 V control input. The marked 4.37 V point corresponds to the 380 V factory output.
Available output current changes with the voltage setting: 80% from 50–90% output voltage, rising to 100% at 95%, then remaining at 100% through 100% voltage. Above that, current decreases to 83.3% at 120% voltage (400 V). The graph’s 100% current reference is 38.4 A. Always keep output within the maximum power limit.
For PC, 0.4–1 V control input corresponds to 20% current; the nonlinear rising region reaches 100% at 4.7 V and remains at 100% to 5 V. The plot below 0.4 V is an approximately 110% limiting region, not an additional rated operating range. Very low constant-current settings can increase ripple.
Parallel Racks and Communication
| Maximum parallel assembly |
10 rack shelves / 40 identical modules |
| Output-voltage matching |
Less than 0.2 V difference |
| Recommended current reduction |
10% of the summed module current |
| PMBus configuration |
Revision 1.1, maximum 100 kHz |
| CANBus configuration |
CAN 2.0B; catalogue speed printed as maximum 250 KHz |
Select the communication protocol through the installed module ordering codes and compatible control arrangement. The rack provides the interconnections; the generic rack model is not a promise that unlike protocol modules can be mixed.
Parallel operation requires identical models and output-voltage/current settings. Configure the shelves in parallel before connecting the common load; do not connect each shelf independently to the load first. Join DA, DB and −V control signals, with twisted +S/−S wiring where the low-voltage PSU sense function applies. Long cables can inject noise; use the appropriate termination accessory in an unused JK1 connection.
The catalogue example is eight NCP-3200-24 modules in two shelves: 133 A × 8 × 0.9 = 957.6 A recommended total. This reduction helps avoid unequal current limiting caused by component tolerance. Under multiple-rack operation, light-load ripple may be higher; the parallel-operation note specifies a return to normal above 10% of total rated load.
CN1 Control Connector
| Header |
HRS DF11-26DP-2DS |
| Mating housing |
HRS DF11-26DS or equivalent |
| Contact family |
HRS DF11-**SC or equivalent |
| Pins 1, 5, 9, 13 |
AC-OK for modules A, B, C, D |
| Pins 2, 6, 10, 14 |
DC-OK for modules A, B, C, D |
| Pins 3, 7, 11, 15 |
Remote ON-OFF for modules A, B, C, D |
| Pins 4, 8, 12, 16 |
T-ALARM for modules A, B, C, D |
| Pins 17–20 |
NC; reserved |
| Pin 21 |
+5V-AUX: 4.5–5.5 V, 0.3 A maximum |
| Pin 22 |
GND-AUX; isolated signal return |
| Pin 23 |
+12V-AUX: 10.8–13.2 V, 0.8 A maximum |
| Pin 24 |
−V signal; non-isolated control reference, not a load terminal |
| Pin 25 / pin 26 |
PC / PV |
DF11-**SC is a contact-family entry with an unspecified suffix. Select the actual contact for the wire assembly instead of treating the wildcard as a complete order code.
For whole-rack control, connect the four ON/OFF signals to +5V-AUX through the control switch; individual switches can control the four modules separately. Short / 4.5–5.5 V is ON, open / −0.5 to +0.5 V is OFF; maximum input is 5.5 V. An open ON/OFF connection gives no main output.
AUX ratings are 5 V at 0.3 A, ±10%, 150 mVp-p ripple and 12 V at 0.8 A, ±10%, 450 mVp-p ripple. These are the listed auxiliary-system values, not four times those values. The +12V-AUX path has OR-ing diodes and is not controlled by remote ON/OFF.
CN2 Sense and JK1 Interconnections
| CN2 header |
JST SM04(4.0) B-BHS-1-TB |
| CN2 mating housing |
JST BHR-04VS-1 or equivalent |
| CN2 contact |
JST SBH-001T-P-0.5 or equivalent |
| CN2 pins 1, 2, 3, 4 |
+S, −S, +V signal, −V signal; 24 V / 48 V PSU mode only |
| JK1 |
RJ45, 8 positions |
| JK1 pins 1, 2 |
DA, DB parallel-control signals |
| JK1 pin 3 |
−V signal; control reference, not a load terminal |
| JK1 pin 4 |
CONTROL; remote ON-OFF in the PMBus interface |
| JK1 pin 5 |
+5V-AUX in the PMBus interface |
| JK1 pin 6 |
SDA for PMBus / CANH for CANBus |
| JK1 pin 7 |
SCL for PMBus / CANL for CANBus |
| JK1 pin 8 |
GND-AUX |
Non-isolated parallel/control signals reference −V signal; isolated communication and control signals reference GND-AUX. Follow the numbered rear-view connector drawings. The RJ45 shape does not make this an Ethernet port. The HV configuration has no low-voltage remote-sense function; do not use the CN2 sense diagram as a 380 V wiring instruction.
Signals and Status Indicators
Alarm outputs are isolated TTL, referenced to GND-AUX, output-only and rated 10 mA maximum. High is 3.5–5.5 V and low is −0.5 to +0.5 V. AC-OK is high at input ≥87 Vrms and low at ≤75 Vrms. T-ALARM is high for temperature alarm or fan failure, and low during normal operation.
In power supply mode, DC-OK is high when output is ≤77% ±5%, and low when output is ≥80% ±5%.
The status LED is green during normal power supply operation and steady red for abnormal protection/fan status. Flashing red at an internal temperature of 60°C signals an alarm while normal operation continues without entering OTP.
Protection of the Populated System
Protection is provided by the installed NCP modules. In PSU operation, overload is 105–115% rated current with constant-current limiting followed by shutdown after 5 seconds; re-power after the output falls to recover. Output below 80% of Vset for 5 seconds also shuts down. Overtemperature shuts down output and recovers automatically after cooling.
For the 380 V modules, overvoltage shutdown is specified at 420–480 V; re-power to recover.
The modules include OR-ing isolation and support hot swap. Use the rack installation procedure and the correct voltage-class rack. The protection functions do not remove the need for correctly rated external wiring and system protection.
Mechanical Installation and Accessory List
| Dimensions without mounting brackets |
400 × 440 × 44 mm |
| Dimensions with mounting brackets |
400 × 482.6 × 44 mm |
| Case drawing |
257B; general dimensional tolerance ±0.5 mm |
| Mounting screw specification |
M4; maximum penetration 4 mm; recommended torque 7–10 kgf·cm |
| DC terminal screws |
Four M8 L=16 positions as shown |
| Remote-control mating wire, CN1 |
Catalogue quantity 1; UL1061, 28 AWG, 15 mm loop dimension |
| Remote-sense mating wire, CN2 |
Catalogue quantity 1; UL1007, 26 AWG, 15 mm loop dimension |
| PMBus termination, JK1 |
Catalogue quantity 1; black/white wires |
| CANBus termination, JK1 |
Catalogue quantity 1; black/red wires |
| Output-terminal screws |
Catalogue accessory quantity 4 |
The 19-inch mounting drawing gives 466.2 mm between the front fixing positions, 7 × 10.2 mm slotted openings and 29.3 mm handle projection. Use the depicted M4 locations and the maximum penetration limit; maintain clearance for the rear AC terminal blocks, control plugs and output connections.
Viewed from the front, the four module positions are D, C, B and A from left to right. The airflow arrow runs from the front modules toward the rear. Each installed module has its own status indicator and SVR adjustment access.
The accessory page lists the mating wires, protocol-specific termination plugs and output-terminal screws by item name and quantity, without unique wire-kit/termination ordering codes. Confirm the supplied items and choose the termination appropriate to the installed protocol.
Environment and Reliability
| Operating ambient |
−30 to +70°C, subject to input and thermal derating |
| Operating humidity |
20–90% RH, non-condensing |
| Storage |
−40 to +85°C; 10–95% RH, non-condensing |
| Temperature coefficient |
±0.03%/°C from 0 to 50°C |
| Vibration |
10–500 Hz, 2G; 10 minutes/cycle, 60 minutes each along X, Y and Z |
| Minimum calculated MTBF |
3698.9 thousand hours, Telcordia SR-332; 818.3 thousand hours, MIL-HDBK-217F at 25°C |
| Manufacturer warranty |
5 years |
For fan-cooled operation above 2000 m, reduce permissible ambient temperature by 5°C per additional 1000 m. This derating note does not establish a maximum operating altitude.
Safety and EMC
| Dielectric withstand |
Input/output: 3 kVAC; input/FG: 2 kVAC; output/FG: 1.5 kVDC |
| Insulation resistance |
100 MΩ between input/output, input/FG and output/FG; 500 VDC, 25°C, 70% RH |
| Conducted / radiated emissions |
BS EN/EN 55032 (CISPR32): Class B conducted / Class A radiated |
| Harmonic current / voltage flicker |
BS EN/EN 61000-3-2 Class A / BS EN/EN 61000-3-3 |
The power supply specification lists UL 62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN 62368-1 and EAC TP TC 004 approvals, with design referring to AS/NZS 62368.1. RCM is voluntary under the referenced IEC/AS/NZS requirements. These component qualifications do not certify the completed installation.
Immunity references BS EN/EN 55024 and 61000-6-2, with tests under 61000-4-2/-3/-4/-5/-6/-8/-11: ESD 8 kV air and 4 kV contact; radiated RF, EFT/burst and conducted RF Level 3; surge 2 kV line-to-line and 4 kV line-to-earth; magnetic field Level 4. Voltage dips are >95% for 0.5 period and 30% for 25 periods; interruptions are >95% for 250 periods.
The catalogue EMC arrangement mounts the component on a 1000 × 1300 mm metal plate, 2 mm thick. Reconfirm compliance in the final equipment.
