DKA20W8-12 — Isolated dual-output DC-DC converter

MEAN WELL DKA20W8-12 is an isolated, regulated dual-output DC-DC converter accepting 9–75 V DC. It provides ±12 V DC relative to COM with 833 mA per rail. It uses an 8:1 input range and a shielded 2 × 1 inch package; no minimum load is required.

Download MEAN WELL DKA20W8 Datasheet (PDF)

Series section: PDF pages 64–71.

Model and output specifications

Output voltage ±12 V DC relative to COM.
Rated output current 833 mA per output rail.
Series power and load limit 20 W series. The stated current limit also applies; do not infer a higher output current from the series wattage.
Minimum load No minimum load is required.
Voltage accuracy ±2.0%
Line regulation ±0.5%; low-to-high input at rated load.
Load regulation ±0.5%, measured over 0–100% load.
Ripple and noise 150 mVp-p. Measured at 20 MHz bandwidth with a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
Switching frequency 200 kHz PWM typical.
Maximum capacitive load 100 µF for each output.
Cross regulation ±5.0% with one output varied over 25–100% load.

Input, control and protection

Input voltage 9–75 V DC; 8:1 range. Nominal inputs listed are 12, 24, 36, 48 and 72 V; specification test input is 24 V.
Input current 20 mA at no load; 947 mA at full load.
Typical efficiency 88% at the reference conditions.
Input filter and fuse Pi filter. The manufacturer recommends a 6 A slow-blow external fuse; select protection for the actual input current and installation.
Input surge withstand 100 V DC for 100 ms maximum.
Undervoltage lockout Typical values: start-up 8.8 V; shutdown 7.5 V.
Overload protection 110–230%; automatic recovery after removal of the fault.
Short-circuit protection Continuous protection with automatic recovery.
Output overvoltage protection Clamped by TVS.
Remote ON/OFF By request; confirm that the supplied configuration includes this function. Referenced to −Vin: >2.5–30 V or open circuit turns the output ON; <1 V or a short circuit turns it OFF.
Remote-control configuration Although the series overview and mechanical drawing show remote control, the protection specification labels it “By request”. Confirm the ordered configuration before using pin 3.

Operating conditions and isolation

Operating temperature and cooling −40 to +90°C; free-air convection. Apply the load-derating limits.
Load derating Full load through 80°C; 50% load at 90°C.
Maximum case temperature 110°C.
Working humidity 5–95% RH, non-condensing.
Storage conditions −55 to +125°C; 10–95% RH, non-condensing.
Temperature coefficient ±0.03%/°C over 0–80°C.
Vibration 10–500 Hz, 2G; 10 minutes per cycle for 60 minutes along each of the X, Y and Z axes.
Reference test conditions 24 V DC input, rated load, 25°C and 70% RH, unless otherwise stated.
Input-to-output withstand voltage 3 kV DC.
Isolation resistance 1000 MΩ.
Isolation capacitance 1000 pF typical.

Mechanical design and installation

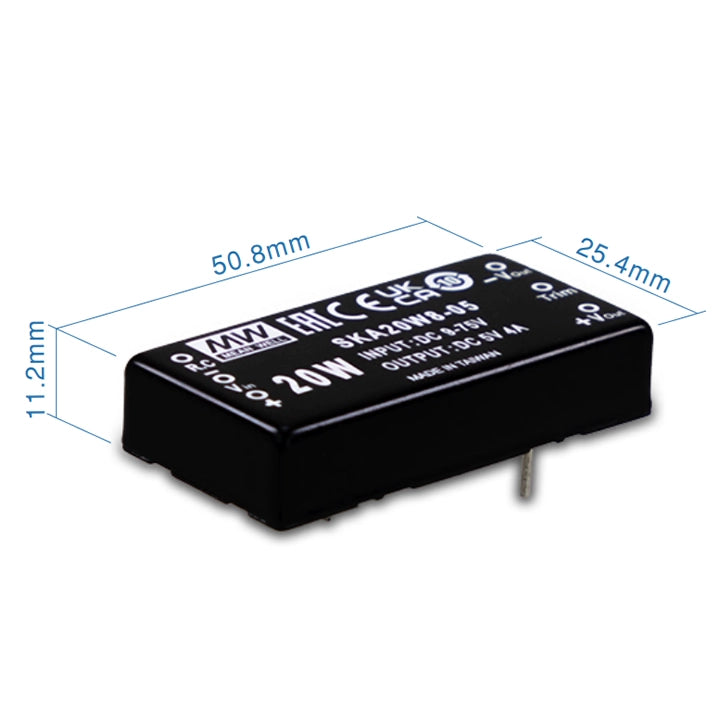

Dimensions 50.8 × 25.4 × 11.2 mm (L × W × H).
Case construction Metal case with shielding on all six sides.
Pin assignment 1 +Vin; 2 −Vin; 3 Remote ON/OFF (by request); 4 −Vout; 5 COM; 6 +Vout. Check the bottom-view orientation before PCB assembly.
Mechanical drawing details Pin diameter 1 ±0.1 mm; lead length 5.8 mm. Recommended PCB hole Ø1.2 mm (+0.2/−0 mm). General drawing tolerance ±0.5 mm.
Unit weight reference 31 g, explicitly stated as a catalog packing reference per unit.
Soldering 3–5 seconds at 265°C maximum, measured 1.5 mm from the case.

EMC and manufacturer references

Safety and catalog references EAC TP TC 020/2011 approved.
EMC emission BS EN/EN 55032 radiated Class A without additional components; Class B with external components. Conducted emission is listed as N/A in the specification.
EMC immunity 8 kV air, Level 3; 4 kV contact, Level 2 under BS EN/EN 61000-4-2; -4-3: 3 V/m, Level 2; -4-4: 0.5 kV, Level 1; -4-5: 0.5 kV line-to-line, Level 2; -4-6: 3 V emf, Level 2; -4-8: 1 A/m, Level 1.
MTBF reference >600 khrs to MIL-HDBK-217F at 25°C; a reliability reference, not a service-life guarantee.
Manufacturer warranty reference The catalog states a 3-year manufacturer warranty.
Class B EMC reference circuit F1: 6 A slow-blow fuse; C1: 47 µF/100 V; C2: 2.2 µF/100 V, MLCC 1210; C3/C4: 1000 pF/5 kV MLCC; L1: 325 µH common-mode choke. Follow the complete reference circuit and verify the final equipment.
