DKA30A-12 — Isolated dual-output DC-DC converter

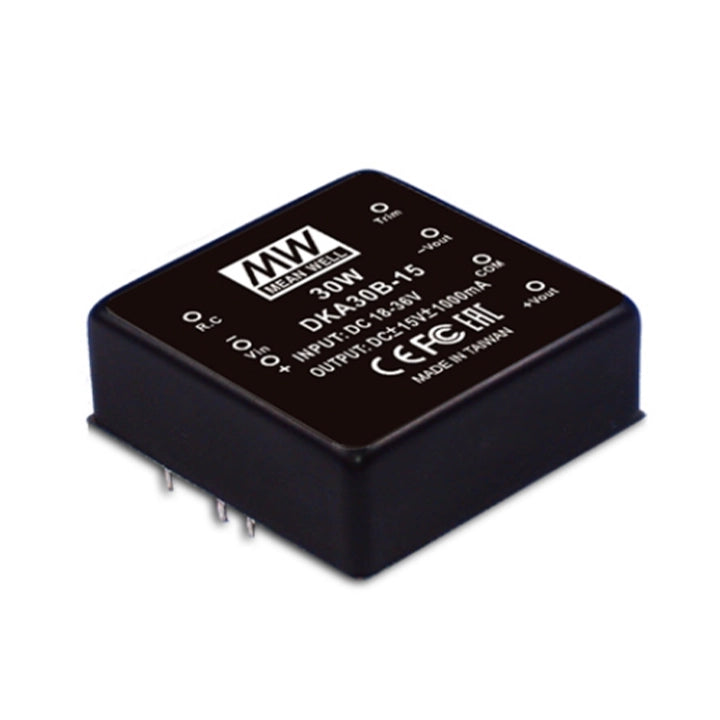

MEAN WELL DKA30A-12 is an isolated dual-output DC-DC converter accepting 9–18 V DC. It provides ±12 V DC relative to the Common return, with 30 W total rated output power. The specified current range is 125–1250 mA per output rail; maintain the minimum loads and the combined power limit. Its 2 × 2 inch metal package provides 1.5 kV DC input-to-output isolation. Remote ON/OFF control is provided.
Download MEAN WELL DKA30 Datasheet (PDF)Series section: PDF pages 12–13.
Model and output specifications
| Complete model |
DKA30A-12 |
| Model selection |
DKA30 identifies the dual-output series. Input code A selects 9–18 V DC. Output code 12 selects ±12 V DC. |
| Output voltage |
±12 V DC relative to Common. Positive and negative output rails share the Common return. |
| Output current range |
125–1250 mA per output rail. Maintain the stated minimum current on each output. |
| Rated power and load limit |
30 W total across all two output rails. Observe every rail current limit and the combined output-power limit together. |
| Voltage accuracy |
±2.0%. |
| Line regulation |
±0.5%, measured from low to high input voltage at rated load. |
| Load regulation |
±0.5%, measured over 10–100% of rated load. |
| Ripple and noise |
100 mVp-p maximum, measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. |
| Switching frequency |
100 kHz minimum. |
Input and protection
| Input voltage |
9–18 V DC; 2:1 input range. |
| Input current |
3.2 A at full load; 40 mA at no load, at the reference test conditions. |
| Typical efficiency |
80% at the reference test conditions. |
| Input filter and protection |
Built-in EMI filter with a Pi network. An external input fuse is recommended. |
| Overload protection |
110–250% of rated output power; hiccup mode with automatic recovery after the fault is removed. |
| Short-circuit protection |
All outputs are protected; hiccup mode with automatic recovery after the fault is removed. |
| Fault-duration limit |
Do not allow operation in overload or short circuit for more than 30 seconds. |
| Optional configurations |
The catalog lists a 4:1 input-range option. The stated specifications for this model are 2:1 and 1.5 kV DC; confirm the optional configuration with the manufacturer before selection. |
Control and adjustment
| Remote ON/OFF control |
R.C. is referenced to −Vin. The stated power-ON condition is >4.5–5.5 V DC or open circuit; power OFF is below 0.8 V DC or short circuit to −Vin. Follow the specified control conditions. |
| External output trim |
±10% adjustment. Connect a trim resistance between Trim pin 8 and −Vout pin 7 to raise the output, or between Trim pin 8 and +Vout pin 5 to lower it. A 500 kΩ trimpot example is shown in the complete circuit diagram. Observe per-rail current and combined power limits when adjusting. |
Operating conditions and isolation
| Operating temperature and cooling |
−40 to +85°C, with free-air convection and the specified load derating. |
| Load derating |
Full load through 71°C; reduce to 80% load at 85°C. Apply the curve only within the specified operating range. |
| Working humidity |
20–90% RH, non-condensing. |
| Storage conditions |
−40 to +105°C; 10–95% RH. |
| Temperature coefficient |
±0.03%/°C over 0–50°C. |
| Vibration |
10–500 Hz, 2G; 10 minutes per cycle for 60 minutes along each of the X, Y and Z axes. |
| Reference test conditions |
Normal input, rated load, 25°C ambient and 70% RH, unless otherwise stated. |
| Input-to-output withstand voltage |
1.5 kV DC. |
| Isolation resistance |
100 MΩ at 500 V DC, 25°C and 70% RH. |
Mechanical design and installation
| Dimensions |
50.8 × 50.8 × 21 mm (L × W × H). |
| Case and production testing |
Metal case with shielding on all six sides and epoxy encapsulation; 100% burn-in test. |
| Pin assignment |
1 R.C.; 2 No Pin; 3 −Vin; 4 +Vin; 5 +Vout; 6 COM; 7 −Vout; 8 Trim. Check the bottom-view orientation before PCB assembly. |
| Mechanical drawing details |
Pin diameter: 1.0 mm (+0.2/−0.1 mm); lead length: 5.8 mm. Bottom-view drawing: pin-row separation is 45.72 mm; the four output-side pins span 30.48 mm. Follow the complete drawing for the asymmetric input-side positions. |
| Unit weight reference |
110 g, explicitly stated as a catalog packing reference per unit. Tube and carton gross weights are separate packaging data. |
EMC and manufacturer references
| Safety standards |
EAC TP TC 020/2011 approved. |
| Catalog approvals |
FCC, EAC, CE and UKCA are listed in the manufacturer’s features. |
| EMC emission |
BS EN/EN 55032 Class A; FCC Part 15 Class A; EAC TP TC 020. |
| EMC immunity |
BS EN/EN 61000-4-2, -4-3, -4-4, -4-5, -4-6 and -4-8; light-industrial level, criterion A; EAC TP TC 020. |
| MTBF reference |
100 khrs minimum to MIL-HDBK-217F at 25°C; a reliability reference, not a service-life guarantee. |
| Manufacturer warranty reference |
The catalog states a 2-year manufacturer warranty. |
