Description
Series: Double group output Rated power: 15W Input voltage (range):Normal 24V(9~36V) Input current no-load: 35mA, full load: 750mA Output voltage: ± 5V Output current: ± 0 ~ 1500mA Efficiency (TYP.):85% Capacitive load (max):* 1000μF Size (mm):25.4X25.4X10.2
Click to download Airtac product catalog
Product Features

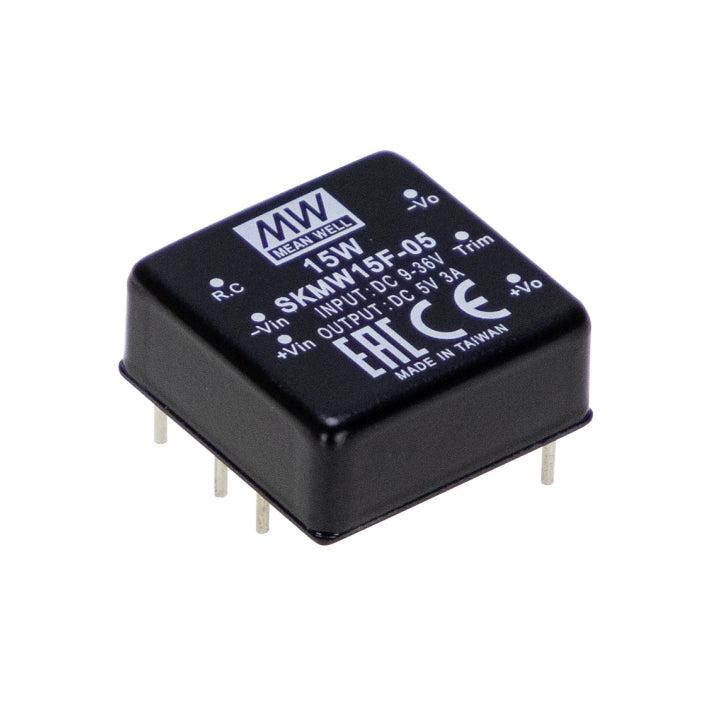

1. The DIP 1 "X1" package has industry standard pins.
2.4:1 ultra-wide input range, operating temperature range -40~85 ℃, no minimum load required.
3. Comply with BS EN/EN55032 radiation level A, no additional components are required, and the efficiency is as high as 89%.
4. Protection: short circuit (continuous)/overload/overvoltage/input undervoltage, 3KVDC input/output isolation, 3 years warranty.
