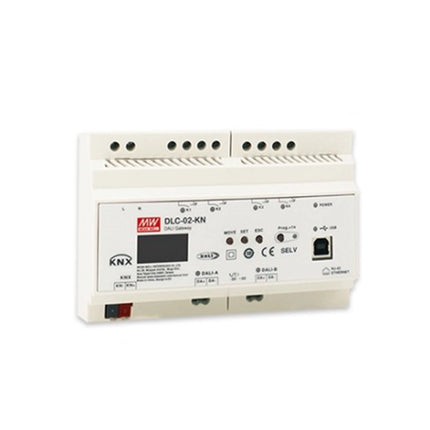

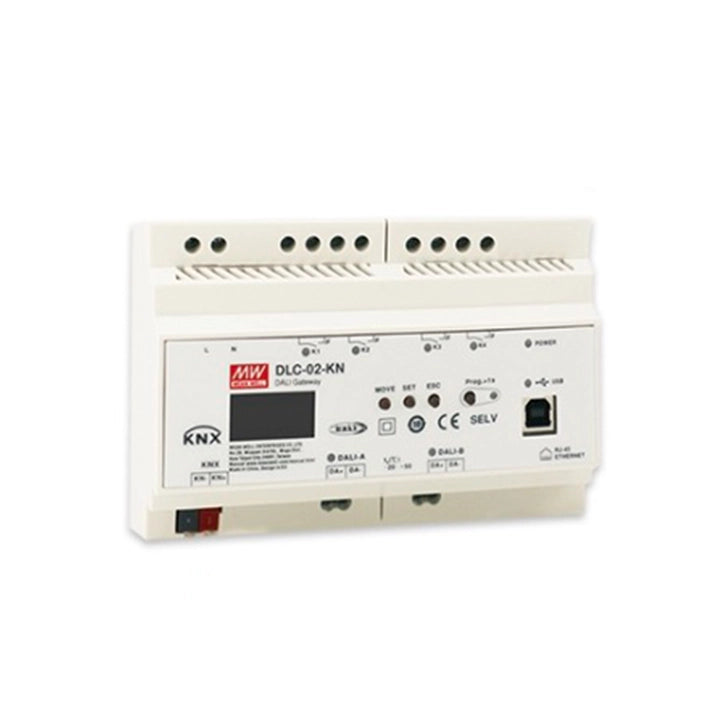

DLC-02-KN — KNX to DALI-2 gateway

MEAN WELL DLC-02-KN links a KNX installation to two independently powered DALI lighting buses. It supports two groups of up to 64 control gears and provides four relay outputs, an OLED display and ETS-based commissioning.

Download MEAN WELL DLC-02-KN Datasheet (PDF)
Download MEAN WELL DLC-02-KN User Manual (PDF)

DLC-02-KN gateway: combined catalog pages 14–20. Product-sheet date: 2024-10-16. Bus-current and relay-contact ratings are separate limits.

Electrical ratings and protection

Parameter	Details
Input range	100–305 VAC, 47–63 Hz, or 140–430 VDC; Class II construction. The catalog does not specify a DC polarity assignment for L/N; confirm the manufacturer’s DC connection instructions before DC use.
DALI bus power	Two built-in 16 V bus power supplies. Guaranteed supply current: 240 mA per bus; maximum supply current: 250 mA per bus. Total rated output power: 7.68 W.
AC current	0.5 A typical at 115 VAC; 0.25 A typical at 230 VAC.
Setup and rise time	250 ms setup and 50 ms rise at 115 VAC and 230 VAC.
Inrush current	Cold start: 45 A typical at 230 VAC.
Short-circuit protection	0.7 s short-circuit delay to shutdown; 5 s restart period and 0.7 s retry time.
Relay outputs	Four independent relay channels. Each contact is rated 10 A at 125 VAC or 5 A at 250 VAC. Do not extend the relay voltage rating to the controller’s 305 VAC input limit.

Control functions and connections

Parameter	Details
DALI channels	Two independent DALI channels, each supporting up to 64 control gears. Each channel provides 16 groups and 16 scenes.
Supported control gear	DT1 emergency lighting (part 202), DT5 DC-voltage converter (part 206), DT6 LED control gear (part 207), DT7 relay (part 208), and DT8 color control (part 209).
Configuration	Configure the gateway with its ETS5 or ETS6 application database and DCA. KNX switch/dim telegrams are translated to DALI commands, and DALI status is sent back to KNX.
Sequences and timers	16 sequences with up to 32 steps each; 16 timers with up to 6 operations each. Sequence repetition is 1–255 cycles or continuous.
Clock retention	Built-in battery retains the real-time clock during loss of AC power; synchronize the clock as described in the configuration procedure.
Local controls	OLED display and three front buttons: MOVE, SET and ESC. Two bus-voltage LEDs, four relay LEDs and one power LED show operating status.
USB	One USB slave connector, type B.
DALI input-device limitation	The dedicated gateway manual explicitly states that DLC-02-KN does not support DALI input devices; its connected DALI devices are control gears. Input controls belong on the KNX side.
KNX bus connection	Connect the marked KNX+ and KNX− bus terminals; the drawing uses red for KNX+ and black for KNX−. A suitable KNX interface is required for ETS commissioning.
Standby switching	The gateway can work with a separate KNX actuator to disconnect AC power from DALI control gear when all relevant channels are off. The actuator and power switching must be designed for the actual loads.

Mounting and environment

Parameter	Details
Dimensions and enclosure	144 × 90 × 58.3 mm (L × W × H); ABS-V0 enclosure, 8 modular units wide.
DIN-rail mounting	35 mm rail, TS35/7.5 or TS35/15 according to the mechanical drawing.
Operating temperature and derating	−25°C to +45°C. The vertical-mounting curve shows 100% load through +45°C and stops there; no higher-temperature full-load operation is specified.
Input/load curve	The static characteristic shows 100% load from 100 to 305 VAC at 60 Hz.
Operating humidity	5–93% RH, non-condensing; climatic reference EN 50090-2-2.
Storage conditions	−25°C to +70°C; 10–95% RH, non-condensing.
Altitude	Operation up to 2,000 m (6,500 ft).
Vibration	5–150 Hz, 2G, 12-minute cycle along each X, Y and Z axis; EN 50090-2-2.
Terminal wiring	Follow the marked L/N supply, K1–K4 relay contacts and separate bus A / bus B DALI terminals. Use the exact model’s diagram; the KNX and Ethernet interfaces are not interchangeable.
Screw-terminal installation	The product sheet specifies 1.0–2.5 mm² solid or finely stranded wire and a 2.5 × 0.4 to 3.5 × 0.6 mm slotted screwdriver. Confirm conductor acceptance for the supplied terminal revision; see the installation instructions below for the catalog/manual tightening-torque difference.
Unit mass	430 g per unit; packing reference: 30 pieces / 13.9 kg / 1.30 CUFT.

Standards and reliability

Parameter	Details
Safety standards	BS EN/EN 63044-1 and BS EN/EN 63044-3.
DALI compliance	DALI-2 control interface; the series specification explicitly lists BS EN/EN 62386-103. Use the manufacturer’s current DALI certification and supported-device documentation when commissioning.
EMC emissions	BS EN/EN 63044-5-2 and -5-3 (BS EN/EN 50491-5-2/-3).
EMC immunity	BS EN/EN 63044-5-2 and -5-3 (BS EN/EN 50491-5-2/-3).
MTBF reference	562,400 hours minimum per Telcordia SR-332; 167,200 hours minimum per MIL-HDBK-217F at 25°C. These are calculated reliability references, not guaranteed service life.
Specification conditions	Unless stated otherwise, catalog parameters are measured at 230 VAC and 25°C ambient temperature.
Manufacturer warranty reference	The catalog states a 5-year manufacturer warranty, subject to its applicable terms.

Manufacturer installation instructions

Parameter	Details
Installation and servicing	Installation and fault diagnosis must be performed by a qualified technician. Do not open the case yourself or install the unit in high moisture, high ambient temperature or direct sunlight.
Mounting orientation	Mount on TS35/7.5 or TS35/15 DIN rail with the DALI terminals facing downward so that cooling is not obstructed. Engage the top edge, slide down and press the bottom into place, then check that the unit is locked.
Terminal torque discrepancy	The current catalogue states 0.8 Nm, while the supplementary manual recommends 5 kgf-cm (4.4 lb-in) for the screw terminals. These values differ. Confirm the installation instructions applicable to the supplied hardware revision with MEAN WELL before tightening.
DALI cable design	The manual permits up to 64 electronic control gears per DALI bus and a maximum 300 m cable length when using 1.5 mm2 conductors. Device addressing and the available bus-current budget must both be respected.
KNX and DALI commissioning	Use ETS with the DLC-02-KN DCA application; an ETS licence is required to enable the DCA page. Actual DALI commissioning requires an online device connection, scanning and pairing the electronic control gears, and downloading the DALI configuration. This gateway does not support DALI input devices.
Separate terminal preparation	The manual specifies 7-8 mm stripping for AC, relay and DALI screw terminals and 5 mm for the KNX bus terminal. The KNX solid-wire figure is 0.6-0.8 mm diameter, not an area in mm2. Verify conductor acceptance for the supplied terminal revision.
KNX bus layout	For the KNX side, the manual lists a maximum 350 m from the bus power supply to the furthest device, 700 m between two devices and 1000 m total bus-line segments, with a maximum 256 bus devices subject to system design. These are not DALI cable limits.
