| Input supply |
DALI bus: 9.5–22.5 VDC according to IEC 62386. This is a bus-powered control input device, not an AC mains switch or an LED load power supply. |
| Current consumption |
Typical consumption below 4 mA at 16 V; inrush current below 10 mA. |
| Start-up time |
300 ms. |
| Protocol and buttons |

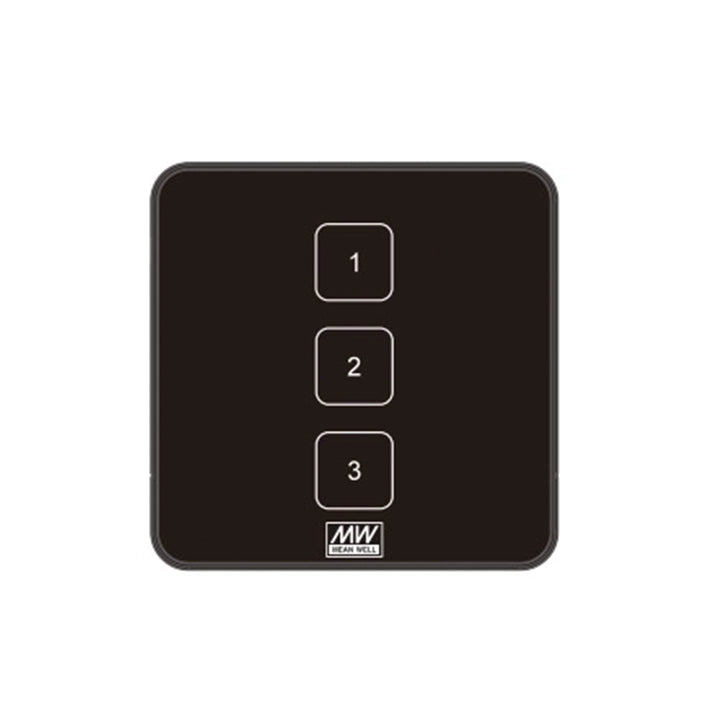

DALI-2; 3 touch buttons. Standards listed: IEC 62386-101, -103, -301 and -332. |
| Button events |
Short click, double click and long press. Assign scene or group actions with the DLC-02 software and the connected lighting controller; actual light functions depend on the controller and compatible control gear. |
| Lighting-system functions |
Suitable systems can use the panel for on/off, brightness, color temperature, color and scheduled lighting. The panel sends control events; it does not itself supply the lights. |
| Backlight and sound |
Three backlight levels: high brightness, low brightness and off. Touch sound can be enabled or disabled. |
| Rear switches |
SW51: buzzer ON (default) or OFF. SW52: high backlight (default), low backlight or OFF. SW53: BL backlight mode (default) or FB feedback mode in accordance with IEC 62386-332. Power-cycle the device after changing SW53 mode selection. |
| DALI bus budget |
With DLC-02, the catalog allows up to 12 input devices per DALI channel, depending on connected drivers and input-device consumption. Calculate the complete bus load against the supply’s guaranteed current; the listed maximum device counts are not an unconditional simultaneous-load guarantee. |
