Description
Rated power: 156W/230VAC,125W/115VAC Input voltage: 90 ~ 264VAC,127 ~ 370VDC [DC input can be realized by connecting AC/L(+),AC/N(-)] Output voltage: 24V Output current: 0~6.5A/230VAC,0~5.2A/115VAC Size (mm):40X125.2X113.5 EMI:Class A Working temperature:-20 ~ +60 ℃
Product Features
1. International universal full range input: 90 ~ 264VAC.

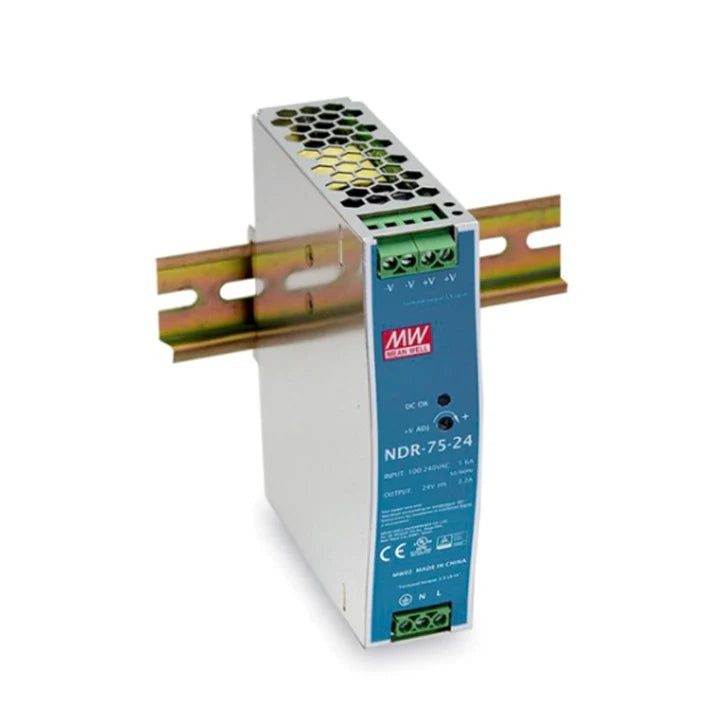

2. Mounting guide rail: TS-35/7.5 or TS-35/15, with built-in active PFC(NDR-240/480).
3. Natural air cooling and heat dissipation, protection type: short circuit/overload/overvoltage/overtemperature.
4. DC output voltage adjustable, built-in constant current limiting circuit.
5. EN61000-6-2(EN50082-2) industrial tolerance grade.
Through the UL508 (industrial control equipment) certification.
7. LED power indication.
8, 3 years warranty (NDR series),2 years warranty (EDR series).
