MEAN WELL ELG-100 series: Constant Voltage/Constant Current LED Driver - ELG-100-24D2

Description

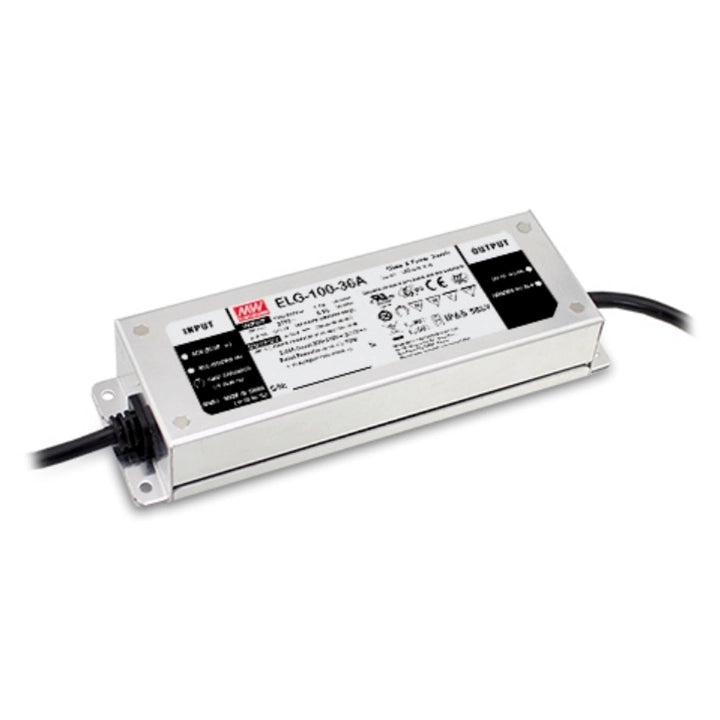

ELG-100-24D2 LED driver

MEAN WELL ELG-100-24D2 is a constant voltage/constant current led driver with 24 V nominal output, 4 A rated current and 96 W output at 200–305 VAC. Its rated output at 100–180 VAC is 70 W. The IP67 metal enclosure uses fanless convection cooling and active PFC. This configuration provides programmable smart timer dimming; standard function code. Intended applications include street lighting, architectural lighting, bay lighting and floodlighting.

Download MEAN WELL ELG-100 Datasheet (PDF)Download MEAN WELL LED Installation Manual

ELG / ELG-C / ELGC catalog, PDF pages 12–22. Use the exact output and function suffix when selecting the driver.

Output and input specifications

Rated output 24 VDC; 4 A; 96 W at 200–305 VAC. At 100–180 VAC, the rated output power is 70 W.
Constant-current region 12–24 V; operate within the permitted voltage/current envelope and input/temperature derating limits.
Voltage and current setting No built-in voltage/current potentiometer adjustment is specified for this function code. Use the control function described below where fitted.
Ripple and regulation 200 mVp-p maximum ripple/noise; voltage tolerance ±3%; line regulation ±0.5%; load regulation ±1%. Ripple measurement: 20 MHz bandwidth, 12-inch twisted pair, parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes setup tolerance, line and load regulation.
Measurement conditions Unless otherwise stated, specifications are measured at 230 VAC, rated current and 25°C ambient. Typical efficiency for this output model: 88%.
Input and frequency 100–305 VAC / 142–431 VDC; 47–63 Hz. The input table additionally permits 320 VAC for 24 hours and 360 VAC for 1 hour; these are duration-limited conditions.
Active PFC and harmonics Built-in active PFC; power factor ≥0.97 / 0.95 / 0.92 at 115 / 230 / 277 VAC, full load. Total harmonic distortion <20% at loads ≥50% at 115 VAC; 60% at 230 VAC; 75% at 277 VAC.
Input current and startup Typical AC current: 1.1 A / 0.6 A / 0.5 A at 115 / 230 / 277 VAC. Typical setup / rise time: 1000 ms / 80 ms at 115 VAC; 500 ms / 100 ms at 230 VAC. Typical hold-up time: 15 ms at 115 VAC; 10 ms at 230 VAC.
Inrush and leakage Cold-start inrush: 60 A; 850 µs, at 230 VAC; pulse width measured at 50% of peak, per NEMA 410. Maximum units on a 16 A breaker: B-type / C-type = 3 / 6. Leakage current <0.75 mA at 277 VAC.
No-load power <0.5 W.

Model and control configuration

Exact ordering code ELG-100 identifies the series; 24 identifies the nominal output voltage. D2: Programmable smart timer dimming; standard function code.
Protection rating IP67 metal housing with functional grounding. Standard two-wire AC input; connect the metal case to protective earth as required by the installation manual.
LED driving arrangement Constant-current operation can drive LEDs directly. Constant-voltage applications generally use an additional DC/DC driver; apply the specific direct-LED requirement below when using 3-in-1 dimming.
Timer programming Smart timer dimming and adjustment use the PROG+ / PROG− connection. D2 is the programmable timer code. Program this series under load, as required by its catalogue note.

Protection and operating limits

Overcurrent and short circuit Overcurrent: 95–108% of rated output, constant-current limiting, automatic recovery after removal of the fault. Short circuit: hiccup mode with automatic recovery.
Overvoltage and temperature protection Overvoltage threshold: 28–34 V. Overvoltage and overtemperature shut down the output; re-power to recover.
Case temperature and cooling Fanless free-air convection; mount horizontally. Working case temperature Tc: −40 to +90°C, subject to derating. Cold operation from −40 to -25°C is shown at 230 VAC only. Tc is case temperature, not ambient temperature.
Ambient derating The ambient curve allows 100% load up to 60°C, falling to 60% at 70°C. The constant-current operating region is rated to a maximum ambient temperature of 60°C. Maintain the case-temperature limit and apply both input and ambient derating.
Input derating At 100–180 VAC, use the exact low-input power rating above; the family static curve shows approximately 70% load in this region and rises to 100% by 200 VAC, remaining there through 305 VAC. The plotted input is 60 Hz.
Humidity, storage and coefficient Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5G, 12 min/cycle, 72 min along each X, Y and Z axis.
Service life and reliability Typical life exceeds 50,000 hours at Tc ≤80°C; higher case temperature reduces life, as shown by the lifetime curve. Five-year warranty under the stated installation and operating conditions. MTBF: 2920.8K / 282.9K hours, respectively Telcordia SR-332 and MIL-HDBK-217F at 25°C.
Performance-curve conditions PF plots use constant-current operation. THD and efficiency curves are representative of ELG-100-54 at Tc = 80°C. Curves illustrate load/input dependence; the exact output rating and typical efficiency for this SKU remain those listed above.
Lighting-system integration Install behind a mains switch for the stated ErP lighting-application compliance.

Safety and system requirements

Safety standards and output UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and 61347-2-13 for independent control gear; BS EN/EN 62384; EAC TP TC 004; GB/T 19510.1 and 19510.213; KC 61347-1 and 61347-2-13. The series table also lists IEC 61347-1 / 61347-2-13 and AS/NZS 61347.1 / 61347.2.13. SELV; Class 2 power unit.
Insulation tests Withstand voltage: input–output 3.75 kVAC, input–FG 2 kVAC, output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C, 70% RH.
EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥60% load; BS EN/EN 61000-3-3; GB/T 17743 and GB 17625.1; KC KN15. EAC TP TC 020 is listed in the emissions table.
EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547 light-industry level. Surge immunity: 6 kV line-to-earth, 4 kV line-to-line. KC KN61547. Requalify EMC in the complete end equipment.
Type HL application Type HL is for use in luminaires in Class I, Division 2 hazardous locations. Follow the end-equipment requirements for the intended installation.
Altitude derating For this fanless product, reduce permitted ambient temperature by 3.5°C per 1,000 m above 2,000 m.

Dimensions, wiring and weight

Dimensions and mounting 199 × 63 × 35.5 mm (L × W × H); case 244A. Four Ø4.5 mm mounting holes; mounting centres 188 × 45.8 mm. Drawing tolerance ±1 mm. Tc measuring point: 105 × 20 mm from the indicated right/bottom reference edges; use the linked mechanical drawing for placement.
Input leads AC/L brown; AC/N blue; SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm². Cable length 300 ±20 mm. Provide reliable metal-case grounding.
Output leads Vo+ red; Vo− black; SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm². Cable length 300 ±20 mm.
Control leads PROG+ purple; PROG− pink; UL 2517 20 AWG × 2C; 300 ±20 mm. Use only the interface specified for this function.
Packing reference 0.85 kg per unit (850 g), catalogue packing reference, not a measured net or shipping weight. Carton reference: 16 pcs / 14.2 kg / 0.72 CUFT.

Installation manual requirements

Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself.
Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements.
System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system.
Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person.
Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications.
Protective-earth installation This version has a two-wire AC input. The catalog still requires the case to be connected to PE for complete EMC performance and safe use; follow the case-grounding instructions and consult MEAN WELL for the input-wiring option with PE.

Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.
