Description

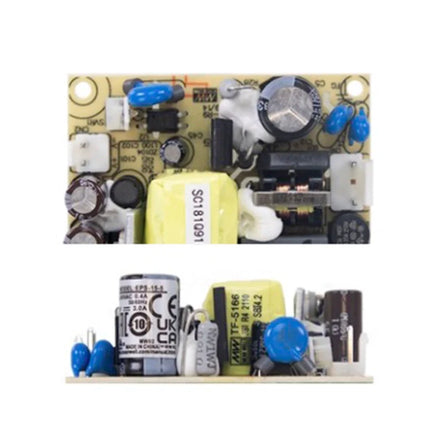

2.5 "X1.8" Compact Form Factor Output voltage: 48V Output rated current: 0.313A Output current range: 0 ~ 0.344A Rated power: 15.02W Peak load (10 seconds):16.51W Input voltage: 85 ~ 264VAC,120 ~ 370VDC [possible DC input voltage AC/N(+),AC/L(-) operated by connection] Size (mm):63.5X45.7X24
Product Features
1. International universal full range input.
2, no-load power consumption <0.1~0.3W,110 peak power up to 10 seconds.
3. Small size, 1U low height, natural air cooling heat dissipation.
4. Protection type: short circuit/overload/overvoltage.
5, Class I or Class II device,-30 ~ +70 ℃ wide temperature operation.
6. Built-in 12V@0.5A fan auxiliary power supply (EPS-120).
7. LED power start indicator (EPS-15), and shell model (EPS-45/65-C).
8, 3 years warranty.
