Description

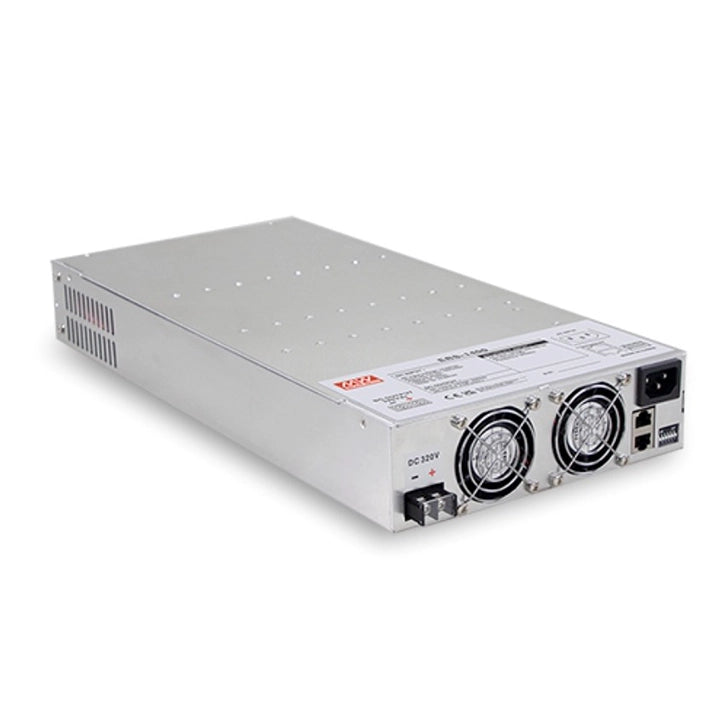

DC input power rating (Typ.):1200~1400W (for input 10 ~ 12VDC),1440W (for input 12 ~ 60VDC) DC input voltage range: 10 ~ 60VDC DC output voltage: 320VDC DC output current (maximum):0 ~ 6.3A AC input voltage range: 180 ~ 264VAC Size (mm):450X213X63.5
Click to download Airtac product catalog
Product Features
1. AC/DC DC energy recovery system power supply.
2. Wide input voltage range: 10 ~ 60VDC/60 ~ 380VDC (depending on the model).
3. Modular design, flexible configuration of aging test can be grouped or partitioned.
4. CC/CV/CP operation mode can be flexibly selected.
5. Built-in CANBus communication interface, and can be used with CMU2A for remote monitoring, setting, data analysis and management.
6. Up to 64 ERS-1400 communication can be connected.
7. Protection: overvoltage/undervoltage/overtemperature/communication failure.
8. Aging test system, energy saving and carbon reduction, excellent weapon to save electricity bill, 3-year warranty.
