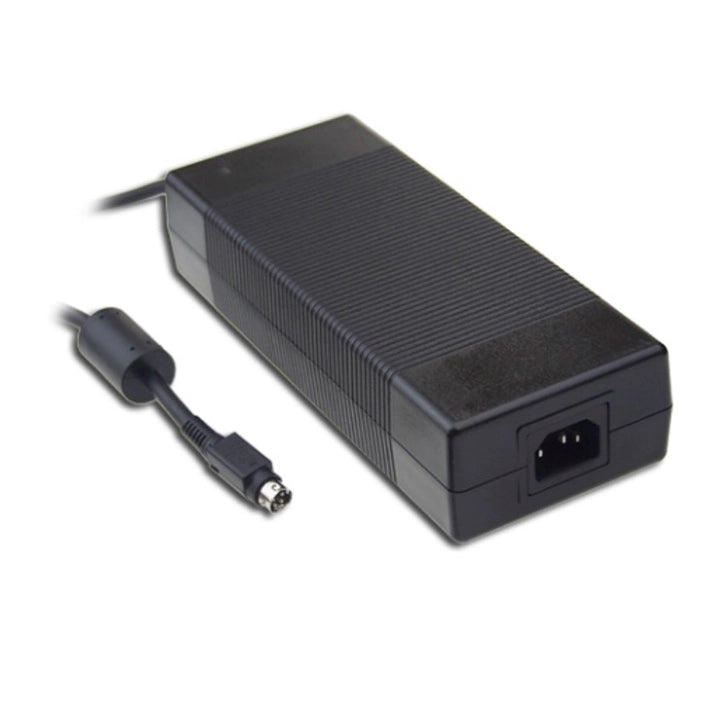

MEAN WELL GC220A24-R7B is a two-stage battery charger with a typical 27.2 V charging output, 8 A continuous output current and a catalogue-rated 217.6 W output. This 24 V battery-voltage-code model uses the four-pin power DIN (R7B) connector. Match the battery chemistry, charging voltage and permitted current before use.
Product Datasheet
Download MEAN WELL GC220 Datasheet (PDF)
The GC220 section is on PDF pages 13, 14, 15. Refer to the complete mechanical drawings and notes when planning installation.
Model and charging selection
| Complete order code |
GC220A24-R7B |
| Series and voltage code |
GC220: single-output battery charger. A24 identifies the 24 V battery-voltage code; the typical charger output is 27.2 V. |
| Selected connector code |
R7B; standard configuration with four-pin power DIN (R7B). |
The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient.
Charging output
| Typical charging voltage |
27.2 V DC. |
| Continuous output current (typical) |
8 A. |
| Rated output power |
217.6 W. |
| Recommended battery capacity |
40–125 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. |
| Charging stages and indication |
Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. |
| Constant-current operating region |
50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. |
The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile.
AC and DC input
| Input voltage and frequency |
90–264 VAC or 127–370 VDC; 47–63 Hz AC. |
| Input class and inlet |
Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. |
| Active PFC / power factor (typical) |
Built-in active PFC; PF >0.90 at 230 VAC and >0.98 at 115 VAC, full load. |
| Efficiency (typical) |
92.5%, under the default 230 VAC / rated-load / 25°C test conditions. |
| AC current |
4 A at 115 VAC; 2 A at 230 VAC. |
| Inrush / leakage / no-load power |
Inrush maximum 120 A at 230 VAC; leakage maximum 1.5 mA at 240 VAC; no-load consumption <1 W. |
Protection
| Overload |
90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. |
| Short circuit |
Hiccup mode, with automatic recovery after the fault is removed. |
| Overvoltage |
105–135% of rated output voltage; output shutdown, re-power to recover. |
| Overtemperature |
95±10°C, sensed by TSW1; power-transistor heatsink. Output shuts down; it recovers automatically after the temperature falls. This is a protection-sensor threshold, not the permitted external ambient temperature. |
Cooling and derating
| Working temperature and cooling |
-30 to 60°C, subject to the derating curves; free-air convection, horizontal orientation. |
| Temperature curve at 230 VAC |
-30°C: 100%; 50°C: 100%; 60°C: 80%. Reduce load along the sloped section. |
| Temperature curve at 100 VAC |
-30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. |
| Input-voltage curve |
90 VAC: 90%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. |
Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation.
Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval.
Environment and reliability
| Humidity |
Working: 20–90% RH, non-condensing. Storage: 10–95% RH. |
| Storage temperature |
−40 to +85°C. |
| Temperature coefficient |
±0.03%/°C over 0–50°C. |
| Vibration |
10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. |
| MTBF |
Minimum 1557.3 thousand hours, Telcordia SR-332 (Bellcore); minimum 170.2 thousand hours, MIL-HDBK-217F at 25°C. |
Dimensions, connections and ordering
| Dimensions |
210 × 85 × 46 mm (L × W × H); case 961A; drawing tolerance ±1 mm. |
| Construction |
Fully enclosed plastic case with a two-colour charging-status LED. |
| Selected output connector |
R7B: four-pin power DIN (R7B); standard model configuration. |
| Output cable |
UL2464 16AWG × 4C; 1000±50 mm |
| Connector reference and polarity |
KYCON KPP-4S or equivalent. Pins 1 and 4: +V; pins 2 and 3: −V. Follow the viewing direction in the connector drawing. |
| Output earth connection |
The R7B drawing connects −V to AC FG. |
| Unit mass reference |
1100 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. |
The specified connector is fitted to this model's output lead. Confirm the mating connector against the complete drawing; a separate mating part or adapter kit is not listed as included.
Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes.
The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller.
Safety, EMC and application notes
| Safety-standard scope |
TUV BS EN/EN62368-1 and EAC TP TC 004. UL1012 is listed only for the AD1 version, not this R7B configuration. |
| Listed approvals |
TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. |
| Isolation |
Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. |
| EMC emissions |
BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. |
| EMC immunity |
BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. |
| Measurement basis |
Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. |
| Catalogue warranty statement |
The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. |
The charger is an independent unit; the final complete equipment must still be checked for EMC compliance.
Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.
