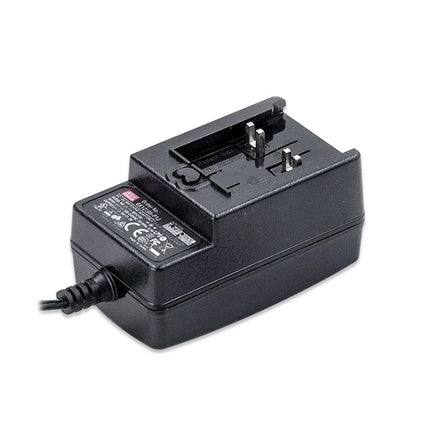

MEAN WELL GE18I07-P1J is a GE18I single-output AC/DC adapter with an interchangeable AC inlet plug and a center-positive P1J DC cable. The catalogue specifies 7.5 VDC, 1.73 A and 13 W rated output. Its wall-mounted Class II enclosure has no protective-earth pin. Order the appropriate AC plug separately and apply the current, power and derating limits together.
Product Datasheet
Download MEAN WELL GE18I Datasheet (PDF)
The GE18I section is on PDF pages 6, 7, 8, 9, 10. Refer to the complete mechanical drawings and notes when planning installation.
Model and Configuration
| Complete order number |
GE18I07-P1J. |
| Safety model identifier |
GE18I07. |
| Product type |
Interchangeable-Plug AC/DC Power Adapter; wall-mounted style, single DC output. |
| Input construction |
Interchangeable AC plug; Class II, without protective earth. |
| No-load power consumption |
<0.075 W. |
| Energy-efficiency statement |
Level VI; EISA 2007 / DoE and EU ErP, as listed in the 2023-05-02 catalogue. |
| Housing and indicator |
Fully enclosed 94V-0 flame-retardant plastic case; power-on LED. |
| Limited power source |
LPS, as listed in the applicable catalogue. |
The catalogue lists consumer electronics, telecommunications, office facilities and industrial equipment as applications. The main body and the selected AC inlet plug must be ordered separately.
Model-Specific DC Output
| Nominal output |
7.5 VDC. |
| Rated output current |
1.73 A. |
| Current range |
0–1.73 A. |
| Catalogue-rated output power, maximum |
13 W. |
| Ripple and noise, maximum |
75 mVp-p. |
| Voltage tolerance |
±5.0%. |
| Line regulation |
±1.0%. |
| Load regulation |
±5.0%. |
| Efficiency, typical |
82.5%. |
Observe both the printed current limit and the printed power rating. The output-voltage set point is measured at the plug terminals at 50% load.
Input and Timing
| AC input range |
90–264 VAC. |
| DC input range |
135–370 VDC. |
| Input frequency |
47–63 Hz. |
| AC input current |
0.7 A at 100 VAC; 0.4 A at 230 VAC. |
| Cold-start inrush current, maximum |
40 A at 100 VAC; 80 A at 230 VAC. |
| Leakage current, maximum |
0.25 mA at 240 VAC. |
| Set-up / rise / hold-up at full load |
4000 / 100 / 30 ms at 230 VAC; 4000 / 100 / 10 ms at 115 VAC. |
Protection
| Short circuit / overload |
110–200% of rated output power; hiccup operation with automatic recovery after the fault condition is removed. |
| Overvoltage |
115–135% of rated output voltage; clamping by a Zener diode. |
Cooling and Environmental Limits
| Working ambient |
−10 to +50°C, subject to derating. |
| Temperature/load curve |
100% load from −10°C through 30°C; 75% at 40°C; 50% at 50°C. Follow the plotted line between points. |
| Input/load curve |
At 60 Hz: 80% load at 90 VAC, rising to 100% at 95 VAC; 100% from 95 through 264 VAC. Temperature limits apply at the same time. |
| Working humidity |
20–90% RH, non-condensing. |
| Storage temperature / humidity |
−20 to +85°C; 10–95% RH. |
| Temperature coefficient |
±0.03%/°C over 0–30°C. |
| Vibration |
10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. |
Use the applicable derating curves when selecting the load; the upper operating temperature does not permit full rated output.
Safety, Isolation and EMC
| Catalogue safety listing |
The 2023-05-02 specification lists UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, AS/NZS 60950.1, CCC GB4943 and EAC TP TC 004 approvals. |
| Input/output withstand voltage |
4242 VDC. |
| Insulation resistance |
Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH. |
| Conducted / radiated emissions |
BS EN/EN55032 (CISPR32), Class B for both. |
| ESD |
BS EN/EN61000-4-2; Level 3, 8 kV air; Level 2, 4 kV contact. |
| RF field susceptibility |
BS EN/EN61000-4-3; Level 2, 3 V/m. |
| EFT bursts |
BS EN/EN61000-4-4; Level 2, 1 kV. |
| Surge susceptibility |
BS EN/EN61000-4-5; Level 3, 1 kV line-to-neutral. |
| Conducted susceptibility |
BS EN/EN61000-4-6; Level 2, 3 V. |
| Magnetic-field immunity |
BS EN/EN61000-4-8; Level 1, 1 A/m. |
| Voltage dips and interruptions |
BS EN/EN61000-4-11; >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruption for 250 periods. |
These listings describe the cited catalogue revision. Check the supplied unit’s applicable markings for the intended market. The power supply is an independent unit; final equipment must be evaluated for compliance with the applicable EMC directives.
Interchangeable AC Plugs and Ordering
| Australian plug |
AC plug-AU (local accessory SKU: AC PLUG-AU). |
| UK plug |
AC plug-UK (local accessory SKU: AC PLUG-UK). |
| European plug |
AC plug-EU (local accessory SKU: AC PLUG-EU). |
| US plug |
AC plug-US (local accessory SKU: AC PLUG-US). |
| Four-type set |
AC plug-MIX (local accessory SKU: AC PLUG-MIX): Australian, UK, European and US types. |
The GE18I ordering table specifies these AC inlet plugs. Select the plug for the destination and the supplied main-body configuration. The main body needs an AC inlet plug, and both are ordered separately; a four-plug kit is not included with the P1J main-body order number.
Dimensions and Standard DC Connection
| Body dimensions |
81 × 43 × 40.5 mm, L × W × H. |
| Standard output termination |
P1J tuning-fork DC plug: 5.5 mm OD × 2.1 mm ID × 11 ±0.5 mm insertion length; center/inside positive, outside negative. |
| Fixed output cable |
AWM2468 16 AWG; 1000 ±50 mm for this 7.5 V model. |
| Installation instructions |
Use the manufacturer’s installation instructions for the supplied main body and selected AC inlet plug. |
Optional DC Plugs and Quick Adapters
The standard supplied termination for this complete model is P1J. Optional terminations can be specified as a customized cable with an applicable minimum order quantity, or selected from the separately sold quick adapters without a minimum order quantity. Confirm dimensions, polarity and the connected equipment’s requirements before selecting an option. The dimensions below are OD × ID × insertion length in millimetres.
Tuning-fork options: P1I 5.5 × 2.1 × 9.5; P1L 5.5 × 2.5 × 9.5; P1M 5.5 × 2.5 × 11. Right-angle options: P1IR 5.5 × 2.1 × 9.5; P1JR 5.5 × 2.1 × 11; P1LR 5.5 × 2.5 × 9.5; P1MR 5.5 × 2.5 × 11. Quick adapters are listed for these types, rated at 7.5 A maximum.
Barrel options: P2I 5.5 × 2.1 × 9.5; P2J 5.5 × 2.1 × 11; P2L 5.5 × 2.5 × 9.5; P2M 5.5 × 2.5 × 11. Right-angle versions: P2IR, P2JR, P2LR and P2MR, with the corresponding straight version’s dimensions. These barrel options have no quick adapter listed.
Floating-lock options, SWITCHCRAFT original or equivalent: P2S (S761K) 5.53 × 2.03 × 12.06; P2K (761K) 5.53 × 2.54 × 12.06; P2C (S760K) 5.53 × 2.03 × 9.52; P2D (760K) 5.53 × 2.54 × 9.52. No quick adapter is listed for these lock styles.
Minimum-pin options, EIAJ equivalent: P3A 2.35 × 0.7 × 11; P3B 4.0 × 1.7 × 11; P3C 4.75 × 1.7 × 11. Their quick adapters are rated at 5 A maximum.
Center-pin options, EIAJ equivalent: P4A 5.5 × 3.4 × 11 with a 1.0 mm center pin; P4B 6.5 × 4.4 × 11 with a 1.4 mm center pin; P4C 7.4 × 5.1 × 11 with a 0.6 mm center pin. Their quick adapters are rated at 7.5 A maximum.
R6B is a locking male 3-pin mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 = +Vo; pin 2 = −Vo. R7B is a locking male 4-pin mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 = +Vo; pins 2 and 3 = −Vo. Refer to the respective catalogue face drawing for pin orientation. Both quick adapters are rated at 7.5 A maximum.
Stripped and tinned leads are available by request: conductor 1, ribbed, is +Vo; conductor 2, lettered, is −Vo. The standard illustrated lengths are L = 25 mm and L1 = 10 mm, with other lengths by request. This termination has no quick adapter listed.
An accessory current rating does not increase this adapter’s output capability. The selected connector, cable, adapter current and power limits must all be respected. Optional DC plugs and quick adapters are not additional items included in the standard P1J order.
Reliability and Packing
| Catalogue life reference |
2 years at 100% load, 30°C and 8 hours of operation per day. |
| Minimum MTBF |
100 thousand hours, MIL-HDBK-217F at 25°C. |
| Manufacturer warranty |
2 years, as stated in this catalogue. |
| Catalogue single-unit weight |
134 g; explicit single-unit packing reference, not the carton weight. |
| Carton packing |
50 pieces / 8.4 kg / carton. |
Measurement Conditions and Datasheet
| General measurement conditions |
Unless otherwise specified: 230 VAC input, rated load, 25°C and 70% RH. |
| DC voltage measurement |
At the plug terminals and 50% load. |
| Ripple/noise method |
20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. |
| Voltage-tolerance scope |
Includes set-up tolerance, line regulation and load regulation. |
| Line regulation measurement |
From low input line to high input line at rated load. |
| Load regulation measurement |
From 10% to 100% rated load. |
| Applicable catalogue revision |
2023-05-02; combined PDF pages 6, 7, 8, 9, 10. |
