MEAN WELL GE18I series: Interchangeable-Plug AC/DC Power Adapter - GE18I15-P1J

Description

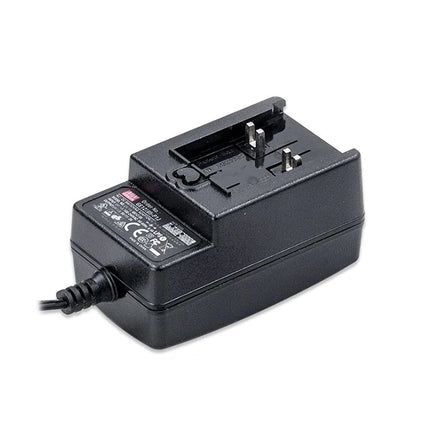

MEAN WELL GE18I15-P1J is a GE18I single-output AC/DC adapter with an interchangeable AC inlet plug and a center-positive P1J DC cable. The catalogue specifies 15 VDC, 1.2 A and 18 W rated output. Its wall-mounted Class II enclosure has no protective-earth pin. Order the appropriate AC plug separately and apply the current, power and derating limits together.

Product Datasheet

Download MEAN WELL GE18I Datasheet (PDF)

The GE18I section is on PDF pages 6, 7, 8, 9, 10. Refer to the complete mechanical drawings and notes when planning installation.

Model and Configuration

Complete order number GE18I15-P1J.
Safety model identifier GE18I15.
Product type Interchangeable-Plug AC/DC Power Adapter; wall-mounted style, single DC output.
Input construction Interchangeable AC plug; Class II, without protective earth.
No-load power consumption <0.075 W.
Energy-efficiency statement Level VI; EISA 2007 / DoE and EU ErP, as listed in the 2023-05-02 catalogue.
Housing and indicator Fully enclosed 94V-0 flame-retardant plastic case; power-on LED.
Limited power source LPS, as listed in the applicable catalogue.

The catalogue lists consumer electronics, telecommunications, office facilities and industrial equipment as applications. The main body and the selected AC inlet plug must be ordered separately.

Model-Specific DC Output

Nominal output 15 VDC.
Rated output current 1.2 A.
Current range 0–1.2 A.
Catalogue-rated output power, maximum 18 W.
Ripple and noise, maximum 150 mVp-p.
Voltage tolerance ±3.0%.
Line regulation ±1.0%.
Load regulation ±3.0%.
Efficiency, typical 86.5%.

Observe both the printed current limit and the printed power rating. The output-voltage set point is measured at the plug terminals at 50% load.

Input and Timing

AC input range 90–264 VAC.
DC input range 135–370 VDC.
Input frequency 47–63 Hz.
AC input current 0.7 A at 100 VAC; 0.4 A at 230 VAC.
Cold-start inrush current, maximum 40 A at 100 VAC; 80 A at 230 VAC.
Leakage current, maximum 0.25 mA at 240 VAC.
Set-up / rise / hold-up at full load 4000 / 100 / 30 ms at 230 VAC; 4000 / 100 / 10 ms at 115 VAC.

Protection

Short circuit / overload 110–200% of rated output power; hiccup operation with automatic recovery after the fault condition is removed.
Overvoltage 115–135% of rated output voltage; clamping by a Zener diode.

Cooling and Environmental Limits

Working ambient −10 to +50°C, subject to derating.
Temperature/load curve 100% load from −10°C through 30°C; 75% at 40°C; 50% at 50°C. Follow the plotted line between points.
Input/load curve At 60 Hz: 80% load at 90 VAC, rising to 100% at 95 VAC; 100% from 95 through 264 VAC. Temperature limits apply at the same time.
Working humidity 20–90% RH, non-condensing.
Storage temperature / humidity −20 to +85°C; 10–95% RH.
Temperature coefficient ±0.03%/°C over 0–30°C.
Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis.

Use the applicable derating curves when selecting the load; the upper operating temperature does not permit full rated output.

Safety, Isolation and EMC

Catalogue safety listing The 2023-05-02 specification lists UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, AS/NZS 60950.1, CCC GB4943 and EAC TP TC 004 approvals.
Input/output withstand voltage 4242 VDC.
Insulation resistance Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH.
Conducted / radiated emissions BS EN/EN55032 (CISPR32), Class B for both.
ESD BS EN/EN61000-4-2; Level 3, 8 kV air; Level 2, 4 kV contact.
RF field susceptibility BS EN/EN61000-4-3; Level 2, 3 V/m.
EFT bursts BS EN/EN61000-4-4; Level 2, 1 kV.
Surge susceptibility BS EN/EN61000-4-5; Level 3, 1 kV line-to-neutral.
Conducted susceptibility BS EN/EN61000-4-6; Level 2, 3 V.
Magnetic-field immunity BS EN/EN61000-4-8; Level 1, 1 A/m.
Voltage dips and interruptions BS EN/EN61000-4-11; >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruption for 250 periods.

These listings describe the cited catalogue revision. Check the supplied unit’s applicable markings for the intended market. The power supply is an independent unit; final equipment must be evaluated for compliance with the applicable EMC directives.

Interchangeable AC Plugs and Ordering

Australian plug AC plug-AU (local accessory SKU: AC PLUG-AU).
UK plug AC plug-UK (local accessory SKU: AC PLUG-UK).
European plug AC plug-EU (local accessory SKU: AC PLUG-EU).
US plug AC plug-US (local accessory SKU: AC PLUG-US).
Four-type set AC plug-MIX (local accessory SKU: AC PLUG-MIX): Australian, UK, European and US types.

The GE18I ordering table specifies these AC inlet plugs. Select the plug for the destination and the supplied main-body configuration. The main body needs an AC inlet plug, and both are ordered separately; a four-plug kit is not included with the P1J main-body order number.

Dimensions and Standard DC Connection

Body dimensions 81 × 43 × 40.5 mm, L × W × H.
Standard output termination P1J tuning-fork DC plug: 5.5 mm OD × 2.1 mm ID × 11 ±0.5 mm insertion length; center/inside positive, outside negative.
Fixed output cable AWM2468 18 AWG; 1500 ±100 mm for this 15 V model.
Installation instructions Use the manufacturer’s installation instructions for the supplied main body and selected AC inlet plug.

Optional DC Plugs and Quick Adapters

The standard supplied termination for this complete model is P1J. Optional terminations can be specified as a customized cable with an applicable minimum order quantity, or selected from the separately sold quick adapters without a minimum order quantity. Confirm dimensions, polarity and the connected equipment’s requirements before selecting an option. The dimensions below are OD × ID × insertion length in millimetres.

Tuning-fork options: P1I 5.5 × 2.1 × 9.5; P1L 5.5 × 2.5 × 9.5; P1M 5.5 × 2.5 × 11. Right-angle options: P1IR 5.5 × 2.1 × 9.5; P1JR 5.5 × 2.1 × 11; P1LR 5.5 × 2.5 × 9.5; P1MR 5.5 × 2.5 × 11. Quick adapters are listed for these types, rated at 7.5 A maximum.

Barrel options: P2I 5.5 × 2.1 × 9.5; P2J 5.5 × 2.1 × 11; P2L 5.5 × 2.5 × 9.5; P2M 5.5 × 2.5 × 11. Right-angle versions: P2IR, P2JR, P2LR and P2MR, with the corresponding straight version’s dimensions. These barrel options have no quick adapter listed.

Floating-lock options, SWITCHCRAFT original or equivalent: P2S (S761K) 5.53 × 2.03 × 12.06; P2K (761K) 5.53 × 2.54 × 12.06; P2C (S760K) 5.53 × 2.03 × 9.52; P2D (760K) 5.53 × 2.54 × 9.52. No quick adapter is listed for these lock styles.

Minimum-pin options, EIAJ equivalent: P3A 2.35 × 0.7 × 11; P3B 4.0 × 1.7 × 11; P3C 4.75 × 1.7 × 11. Their quick adapters are rated at 5 A maximum.

Center-pin options, EIAJ equivalent: P4A 5.5 × 3.4 × 11 with a 1.0 mm center pin; P4B 6.5 × 4.4 × 11 with a 1.4 mm center pin; P4C 7.4 × 5.1 × 11 with a 0.6 mm center pin. Their quick adapters are rated at 7.5 A maximum.

R6B is a locking male 3-pin mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 = +Vo; pin 2 = −Vo. R7B is a locking male 4-pin mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 = +Vo; pins 2 and 3 = −Vo. Refer to the respective catalogue face drawing for pin orientation. Both quick adapters are rated at 7.5 A maximum.

Stripped and tinned leads are available by request: conductor 1, ribbed, is +Vo; conductor 2, lettered, is −Vo. The standard illustrated lengths are L = 25 mm and L1 = 10 mm, with other lengths by request. This termination has no quick adapter listed.

An accessory current rating does not increase this adapter’s output capability. The selected connector, cable, adapter current and power limits must all be respected. Optional DC plugs and quick adapters are not additional items included in the standard P1J order.

Reliability and Packing

Catalogue life reference 2 years at 100% load, 30°C and 8 hours of operation per day.
Minimum MTBF 100 thousand hours, MIL-HDBK-217F at 25°C.
Manufacturer warranty 2 years, as stated in this catalogue.
Catalogue single-unit weight 134 g; explicit single-unit packing reference, not the carton weight.
Carton packing 50 pieces / 8.4 kg / carton.

Measurement Conditions and Datasheet

General measurement conditions Unless otherwise specified: 230 VAC input, rated load, 25°C and 70% RH.
DC voltage measurement At the plug terminals and 50% load.
Ripple/noise method 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
Voltage-tolerance scope Includes set-up tolerance, line regulation and load regulation.
Line regulation measurement From low input line to high input line at rated load.
Load regulation measurement From 10% to 100% rated load.
Applicable catalogue revision 2023-05-02; combined PDF pages 6, 7, 8, 9, 10.
