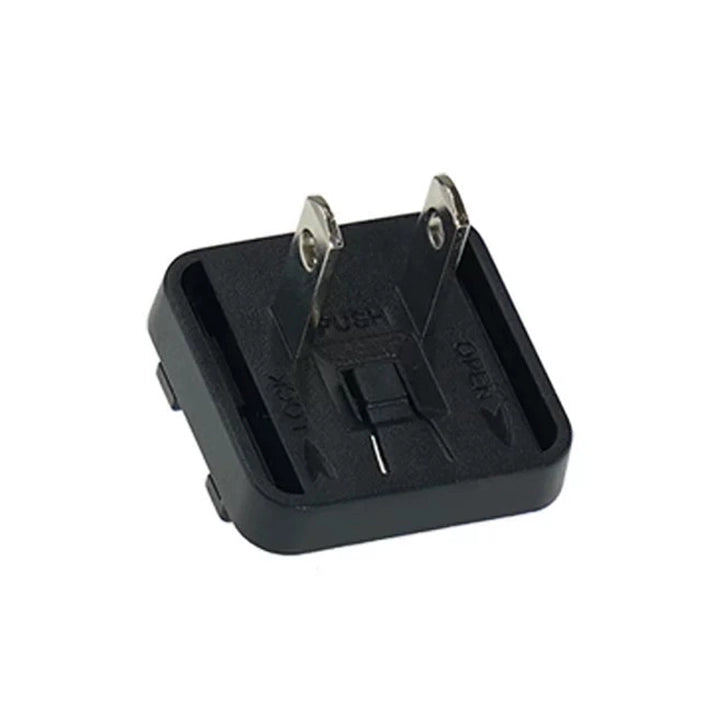

MEAN WELL AC PLUG-US2 is a US interchangeable AC plug for GEM06I / GEM12I / GEM18I / GEM30I / GEM40I / GEM60I adapters. It is ordered separately from the adapter main body.
Product Datasheet
Download MEAN WELL GEM Datasheet (PDF)
The GEM section is on PDF pages 2, 7, 12, 15, 18, 21. Refer to the complete mechanical drawings and notes when planning installation.
Accessory Identification
| Complete order model |
AC PLUG-US2. |
| Accessory type |
US interchangeable AC plug. |
| Compatible adapter families |
GEM06I / GEM12I / GEM18I / GEM30I / GEM40I / GEM60I. |
| Order arrangement |
The interchangeable AC plug accessory is ordered separately from the GEM adapter main body. The power adapter is not included. |
Regional Configuration and Contents
| Regional plug format |
US type. |
| Contents |
One US interchangeable AC plug head. |
Select the plug form for the destination and the exact compatible GEM adapter. Use the corresponding GEM-series AC plug code; other plug families are not interchangeable merely because the regional pin shape appears similar.
Compatibility and Use
| Applicable equipment |
Use with the compatible MEAN WELL GEM adapter families listed above. |
| Supply function |
This is an interchangeable mains-plug accessory, not a power-conversion unit or a DC output connector. |
| Adapter electrical limits |
The selected adapter main body determines the input range, DC output voltage, current, power and operating limits. A plug change does not increase those ratings. |
The compatible GEM adapters use Class II construction without functional ground. Plug shape does not establish an earth-connection function. The accessory itself is not assigned the adapter body’s output ratings, medical isolation approval or ingress-protection rating.
Catalogue Reference
| Ordering evidence |
GEM-series combined PDF, pages 2, 7, 12, 15, 18 and 21. These ordering tables show the corresponding AU2, UK2, EU2, US2 and MIX2 plug types. |
The adapter main body and matching interchangeable AC plug are separate order items. Use the linked catalogue to match the adapter series and plug-selection drawing.
