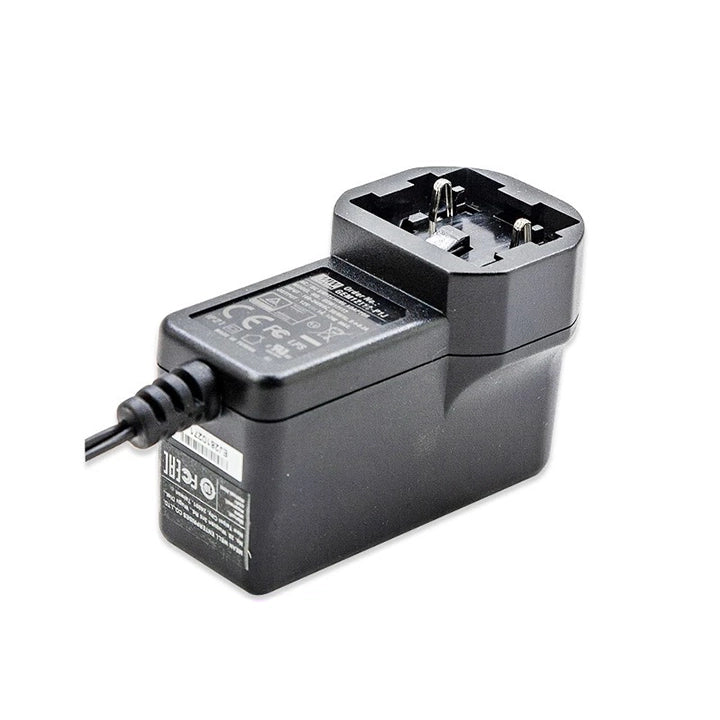

MEAN WELL GEM60I12-P1J is a Class II medical AC/DC power adapter providing 12 VDC at 4.5 A, with a 54 W maximum rated output and a center-positive P1J DC plug. It provides 2 × MOPP primary-to-secondary isolation and is suitable for BF applications within an appropriately evaluated medical system. The interchangeable AC plug is ordered separately.
Product Datasheet
Download MEAN WELL GEM60I Datasheet (PDF)
The GEM60I section is on PDF pages 20, 21, 22, 23, 24. Refer to the complete mechanical drawings and notes when planning installation.
Model and Configuration
| Complete order model |
GEM60I12-P1J. |
| Series and voltage code |
GEM60I interchangeable-plug medical AC/DC adapter; code 12 identifies 12 VDC. |
| Construction |
Class II construction without functional ground, in a fully enclosed 94V-0 flame-retardant plastic case. |
| Standard DC plug |
P1J tuning-fork plug; 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ± 0.5 mm length. Center positive; outer sleeve negative. |
| Mains plug |
The adapter main body and interchangeable AC plug are ordered separately. A compatible AC plug is required for use. |
Output Ratings
| DC output voltage |
12 VDC. |
| Rated current / load range |
4.5 A rated; 0–4.5 A operating range. |
| Rated power, maximum |
54 W; observe both the current limit and rated power, together with applicable derating. |
| Ripple and noise, maximum |
100 mVp-p under the measurement conditions below. |
| Voltage tolerance |
±5%. |
| Line regulation |
±1%. |
| Load regulation |
±3%. |
| Efficiency, typical |
88% under the general test conditions below. |
Input and Timing
| Input range |
80–264 VAC or 113–370 VDC; AC frequency 47–63 Hz. |
| AC input current |
1.5 A at 115 VAC; 0.8 A at 230 VAC. |
| Cold-start inrush, maximum |
50 A at 115 VAC; 100 A at 230 VAC. |
| Touch current |
Less than 100 µA at 264 VAC. |
| Set-up / rise / hold-up time |
500 ms / 30 ms / 10 ms at 115 VAC and 230 VAC, full load. |
| No-load power |
Less than 0.15 W. |
| Energy efficiency |
Level VI for this voltage model. The GEM60I 5–9 V models are Level V; 12–48 V models are Level VI. |
Protection
| Short circuit / overload |
Overload protection at 105–160% of rated output power; hiccup mode with automatic recovery after the fault condition is removed. |
| Overvoltage |
110–140% of rated output voltage; Zener-diode clamp, output short. |
Medical Safety and Application
| Patient-protection isolation |
Primary-to-secondary isolation: 2 × MOPP (means of patient protection). |
| Application suitability |
Suitable for BF-type medical applications, subject to evaluation in the final equipment. |
| Listed safety approvals |
TUV BS EN/EN60601-1 and BS EN/EN60601-1-11; ANSI/AAMI ES60601-1 and ES60601-1-11 (3.1 version); CAN/CSA-C22.2 No. 60601-1, 3rd edition; EAC TP TC 004. |
| Ingress protection |
IP22, as specified for the GEM60I adapter. |
| Dielectric withstand |
Input to output: 5656 VDC. |
| Insulation resistance |
Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. |
The adapter approvals and isolation rating do not certify the complete medical system or its applied parts. Confirm the equipment-level safety, leakage-current and EMC requirements for the intended application.
Operating Conditions and Derating
| Operating temperature |
−30 to +70°C; apply the ambient-temperature derating curve. |
| Temperature curve |
100% load from −30 to +40°C; the marked points are 70% at +50°C and 50% at +70°C. Follow the plotted curve between these points. |
| Input-voltage curve |
80% load at 80 VAC, increasing to 100% at 115 VAC; 100% load from 115 to 264 VAC. |
| Operating humidity |
20–90% RH, non-condensing. |
| Storage temperature / humidity |
−30 to +85°C; 10–95% RH, non-condensing. |
| Temperature coefficient |
±0.03%/°C over 0–40°C. |
| Vibration |
10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes each on X, Y and Z axes. |
Observe both input-voltage and ambient-temperature limits. The maximum operating temperature does not imply full rated output.
Mechanical Details and Cable
| Main-body dimensions |
75.5 × 39.1 × 56.2 mm (L × W × H). Allow clearance for the selected AC plug and DC cable. |
| DC cable |
UL2468 16 AWG; 1000 +150/−0 mm for this output-voltage version. |
| Catalogue unit weight |
200 g, catalogue packing reference per unit; not a measured net or shipping weight. |
Use the mechanical drawing on PDF page 22 for the body and cable arrangement. Check the equipment socket dimensions and polarity before connection.
Separately Ordered AC Plugs
| Australian type |
AC PLUG-AU2. |
| UK type |
AC PLUG-UK2. |
| European type |
AC PLUG-EU2. |
| US type |
AC PLUG-US2. |
| Four-region set |
AC PLUG-MIX2: Australian AU2, UK2, EU2 and US2 plug types. |
These AC plug heads are listed for GEM06I / GEM12I / GEM18I / GEM30I / GEM40I / GEM60I and are ordered separately from the main body. The AC plug head and optional DC output connector are different parts.
Optional DC Connectors and Quick Adapters
| Tuning-fork plugs |
P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Codes ending in R are right-angled; the others are straight. Quick adapters: 7.5 A maximum. |
| Barrel plugs |
P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Codes ending in R are right-angled; the others are straight. No quick adapter is listed for these codes. |
| Locking plugs |
P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. No quick adapter is listed. |
| Minimum-pin plugs |
P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent; quick adapters: 5 A maximum. |
| Center-pin plugs |
P4A: 5.5 / 3.4 / 11; P4B: 6.5 / 4.4 / 11; P4C: 7.4 / 5.1 / 11 mm (outside diameter / inside diameter / length). Center-pin diameters: P4A 1.0 mm, P4B 1.4 mm, P4C 0.6 mm. Quick adapters: 7.5 A maximum. |
| R6B, locking 3-pin male |
KYCON KPPX-3P equivalent; pins 1 and 3 = +Vo, pin 2 = −Vo. Quick adapter: 7.5 A maximum. |
| R7B, locking 4-pin male |
KYCON KPPX-4P equivalent; pins 1 and 4 = +Vo, pins 2 and 3 = −Vo. Quick adapter: 7.5 A maximum. |
| Stripped and tinned leads |
Lead 1, ribbed or white = +Vo; lead 2, lettered or black = −Vo. Illustrated lengths: L = 25 mm, L1 = 10 mm; other lengths can be requested. No quick adapter is listed. |
The listed order model has the standard P1J DC plug. Alternative connectors may be factory-customized subject to a minimum order quantity, or selected as separately purchased quick adapters where listed; quick adapters have no minimum order quantity. They are not automatically included.
A connector change does not increase the power supply output. Use the lowest applicable adapter, cable and connector current limit, and confirm mating dimensions and polarity before connection.
EMC
| Conducted / radiated emissions |
BS EN/EN55011 (CISPR11), FCC Part 18: Class B. |
| Harmonics / flicker |
BS EN/EN61000-3-2, Class A; BS EN/EN61000-3-3. |
| Immunity framework |
BS EN/EN55011 and BS EN/EN60601-1-2. |
| ESD immunity |
BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. |
| RF field immunity |
BS EN/EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9: 9–28 V/m at 385 MHz–6 GHz. |
| EFT bursts |
BS EN/EN61000-4-4: Level 3, 2 kV line-to-line and 1 kV on interconnecting lines, at 100 kHz repetition rate. |
| Surge immunity |
BS EN/EN61000-4-5: Level 3, 2 kV line-to-line. |
| Conducted RF immunity |
BS EN/EN61000-4-6: Level 2, 3 V. |
| Magnetic-field immunity |
BS EN/EN61000-4-8: Level 4, 30 A/m. |
| Voltage dips / interruptions |
BS EN/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. |
Final equipment EMC performance depends on the complete installation and must be checked with the connected equipment.
Measurement Conditions and Reliability
| General test conditions |
Unless otherwise specified: 230 VAC input, rated load, 25°C and 70% RH. |
| DC voltage set point |
Measured at the output plug at 50% load. |
| Ripple/noise measurement |
20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. |
| MTBF, minimum |
400 thousand hours, MIL-HDBK-217F at 25°C. |
| Catalogue life condition |
3 years at 100% load, 40°C and 8 hours/day. |
| Manufacturer warranty |
3 years, subject to manufacturer warranty terms. |
| Catalogue revision |
2021-12-08; combined PDF pages 20–24. |
Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low to high input voltage at rated load; load regulation is measured from 10% to 100% rated load.
Applications and Selection
Application examples include blood-glucose and blood-pressure meters, nebulizers, inhalers, portable medical devices and sleep-apnea devices. Select the correct output voltage, current capacity, polarity and regional AC plug for the equipment.
