MEAN WELL GS05E series: Single-Output AC/DC USB Power Adapter - GS05E-USB

Description

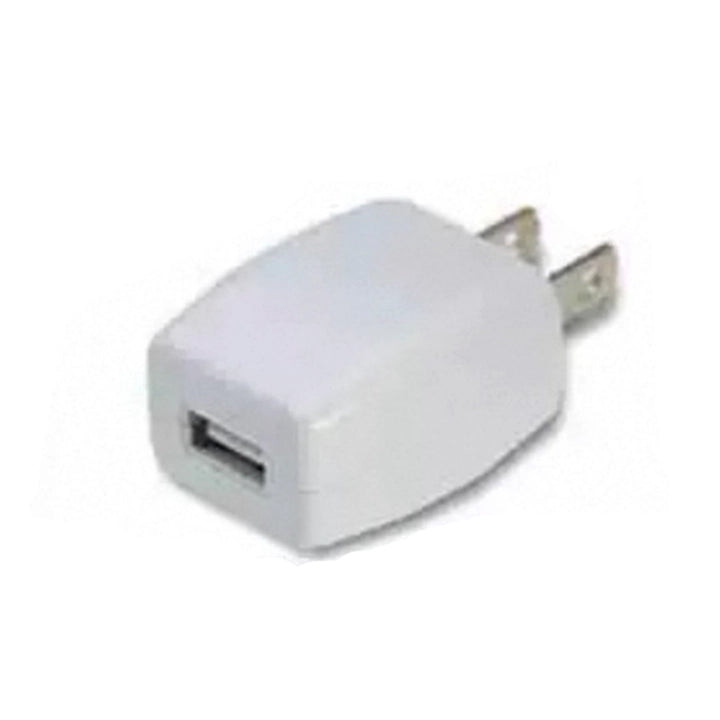

MEAN WELL GS05E-USB is a GS05E single-output AC/DC wall-plug power adapter rated at 5 VDC, 1.00 A and 5 W. Its Class II construction uses an integral two-pin European mains plug without protective earth. The output is a USB Type-A socket. Apply the stated output-current, power and ambient-temperature limits together.

Product Datasheet

Download MEAN WELL GS05E Datasheet (PDF)

The GS05E section is on PDF pages 3, 4. Refer to the complete mechanical drawings and notes when planning installation.

Model and Configuration

Complete order number GS05E-USB.
Safety model identifier GS05E.
Product category Single-Output AC/DC USB Power Adapter.
AC plug / electrical class Two-pin European plug; Class II, no protective-earth pin.
No-load power <0.075 W.
Energy efficiency Level VI; EU ErP and Code of Conduct (CoC) Version 5.
Limited-power classification LPS (Limited Power Source), as listed in the catalogue.
Case Fully enclosed plastic case.

Compact wall-plug design with a USB Type-A power output.

Model-Specific DC Output

Nominal output 5 VDC.
Rated output current 1.00 A.
Current range 0–1.00 A.
Catalogue-rated output power, maximum 5 W.
Ripple and noise, maximum 80 mVp-p.
Voltage tolerance ±5.0%.
Line regulation ±1.0%.
Load regulation ±5.0%.
Efficiency, typical 74.5%.

Observe the current and power limits together. The voltage set point is measured at the output connector terminals at 50% load.

Input and Timing

AC input 90–264 VAC; 47–63 Hz.
DC input 127–370 VDC.
AC input current 0.2 A at 100 VAC.
Inrush current, maximum 30 A at 230 VAC.
Leakage current, maximum 0.25 mA at 240 VAC.
Set-up / rise / hold-up at full load 1500 / 20 / 5 ms; standard measurement input 230 VAC.

Protection

Short circuit / overload 105–135% of rated output power; hiccup operation, automatically recovering when the abnormal load is removed.
Overvoltage 105–200% of rated output voltage, detected through the main control IC; hiccup operation, automatically recovering after the fault is removed.
Overtemperature output shutdown with automatic recovery after the temperature falls.

Cooling and Environmental Limits

Working ambient −20 to +50°C; apply derating.
Temperature/load curve 100% load from −20°C to 40°C, decreasing to 60% at 50°C.
Input/load curve 100% load across the specified 90–264 VAC range, subject to the temperature limits.
Working humidity 20–90% RH, non-condensing.
Storage −20 to +85°C; 10–95% RH.
Temperature coefficient ±0.03%/°C over 0–40°C.
Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis.

The maximum ambient temperature does not imply full rated load. Keep the unit within both its electrical and temperature limits.

Safety and Isolation

Catalogue-listed safety standards The specification table lists TUV BS EN/EN60950-1 and EAC TP TC 004 approvals.
Input/output withstand 4242 VDC.
Insulation resistance Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH.

Evaluate the finished equipment for its applicable safety and EMC requirements with the adapter connected in the intended configuration.

EMC

Emission / harmonic / flicker standards BS EN/EN55032 Class B; BS EN/EN61000-3-2 and -3-3; EAC TP TC 020.
Immunity standards BS EN/EN61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-8 and -4-11; Class A light-industrial criteria as listed, and EAC TP TC 020.

Dimensions and Connections

Dimensions, catalogue L × W × H 41.54 × 30.5 × 20 mm.
Output connector USB Type-A socket.
USB orientation Follow the connector-face drawing: contact 4 is +V and contact 1 is −V. Contacts 3 and 2 are N.C.
Mains-plug clearance The European plug projects beyond the 20 mm body thickness; the drawing separately marks its 18.2 mm base section.

This configuration uses a USB output socket. Select a compatible cable for the connected equipment; the catalogue section gives no separately orderable USB cable or DC-plug accessory code.

Reliability and Packing

Minimum MTBF ≥1100 thousand hours, MIL-HDBK-217F at 25°C.
Catalogue single-unit weight 32 g; explicit per-unit catalogue packing reference, not a measured shipping-package weight.
Carton packing 78 pieces / 4.6 kg / carton.
Manufacturer warranty 2 years, as stated in this catalogue.

Measurement Conditions and Datasheet

General measurement conditions Unless otherwise specified: 230 VAC, rated load, 25°C and 70% RH.
Ripple/noise method 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
Voltage-tolerance scope Includes set-point error, line regulation and load regulation.
Regulation measurements Line regulation: low to high input at rated load. Load regulation: 0–100% rated load.
Catalogue revision 2022-04-15; combined PDF pages 3–4.
