MEAN WELL GS06E series: Single-Output Industrial AC/DC Wall-Plug Power Adapter - GS06E-3P1J

Description

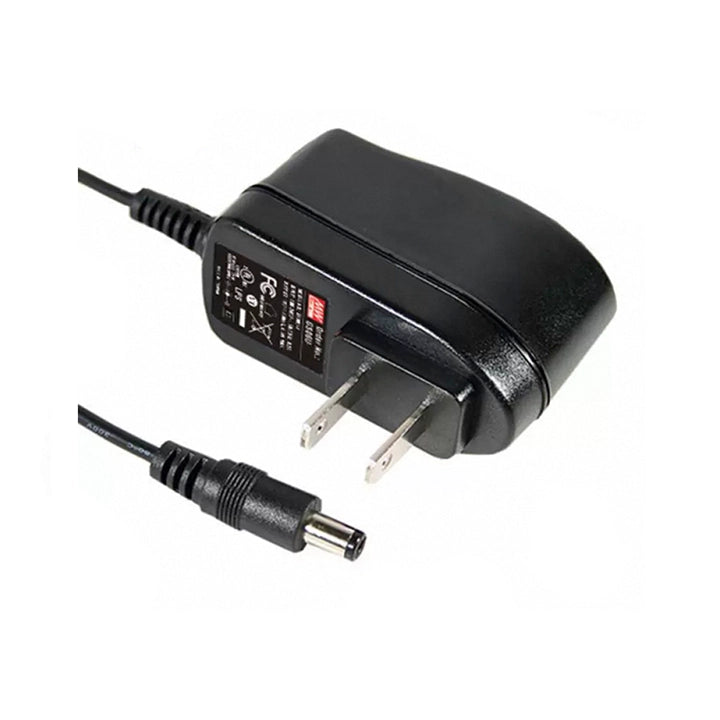

MEAN WELL GS06E-3P1J is a GS06E single-output AC/DC wall-plug power adapter rated at 12 VDC, 0.5 A and 6 W. Its Class II construction uses an integral two-pin European mains plug without protective earth. The standard P1J output plug is center positive. Apply the stated output-current, power and ambient-temperature limits together.

Product Datasheet

Download MEAN WELL GS06E Datasheet (PDF)

The GS06E section is on PDF pages 10, 11, 12, 13, 14. Refer to the complete mechanical drawings and notes when planning installation.

Model and Configuration

Complete order number GS06E-3P1J.
Safety model identifier GS06E-3.
Product category Single-Output Industrial AC/DC Wall-Plug Power Adapter.
AC plug / electrical class Two-pin European plug; Class II, no protective-earth pin.
No-load power <0.1 W.
Energy efficiency Level VI; EU ErP and Code of Conduct (CoC) Version 5.
Limited-power classification LPS (Limited Power Source), as listed in the catalogue.
Case Fully enclosed 94V-0 flame-retardant plastic case.

Suitable applications listed for this series include consumer electronics, telecommunications, office equipment and industrial equipment.

Model-Specific DC Output

Nominal output 12 VDC.
Rated output current 0.5 A.
Current range 0.01–0.5 A.
Catalogue-rated output power, maximum 6 W.
Ripple and noise, maximum 100 mVp-p.
Voltage tolerance ±5.0%.
Line regulation ±0.5%.
Load regulation ±5.0%.
Efficiency, typical 77%.

Observe the current and power limits together. The voltage set point is measured at the output connector terminals at 50% load.

Input and Timing

AC input 90–264 VAC; 47–63 Hz.
DC input 127–370 VDC.
AC input current 0.2 A at 100 VAC.
Inrush current, maximum Cold start: 30 A at 115 VAC; 50 A at 230 VAC.
Leakage current, maximum 0.25 mA at 240 VAC.
Set-up / rise at full load 1500 / 50 ms; standard measurement input 230 VAC.

Protection

Short circuit / overload >110% of rated output power; hiccup operation, automatically recovering when the abnormal load is removed.
Overvoltage >120% of rated output voltage; diode clamping.

Cooling and Environmental Limits

Working ambient 0 to +50°C; apply derating.
Temperature/load curve 100% load from 0°C to 40°C, decreasing to 70% at 50°C.
Input/load curve 100% load across the specified 90–264 VAC range, subject to the temperature limits.
Working humidity 20–90% RH, non-condensing.
Storage −20 to +85°C; 10–95% RH, non-condensing.
Temperature coefficient ±0.03%/°C over 0–40°C.
Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis.

The maximum ambient temperature does not imply full rated load. Keep the unit within both its electrical and temperature limits.

Safety and Isolation

Catalogue-listed safety standards TUV BS EN/EN62368-1 and EAC TP TC 004 approved, as listed in the specification table.
Input/output withstand 4242 VDC.
Insulation resistance Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH.

Evaluate the finished equipment for its applicable safety and EMC requirements with the adapter connected in the intended configuration.

EMC

Conducted / radiated emissions BS EN/EN55032 (CISPR32), Class B.
Harmonic current BS EN/EN61000-3-2, Class A.
Voltage flicker BS EN/EN61000-3-3.
ESD BS EN/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact.
RF field susceptibility BS EN/EN61000-4-3: Level 2, 3 V/m.
EFT bursts BS EN/EN61000-4-4: Level 2, 1 kV.
Surge susceptibility BS EN/EN61000-4-5: Level 3, 1 kV line-to-neutral.
Conducted susceptibility BS EN/EN61000-4-6: Level 2, 3 V.
Magnetic field immunity BS EN/EN61000-4-8: Level 1, 1 A/m.
Voltage dips / interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruption for 250 periods.

Dimensions and Connections

Dimensions, catalogue L × W × H 32 × 66 × 42.5 mm.
Body outline 66 ±1 mm long × 32 ±1 mm wide; body height 42.5 ±1 mm. The catalogue dimension field lists 32 × 66 × 42.5 mm.
Stepped outline / mains plug Stepped body height 62.5 ±1 mm; round-pin projection 19 ±0.5 mm.
Fixed DC cable UL2468, 24 AWG; 1800 mm, +150/−0 mm.
Standard output connector P1J tuning-fork plug: 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm length.
Polarity C+: center/inside positive, outside negative.

Optional DC Plugs and Accessories

Dimension order Outside diameter / inside diameter / insertion length, in mm.
Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5 mm; P1L: 5.5 / 2.5 / 9.5 mm; P1M: 5.5 / 2.5 / 11.0 mm; P1IR: 5.5 / 2.1 / 9.5 mm; P1JR: 5.5 / 2.1 / 11.0 mm; P1LR: 5.5 / 2.5 / 9.5 mm; P1MR: 5.5 / 2.5 / 11.0 mm.
Barrel alternatives P2I: 5.5 / 2.1 / 9.5 mm; P2J: 5.5 / 2.1 / 11.0 mm; P2L: 5.5 / 2.5 / 9.5 mm; P2M: 5.5 / 2.5 / 11.0 mm; P2IR: 5.5 / 2.1 / 9.5 mm; P2JR: 5.5 / 2.1 / 11.0 mm; P2LR: 5.5 / 2.5 / 9.5 mm; P2MR: 5.5 / 2.5 / 11.0 mm.
Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06 mm; P2K (761K): 5.53 / 2.54 / 12.06 mm; P2C (S760K): 5.53 / 2.03 / 9.52 mm; P2D (760K): 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent.
Minimum-pin alternatives P3A: 2.35 / 0.7 / 11.0 mm; P3B: 4.0 / 1.7 / 11.0 mm; P3C: 4.75 / 1.7 / 11.0 mm. EIAJ equivalent.
Center-pin alternatives P4A: 5.5 / 3.4 / 11.0 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11.0 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11.0 mm, center pin 0.6 mm. EIAJ equivalent.
R6B Locking three-pin male mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo; pin 2 −Vo.
R7B Locking four-pin male mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo; pins 2 and 3 −Vo.
R7BF Locking four-pin female mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo; pins 2 and 3 −Vo.
Stripped and tinned leads Custom termination: ribbed lead 1 = +Vo; letter-marked lead 2 = −Vo. Standard drawing lengths L = 25 mm and L1 = 10 mm; L1 may be customized.

P1J is the standard termination of this order number. Factory changes to the listed plug styles are available by request with a minimum order quantity. Quick adapters are sold separately without a minimum order quantity; they are not supplied merely because a style is listed here.

The quick-adapter table lists tuning-fork, center-pin, R6B and R7B types at 7.5 A maximum, and minimum-pin P3 types at 5 A maximum. The barrel, locking, R7BF and stripped/tinned entries have no quick-adapter availability listed. A connector rating does not increase the power adapter output rating.

Choose the mating dimensions and polarity required by the equipment. Keep the load within both the power-adapter limits and the selected connector limits.

Reliability and Packing

Minimum MTBF ≥500 thousand hours, MIL-HDBK-217F at 25°C.
Catalogue single-unit weight 100 g; explicit per-unit catalogue packing reference, not a measured shipping-package weight.
Carton packing 90 pieces / 10 kg / carton.
Manufacturer warranty 2 years, as stated in this catalogue.

Measurement Conditions and Datasheet

General measurement conditions Unless otherwise specified: 230 VAC, rated load, 25°C and 70% RH.
Ripple/noise method 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
Voltage-tolerance scope Includes set-point error, line regulation and load regulation.
Regulation measurements Line regulation: low to high input at rated load. Load regulation: 0–100% rated load.
Catalogue revision 2022-04-15; combined PDF pages 10–14.
