MEAN WELL GS06U series: Single-Output Industrial AC/DC Wall-Plug Power Adapter - GS06U-6P1J

Description

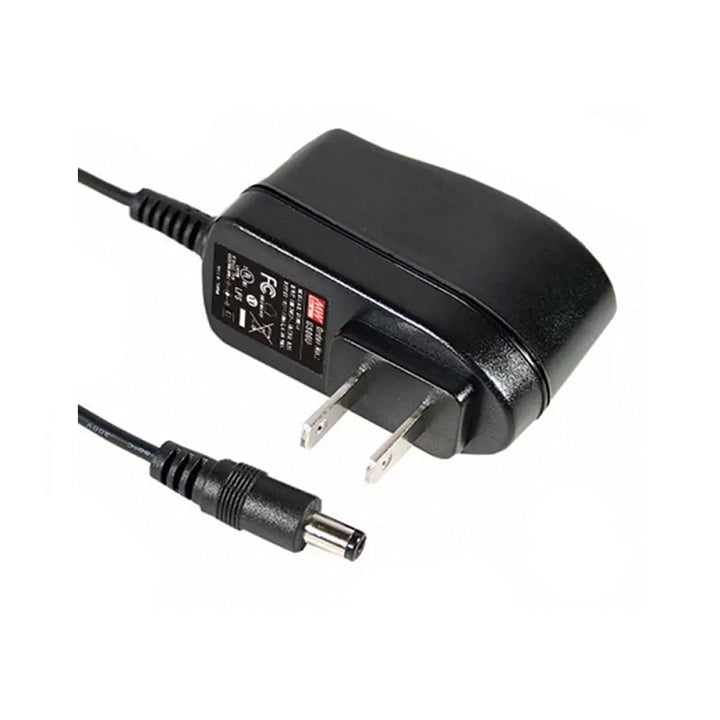

MEAN WELL GS06U-6P1J is a GS06U single-output AC/DC wall-plug power adapter rated at 24 VDC, 0.25 A and 6 W. Its Class II construction uses an integral two-pin US mains plug without protective earth. The standard P1J output plug is center positive. Apply the stated output-current, power and ambient-temperature limits together.

Product Datasheet

Download MEAN WELL GS06U Datasheet (PDF)

The GS06U section is on PDF pages 5, 6, 7, 8, 9. Refer to the complete mechanical drawings and notes when planning installation.

Model and Configuration

Complete order number GS06U-6P1J.
Safety model identifier GS06U-6.
Product category Single-Output Industrial AC/DC Wall-Plug Power Adapter.
AC plug / electrical class Two-pin US plug; Class II, no protective-earth pin.
No-load power <0.1 W.
Energy efficiency Level VI; USA EISA 2007 / DoE.
Limited-power classification LPS (Limited Power Source), as listed in the catalogue.
Case Fully enclosed 94V-0 flame-retardant plastic case.

Suitable applications listed for this series include consumer electronics, telecommunications, office equipment and industrial equipment.

Model-Specific DC Output

Nominal output 24 VDC.
Rated output current 0.25 A.
Current range 0.01–0.25 A.
Catalogue-rated output power, maximum 6 W.
Ripple and noise, maximum 180 mVp-p.
Voltage tolerance ±5.0%.
Line regulation ±0.5%.
Load regulation ±5.0%.
Efficiency, typical 81%.

Observe the current and power limits together. The voltage set point is measured at the output connector terminals at 50% load.

Input and Timing

AC input 90–264 VAC; 47–63 Hz.
DC input 127–370 VDC.
AC input current 0.2 A at 100 VAC.
Inrush current, maximum Cold start: 30 A at 115 VAC; 50 A at 230 VAC.
Leakage current, maximum 0.25 mA at 240 VAC.
Set-up / rise at full load 1500 / 50 ms; standard measurement input 115 VAC.

Protection

Short circuit / overload >110% of rated output power; hiccup operation, automatically recovering when the abnormal load is removed.
Overvoltage >120% of rated output voltage; diode clamping.

Cooling and Environmental Limits

Working ambient 0 to +50°C; apply derating.
Temperature/load curve 100% load from 0°C to 40°C, decreasing to 70% at 50°C.
Input/load curve 100% load across the specified 90–264 VAC range, subject to the temperature limits.
Working humidity 20–90% RH, non-condensing.
Storage −20 to +85°C; 10–95% RH, non-condensing.
Temperature coefficient ±0.03%/°C over 0–40°C.
Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis.

The maximum ambient temperature does not imply full rated load. Keep the unit within both its electrical and temperature limits.

Safety and Isolation

Catalogue-listed safety standards UL62368-1 and CSA C22.2 No.62368-1 approved, as listed in the specification table.
Input/output withstand 4242 VDC.
Insulation resistance Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH.

Evaluate the finished equipment for its applicable safety and EMC requirements with the adapter connected in the intended configuration.

EMC

Emission standards Conducted and radiated: FCC Part 15 / CISPR22 and CAN ICES-3(B)/NMB-3(B), Class B.

Dimensions and Connections

Dimensions, catalogue L × W × H 32 × 66 × 42.5 mm.
Body outline 66 ±1 mm long × 32 ±1 mm wide; body height 42.5 ±1 mm. The catalogue dimension field lists 32 × 66 × 42.5 mm.
Stepped outline / mains plug Stepped body height 48 ±1 mm; blade projection 17.1 ±0.5 mm.
Fixed DC cable UL2468, 24 AWG; 1800 mm, +150/−0 mm.
Standard output connector P1J tuning-fork plug: 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm length.
Polarity C+: center/inside positive, outside negative.

Optional DC Plugs and Accessories

Dimension order Outside diameter / inside diameter / insertion length, in mm.
Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5 mm; P1L: 5.5 / 2.5 / 9.5 mm; P1M: 5.5 / 2.5 / 11.0 mm; P1IR: 5.5 / 2.1 / 9.5 mm; P1JR: 5.5 / 2.1 / 11.0 mm; P1LR: 5.5 / 2.5 / 9.5 mm; P1MR: 5.5 / 2.5 / 11.0 mm.
Barrel alternatives P2I: 5.5 / 2.1 / 9.5 mm; P2J: 5.5 / 2.1 / 11.0 mm; P2L: 5.5 / 2.5 / 9.5 mm; P2M: 5.5 / 2.5 / 11.0 mm; P2IR: 5.5 / 2.1 / 9.5 mm; P2JR: 5.5 / 2.1 / 11.0 mm; P2LR: 5.5 / 2.5 / 9.5 mm; P2MR: 5.5 / 2.5 / 11.0 mm.
Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06 mm; P2K (761K): 5.53 / 2.54 / 12.06 mm; P2C (S760K): 5.53 / 2.03 / 9.52 mm; P2D (760K): 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent.
Minimum-pin alternatives P3A: 2.35 / 0.7 / 11.0 mm; P3B: 4.0 / 1.7 / 11.0 mm; P3C: 4.75 / 1.7 / 11.0 mm. EIAJ equivalent.
Center-pin alternatives P4A: 5.5 / 3.4 / 11.0 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11.0 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11.0 mm, center pin 0.6 mm. EIAJ equivalent.
R6B Locking three-pin male mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo; pin 2 −Vo.
R7B Locking four-pin male mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo; pins 2 and 3 −Vo.
R7BF Locking four-pin female mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo; pins 2 and 3 −Vo.
Stripped and tinned leads Custom termination: ribbed lead 1 = +Vo; letter-marked lead 2 = −Vo. Standard drawing lengths L = 25 mm and L1 = 10 mm; L1 may be customized.

P1J is the standard termination of this order number. Factory changes to the listed plug styles are available by request with a minimum order quantity. Quick adapters are sold separately without a minimum order quantity; they are not supplied merely because a style is listed here.

The quick-adapter table lists tuning-fork, center-pin, R6B and R7B types at 7.5 A maximum, and minimum-pin P3 types at 5 A maximum. The barrel, locking, R7BF and stripped/tinned entries have no quick-adapter availability listed. A connector rating does not increase the power adapter output rating.

Choose the mating dimensions and polarity required by the equipment. Keep the load within both the power-adapter limits and the selected connector limits.

Reliability and Packing

Minimum MTBF ≥500 thousand hours, MIL-HDBK-217F at 25°C.
Catalogue single-unit weight 100 g; explicit per-unit catalogue packing reference, not a measured shipping-package weight.
Carton packing 110 pieces / 12 kg / carton.
Manufacturer warranty 2 years, as stated in this catalogue.

Measurement Conditions and Datasheet

General measurement conditions Unless otherwise specified: 115 VAC, rated load, 25°C and 70% RH.
Ripple/noise method 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
Voltage-tolerance scope Includes set-point error, line regulation and load regulation.
Regulation measurements Line regulation: low to high input at rated load. Load regulation: 0–100% rated load.
Catalogue revision 2022-04-15; combined PDF pages 5–9.
