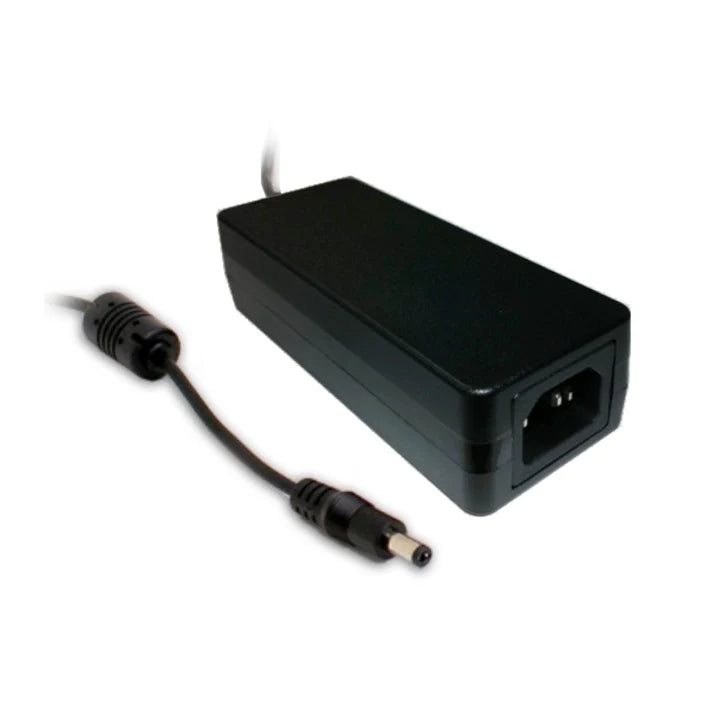

MEAN WELL GSM160B15-R7B is a Class II medical desktop power adapter supplying 15 VDC at 9.6 A, with a 144 W rated output. It uses a two-pole IEC320-C8 and a locking R7B four-pin DC plug. Its BF-rated design includes the listed home-healthcare standards. Apply the specified input and temperature derating.
Product Datasheet
Download MEAN WELL GSM160B Datasheet (PDF)
The GSM160B section is on PDF pages 46, 47, 48, 49, 50. Refer to the complete mechanical drawings and notes when planning installation.
Model and Rated Output
| Complete model |
GSM160B15-R7B. |
| Product type |
Single-output medical desktop AC/DC power adapter; Class II. |
| Nominal output |
15 VDC. |
| Rated output current |
9.6 A. |
| Operating current range |
0–9.6 A. |
| Rated output power |
144 W; subject to input and ambient-temperature derating. |
| Ripple and noise, maximum |
100 mVp-p. |
| Voltage tolerance |
±5.0%. |
| Line regulation |
±1.0%. |
| Load regulation |
±5.0%. |
| Efficiency, typical |
91%. |
| Model code |
GSM160B identifies this series and AC-inlet configuration; 15 identifies the nominal output voltage; R7B specifies the standard locking four-pin output plug. |
The rated power, current and voltage limits apply together. Select this exact output voltage and polarity for the equipment; the series wattage name does not replace the rating of this model.
Input, Timing and Energy Efficiency
| AC input |
80–264 VAC, 47–63 Hz. |
| DC input |
113–370 VDC. |
| AC inlet |
two-pole IEC320-C8. |
| AC input current, typical |
1.85 A at 115 VAC; 1 A at 230 VAC. |
| Cold-start inrush, typical |
90 A at 115 VAC; 110 A at 230 VAC. |
| Power factor, typical |
>0.93 at 230 VAC; >0.98 at 115 VAC, at full load. |
| Set-up / rise time at full load |
2000 / 50 ms at 230 VAC; 2500 / 50 ms at 115 VAC. |
| Hold-up time, typical |
24 ms at 230 VAC; 24 ms at 115 VAC, at full load. |
| No-load consumption |
<0.15 W. |
| Energy-efficiency framework |
Level VI and CoC Version 5; EISA 2007/DoE, NRCan, Australia/New Zealand MEPS and EU ErP. |
Use a suitable approved mains lead for the C8 inlet. Confirm whether the order includes the mains lead; the catalogue does not specify an AC cord as included.
Medical Isolation and Application
| Isolation design |
2 × MOPP primary-to-secondary isolation and a BF-rated design. |
| BF application |
BF-rated adapter design with the listed home-healthcare standards. |
| Touch current |
<100 µA at 264 VAC. |
| Primary-to-secondary withstand |
4 kVAC. |
| Insulation resistance |
Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH. |
MOPP stands for means of patient protection. The isolation and leakage ratings support medical-equipment design; they do not by themselves certify the complete medical device or its patient connections. Verify the required applied-part classification, installation and system-level safety for the actual equipment.
Protection
| Overload / short circuit |
Overload threshold 105–150% of rated output power; hiccup mode, with automatic recovery after the fault is removed. |
| Overvoltage |
105–135% of rated output voltage; output shuts down and requires re-powering. |
| Overtemperature |
Output shuts down; re-power after temperature has returned to a safe level. |
Cooling, Derating and Environment
| Operating ambient |
−30 to +70°C, subject to derating. |
| Horizontal temperature curve |
100% load from −30°C through 40°C; the curve marks 80% at 50°C and 50% at 70°C. |
| Input-voltage derating, 60 Hz |
80 VAC: 80% load; 100 VAC: 100% load; 264 VAC: 100% load. |
| Operating humidity |
20–90% RH, non-condensing. |
| Storage |
−40 to +85°C; 10–95% RH, non-condensing. |
| Temperature coefficient |
±0.03%/°C over 0–40°C. |
| Operating altitude |
Up to 3000 m. Above 2000 m, reduce the operating ambient-temperature limit by 3.5°C per additional 1000 m for this fanless adapter. |
| Vibration |
10–500 Hz, 2 G; 10 minutes per cycle and 60 minutes along each X, Y and Z axis. |
Apply input-voltage and temperature derating together. Use the horizontal orientation of the catalogue curve and provide ventilation around the case. Do not interpret the 70°C ambient endpoint or the 3000 m altitude as an unconditional full-power rating.
Mechanical Details, Cable and Weight
| Body dimensions, L × W × H |
175 × 72 × 35 mm; dimension tolerance ±1 mm. |
| Enclosure and indication |
94V-0 flame-retardant plastic enclosure with power-on LED. |
| DC cable |
UL2464, 18 AWG × 4 conductors; 1200 ±50 mm. |
| Standard output connector |
R7B locking four-pin Mini DIN male, KYCON KPPX-4P equivalent. |
| Catalogue single-unit weight |
660 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. |
| Carton packing |
20 pieces / 14.2 kg / 0.95 CUFT. |
Refer to PDF page 48 for the body, cable exit, ferrite and connector clearances. Body dimensions exclude the attached cable and plug.
Standard R7B Wiring
| Pins 1 and 4 |
+Vo. |
| Pins 2 and 3 |
−Vo. |
| Earth / output relationship |
Class II, with a two-pole mains inlet and no protective-earth connection. |
Use the pin numbering and connector view in the drawing. Confirm polarity and the mating interface before connecting the equipment; the shared connector shape does not make different output voltages interchangeable.
Optional Connectors and Ordering
| P1J |
Straight tuning-fork barrel: 5.5 mm outside diameter, 2.1 mm inside diameter and 11.0 mm length. |
| P1M |
Straight tuning-fork barrel: 5.5 mm outside diameter, 2.5 mm inside diameter and 11.0 mm length. |
| P1J / P1M quick-adapter limit |
P1J and P1M quick adapters are not listed as available for this 15 V model. The family table limits them to 24–48 V models. |
| R7BF |
Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo; pins 2 and 3 −Vo. |
| R1B |
Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. |
| MIC4 |
NEUTRIK XLR NC4FX equivalent: pins 1 and 2 +Vo; pins 3 and 4 −Vo. |
| C6P |
MOLEX 39-01-2060, 4.2 mm, equivalent: pins 1–3 +Vo; pins 4–6 −Vo. FG is not connected to this output connector. |
| C4P |
AMP 1-480702-0, 6.35 mm, equivalent: pins 1 and 2 +Vo; pins 3 and 4 −Vo. FG is not connected to this output connector. |
Changing the factory DC plug is a customized order with a minimum order quantity. Listed quick adapters are separate accessories, sold separately without a minimum order quantity; they are not included with the standard R7B adapter. R7BF, R1B, MIC4, C6P and C4P have no quick-adapter accessory listed in this table. Confirm the complete ordered assembly and its current rating before selecting a custom cable.
Stripped and tinned leads are available by request: group 1 is +Vo, with red/blue shown; group 2 is −Vo, with black/white shown. Colours are reference only and must be checked on the actual product. The standard drawing marks L = 25 mm and L1 = 5 mm; both lengths can be specified by request. This option has no separate complete order code printed.
Connector names above identify the catalogue cable configurations or named equivalents. Confirm the mating side, connector orientation, polarity and equipment clearance when ordering; these items are not a promise that a mating socket or custom plug is included.
Safety and EMC
| Listed safety standards |
IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. |
| Conducted and radiated emissions |
BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. |
| Harmonic current |
BS EN/EN61000-3-2: Class A. |
| Voltage flicker |
BS EN/EN61000-3-3. |
| Immunity framework |
BS EN/EN60601-1-2 and BS EN/EN61204-3. |
| ESD, EN61000-4-2 |
Level 4, 15 kV air discharge and 8 kV contact discharge. |
| Radiated RF, EN61000-4-3 |
Level 3: 10 V/m over 80 MHz–2.7 GHz; the table additionally lists 9–28 V/m over 385 MHz–5.78 GHz under Table 9. |
| EFT, EN61000-4-4 |
Level 3, 2 kV. |
| Surge, EN61000-4-5 |
Level 3: 1 kV line-to-line. |
| Conducted RF, EN61000-4-6 |
Level 3, 10 V. |
| Power-frequency magnetic field, EN61000-4-8 |
Level 4, 30 A/m. |
| Voltage dips / interruptions, EN61000-4-11 |
100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. |
Reconfirm EMC and safety compliance in the complete equipment with the actual load, cable and installation. A listed adapter standard does not replace the final-system assessment.
Measurement Conditions and Reliability
| General test conditions |
Unless otherwise stated: 230 VAC input, rated load, 25°C and 70% RH. |
| Output-voltage measurement |
At the plug terminal with 50% load. |
| Ripple and noise method |
20 MHz bandwidth; 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. |
| Minimum MTBF |
2191.3 thousand hours by Telcordia SR-332; 239.1 thousand hours by MIL-HDBK-217F at 25°C. |
| Catalogue lifetime feature |
>110 thousand hours is the listed series lifetime feature; actual service life depends on operating conditions. |
| Manufacturer warranty |
3 years, subject to manufacturer warranty terms. |
| Catalogue revision |
Specification table 2026-05-09; cover, mechanical and connector sheets 2026-04-03; combined PDF pages 46–50. |
Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated switching may increase it.
