MEAN WELL GSM60B series: Medical AC/DC Desktop Power Adapter - GSM60B12-P1J

Description

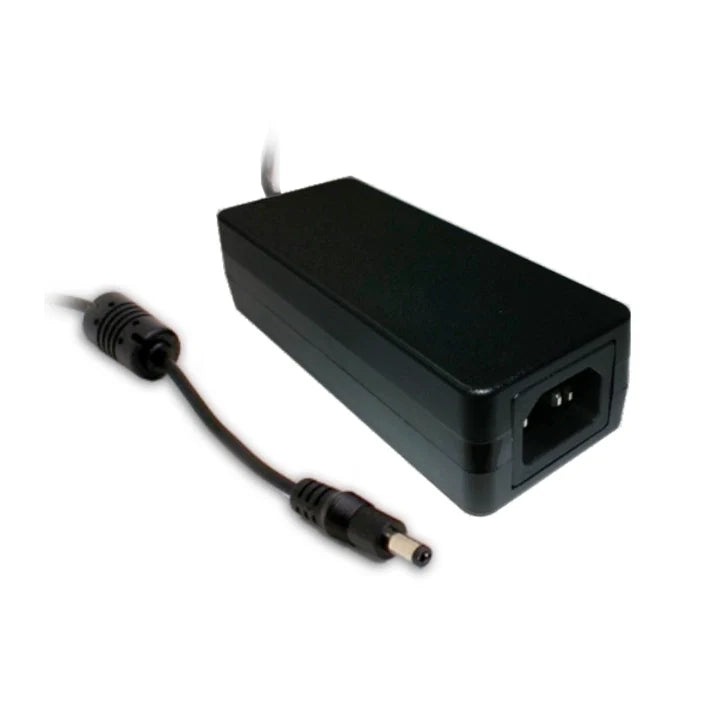

MEAN WELL GSM60B12-P1J is a GSM60B single-output medical AC/DC desktop power adapter rated at 12 VDC, 5 A and 60 W. Its Class II construction uses a two-pole IEC320-C8 AC inlet without protective earth. The standard P1J tuning-fork DC plug is center-positive, with a 5.5 mm outer diameter, 2.1 mm inner diameter and 11 mm nominal length. Apply the stated load and derating limits.

Product Datasheet

Download MEAN WELL GSM60B Datasheet (PDF)

The GSM60B section is on PDF pages 16, 17, 18, 19, 20. Refer to the complete mechanical drawings and notes when planning installation.

Model and Configuration

Complete order number GSM60B12-P1J.
Product category Single-output medical AC/DC desktop power adapter.
Input class / inlet Class II; IEC320-C8; double insulation, no FG.
Standard output termination P1J tuning fork; 5.5 mm OD × 2.1 mm ID × 11 mm nominal length; center positive.
Enclosure / indication Fully enclosed 94V-0 flame-retardant plastic case; power-on LED.
No-load power <0.1 W.
Energy efficiency Level VI for this voltage model; CoC Version 5.

The series lists compliance with USA EISA 2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP. Use the efficiency level specified for this particular voltage model.

Model-Specific DC Output

Nominal DC voltage 12 VDC.
Rated current 5 A.
Current range 0–5 A.
Rated output power, maximum 60 W.
Ripple and noise, maximum 100 mVp-p.
Voltage tolerance ±3.0%.
Line regulation ±1.0%.
Load regulation ±3.0%.
Typical efficiency 88%.

Observe the current range and rated power together. The output-voltage set point is measured at the DC plug terminals at 50% load.

Input and Timing

AC input 80–264 VAC; 47–63 Hz.
AC input current, typical 1.4 A at 115 VAC; 1 A at 230 VAC.
Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC.
Leakage current, maximum Touch current <50 µA at 264 VAC.
Set-up / rise time, full load 1000 / 30 ms at 230 VAC; 1500 / 30 ms at 115 VAC.
Hold-up time, typical at full load 50 ms at 230 VAC; 16 ms at 115 VAC.

Select a regional mains cord suitable for the inlet and load. A detachable AC cord is not established as included by this catalogue. Set-up time is measured at the first cold start; repeated ON/OFF operation may increase it.

Protection

Short circuit / overload 105–160% of rated output power; hiccup operation, automatically recovering after the fault is removed.
Overvoltage 12.6–16.2 V; output shuts down; re-power to recover.
Overtemperature Output shuts down; re-power to recover.

Cooling and Operating Limits

Working ambient −30 to +70°C, subject to the horizontal-installation derating curve.
Temperature derating 100% load from −30 to 50°C, decreasing linearly to 50% at 70°C.
Input derating, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% through 264 VAC.
Working humidity 20–90% RH, non-condensing.
Storage −40 to +85°C; 10–95% RH, non-condensing.
Temperature coefficient ±0.03%/°C over 0 to 40°C.
Operating altitude Up to 3000 m; above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for this fanless adapter.
Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis.

Use the temperature and input-voltage limits together. The maximum ambient temperature is not an unconditional full-load rating.

Medical Isolation and Safety

Means of patient protection Primary to secondary: 2 × MOPP.
Dielectric withstand Input/output: 4 kVAC.
Insulation resistance Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH.
Catalogue safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004.

The medical ratings apply to the adapter. Final equipment must be assessed for its actual patient connections, applied-part classification, isolation and EMC requirements.

The B-type series is presented for BF applications and lists the home-healthcare standard IEC60601-1-11; this does not by itself certify the complete medical device as BF.

EMC

Conducted / radiated emissions Class B: BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22.
Harmonics / flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3.
Immunity standards BS EN/EN60601-1-2; BS EN/EN61204-3.
ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact.
RF susceptibility EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz.
EFT / surge EN61000-4-4: Level 3, 2 kV. EN61000-4-5: Level 3, 1 kV line-to-line.
Conducted / magnetic immunity EN61000-4-6: Level 3, 10 V; EN61000-4-8: Level 4, 30 A/m.
Voltage dips / interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, and 100% interruption for 250 periods.

The adapter is an independent unit; compliance of the complete equipment with the applicable EMC requirements must be confirmed in its final installation.

Dimensions, Cable and Standard Plug

Enclosure, L × W × H 125 × 50 × 31.5 mm; mechanical drawing tolerance ±1 mm.
Attached DC cable UL2464 16 AWG, 1000 ±50 mm.
Plug projection 11 ±0.5 mm; the drawing also marks a 70 ±10 mm cable-end section.
P1J polarity Inside contact positive (+); outside contact negative (−).

Use the dimensional drawing for placement and the supplied connector identification for mating. The plug dimensions and polarity must match the equipment input.

Optional DC Plug Types

P1I straight tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum.
P1L straight tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum.
P1M straight tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum.
P1IR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum.
P1JR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 11 mm. Quick adapter available, 7.5 A maximum.
P1LR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum.
P1MR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum.
P2I straight barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed.
P2J straight barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed.
P2L straight barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed.
P2M straight barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed.
P2IR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed.
P2JR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed.
P2LR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed.
P2MR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed.
P2S locking; OD × ID × L: 5.53 × 2.03 × 12.06 mm. SWITCHCRAFT S761K original or equivalent. Custom cable option; no quick adapter listed.
P2K locking; OD × ID × L: 5.53 × 2.54 × 12.06 mm. SWITCHCRAFT 761K original or equivalent. Custom cable option; no quick adapter listed.
P2C locking; OD × ID × L: 5.53 × 2.03 × 9.52 mm. SWITCHCRAFT S760K original or equivalent. Custom cable option; no quick adapter listed.
P2D locking; OD × ID × L: 5.53 × 2.54 × 9.52 mm. SWITCHCRAFT 760K original or equivalent. Custom cable option; no quick adapter listed.
P3A minimum-pin; OD × ID × L: 2.35 × 0.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum.
P3B minimum-pin; OD × ID × L: 4.0 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum.
P3C minimum-pin; OD × ID × L: 4.75 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum.
P4A center-pin; OD × ID × L: 5.5 × 3.4 × 11 mm. Center pin 1.0 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum.
P4B center-pin; OD × ID × L: 6.5 × 4.4 × 11 mm. Center pin 1.4 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum.
P4C center-pin; OD × ID × L: 7.4 × 5.1 × 11 mm. Center pin 0.6 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum.

The supplied standard model uses P1J. A custom cable with a different plug is subject to the applicable minimum order quantity. Listed quick adapters are sold separately without a minimum order quantity.

Select the exact dimensions, polarity and current rating for the load. The accessory current rating does not increase the adapter rating; a 5 A quick adapter cannot carry a load above 5 A.

Optional Multi-Pin and Lead Terminations

R6B Locking three-pin male mini-DIN; KYCON KPPX-3P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 +Vo. Quick adapter available, 7.5 A maximum.
R7B Locking four-pin male mini-DIN; KYCON KPPX-4P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. Quick adapter available, 7.5 A maximum.
R7BF Locking four-pin female mini-DIN; KYCON KPJX-CM-4S equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. No quick adapter listed.
R1B Five-pin male DIN; pin 1 −Vo, pin 2 −Vo, pin 3 +Vo, pin 4 −Vo, pin 5 +Vo. Quick adapter available, 7.5 A maximum.
Stripped and tinned option By customer request: conductor 1 = +Vo; conductor 2 = −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request.
Lead colors The red/black illustration is for reference only; follow the actual supplied product.

Use the numbered connector-face drawing to establish orientation. These are optional connection types, not additional connectors included with the P1J adapter.

Weight, Reliability and Measurement Notes

Catalogue unit weight 320 g, converted from the per-unit PACKING entry; not a measured shipment weight.
Carton packing 40 pieces / 13.8 kg / 1.04 CUFT.
Lifetime reference Catalogue feature: >95,000 hours; this is distinct from MTBF.
MTBF, minimum estimate 3491.2 thousand hours, Telcordia SR-332 (Bellcore); 694.3 thousand hours, MIL-HDBK-217F at 25°C.
Manufacturer warranty 3 years, subject to applicable terms.
Catalogue revision 2026-05-09; physical PDF pages 16–20.

Unless specified otherwise, ratings are measured at 230 VAC, rated load, 25°C and 70% RH. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low to high input at rated load.
