Description
Rated output current: 2.7A Output power rating: 97.2W Output constant current range: 21.6~36V Output open circuit voltage (maximum):37V Input voltage: 90 ~ 305VAC,127 ~ 431VDC PCB type Function: Three-in-one dimming function (1 ~ 10Vdc,10V PWM signal and resistance), standard product Size (mm):ø104X34
Product Features
1. Constant current mode (HBG-60P/100P).
2. Constant current mode + constant voltage mode output (HBG-160P/240P).
3. International universal full range input: 90 ~ 305VAC(HBG-60P maximum 295VAC).

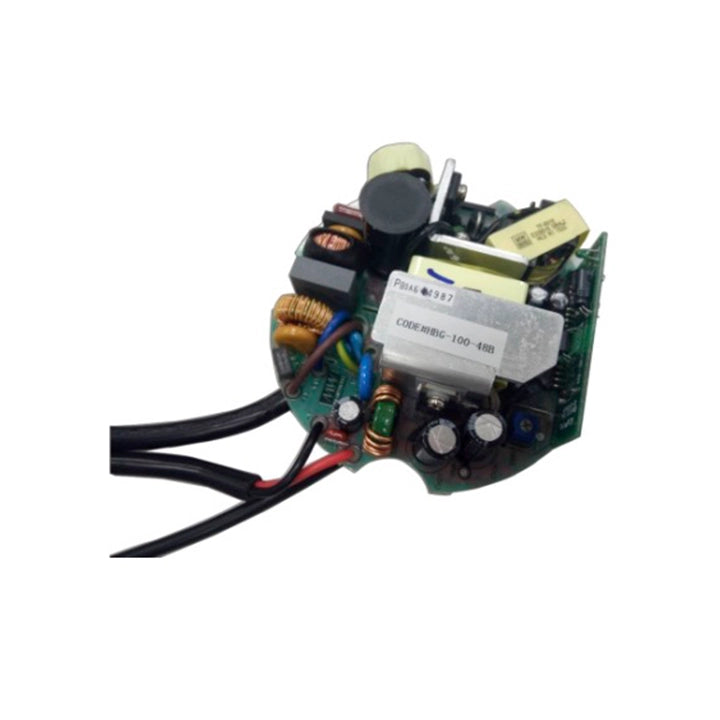

4. Circular PCB design.
5. Built-in active PFC function.
6, the highest efficiency of 93.5 per cent.
7. A variety of functions can be selected: output current adjustable, three-in-one dimming.
8. Protection type: short circuit/over temperature, 5 years warranty.
