Description
Output current rating: 2100mA Output power rating: 60.9W Output constant current range: 19~29V Output open circuit voltage (maximum):35V Output current adjustment range: 1360mA ~ 2100mA Input voltage: 90 ~ 295VAC,127 ~ 417VDC PCB type Size (mm):ø99X26
Product Features
1. Constant current mode (HBG-60P/100P).
2. Constant current mode + constant voltage mode output (HBG-160P/240P).
3. International universal full range input: 90 ~ 305VAC(HBG-60P maximum 295VAC).

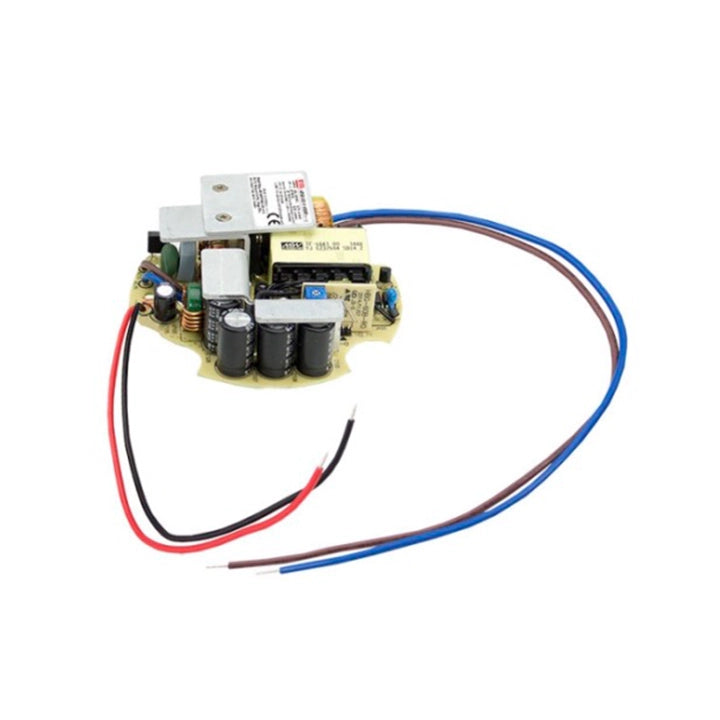

4. Circular PCB design.
5. Built-in active PFC function.
6, the highest efficiency of 93.5 per cent.
7. A variety of functions can be selected: output current adjustable, three-in-one dimming.
8. Protection type: short circuit/over temperature, 5 years warranty.
