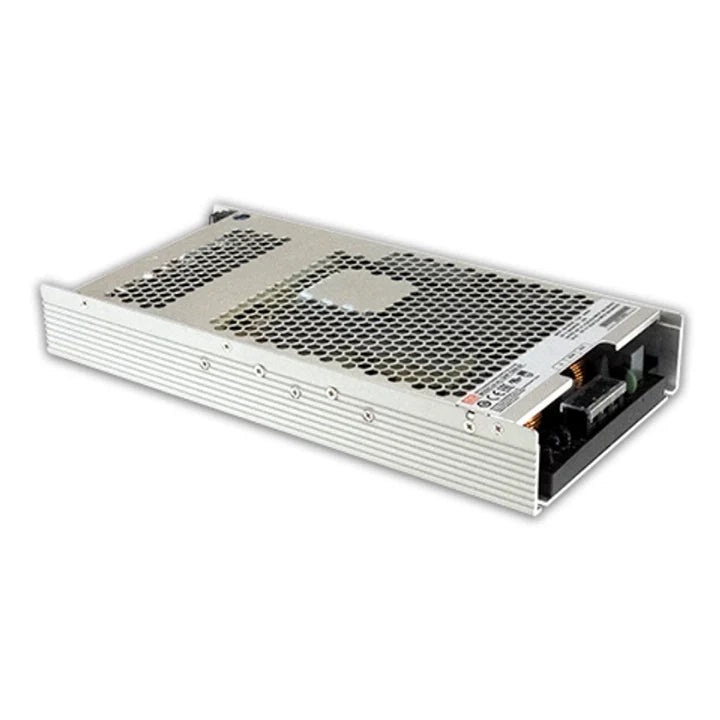

Description
Rated power: 2300W Input voltage: 90 ~ 305VAC,250 ~ 431VDC Output voltage: 230V Output current: 0 ~ 10.6A Size (mm):375X280X88 Input/output type: terminal block type Communication protocol: PMBus and PV/PC communication protocol, optional
Product Features
1. International universal full range input: 90 ~ 305VAC.
2. Active PFC, efficiency up to 95.5%, fanless design, conduction of natural convection heat dissipation.
3. Aluminum shell, filled with thermal adhesive, can withstand 10G vibration test.
4, -40 ~ +70 ℃ wide working temperature.
5. Built-in CANBus and PMBus optional, output voltage and current programmable.
6. Built-in remote control ON/OFF control and DC OK signal, 12V@0.5A auxiliary power output.
7. LED power start indicator.
8. Protection type: short circuit/overload/overvoltage/over temperature, 6 years warranty.
