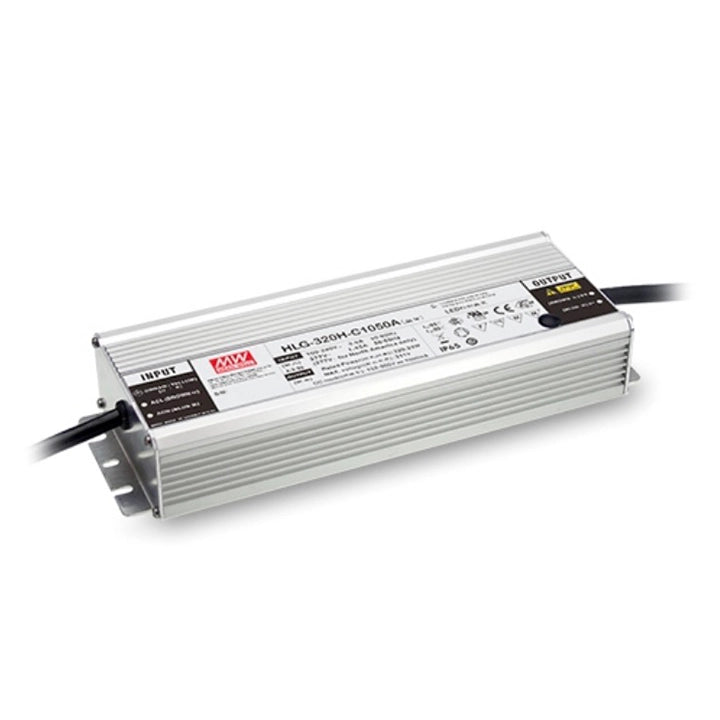

HLG-320H-C1400DX Constant Current LED Driver

MEAN WELL HLG-320H-C1400DX is a constant-current LED driver rated at 1400 mA and 320.6 W, with a 114–229 V constant-current operating region. This IP67 metal-case Class I version provides smart timer dimming. Select the LED string for this current and voltage window and apply the input and temperature derating limits below.

Download MEAN WELL HLG-320H-C Datasheet (PDF)Download MEAN WELL LED Installation Manual

Catalog reference: HLG-320H-C, PDF pages 50–58, revision 2026-02-04.

Model selection

Full model and series	HLG-320H-C1400DX; HLG-320H-C
Suffix and configuration	Smart timer dimming. Optional execution by manufacturer request; confirm the required timer profile when ordering.
Construction and protection rating	Metal housing; Class I protective-earth design; IP67. Fanless free-air convection cooling. Installation restrictions still apply.
Driving method	Constant-current operation directly drives the LEDs. The LED string and end-system configuration determine the operating output voltage within the specified constant-current region. Contact MEAN WELL if load compatibility is uncertain.

Output ratings

Rated output current	1400 mA
Rated output power	320.6 W
Constant-current voltage region	114–229 V
Open-circuit voltage (maximum)	234 V
Current tolerance and ripple	±5% current tolerance; current ripple 5.0% maximum at rated current
Efficiency (typical)	94%
Temperature coefficient	±0.03%/°C (0–50°C)

Input and power quality

Input voltage	90–305 VAC; 127–417 VDC. Apply the static input-voltage derating curve.
Input frequency	47–63 Hz
AC input current (typical)	3.5 A / 1.65 A / 1.45 A at 115 / 230 / 277 VAC respectively
Power factor (typical)	≥0.98 / ≥0.95 / ≥0.92 at 115 / 230 / 277 VAC respectively, full load; built-in active PFC
Total harmonic distortion	THD <20% at load ≥50% on 115/230 VAC and ≥70% on 277 VAC
Setup time	1000 ms at 115 VAC; 500 ms at 230 VAC. Measured at first cold start; turning the driver ON/OFF may increase setup time.
Inrush current (typical)	70 A; 1200 µs pulse width measured at 50% peak current, cold start at 230 VAC; NEMA 410
16 A circuit-breaker reference	At 230 VAC: maximum 2 units on a type B breaker or 3 units on a type C breaker, per the model catalog. Confirm the actual protection and installation conditions.
Leakage current	<0.75 mA at 277 VAC
Input/load derating	At 60 Hz: 80% load at 90 VAC, rising to 100% at 110 VAC; 100% is shown from 110 to 305 VAC. Observe the simultaneous thermal and output limits.

Adjustment and control

Timer function	Smart timer dimming is available by request. Confirm the required customer profile with MEAN WELL; the catalog examples are not a guarantee of the delivered preset.
Adaptive timing	The example profiles use elapsed operating time over a 14-hour reference cycle and adaptive operation. Specify the desired profile and application conditions.
Example D01 (elapsed hours)	0–6 h: 100%; 6–7 h: 70%; 7–11 h: 50%; 11–14 h: 70% output current.
Example D02 (elapsed hours)	0–1 h: 50%; 1–3 h: 80%; 3–8 h: 100%; 8–11 h: 60%; 11–14 h: 80% output current.
Example D03 (elapsed hours)	0–1.5 h: 70%; 1.5–11 h: 100%; 11–14 h: 70% output current.
Requested timer build	Confirm the requested DX timing execution and its supplied wiring drawing with the manufacturer. The timer suffix is distinct from the external analog or DALI versions.

Protection and insulation

Short-circuit protection	Constant-current limiting; automatically recovers after the fault is removed.
Overvoltage protection	235–252 V. Shuts down the output; re-power on to recover.
Overtemperature protection	Shuts down the output; re-power on after removing the fault to recover.
Dielectric withstand	Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC
Insulation resistance	100 MΩ at 500 VDC / 25°C / 70% RH, input–output, input–FG and output–FG

Temperature and operating conditions

Working case temperature	Tcase −40 to +85°C; maximum case temperature +85°C. Case temperature is not ambient temperature.
Ambient-temperature/load curve	Horizontal mounting: 100% load through +50°C at 110 VAC, or +60°C at 230 VAC; derate along the applicable curve to 60% load at +70°C. The ambient curve ends there. Maintain the case-temperature limit simultaneously.
Case-temperature/load curve	The horizontal-mounting Tcase curve shows 100% load from −40°C through +85°C, then ends. This does not override ambient or low-input derating.
Working humidity	20–95% RH, non-condensing
Storage conditions	−40 to +80°C; 10–95% RH
Altitude derating	Above 2000 m (6500 ft), reduce ambient-temperature allowance by 3.5°C per additional 1000 m for this fanless driver.
Vibration	10–500 Hz; 5 G; 12 minutes per cycle; 72 minutes along each X, Y and Z axis.
Specification and performance-plot conditions	Unless otherwise stated, specifications are measured at 230 VAC input, rated current and 25°C ambient. PF plots use Tcase 75°C; THD and efficiency plots illustrate the 1050 mA model at that case temperature and do not replace the specific model ratings.

Mechanical details and installation

Dimensions and case	252 × 90 × 43.8 mm (L × W × H); case No. 228. Drawing tolerance ±1 mm unless otherwise specified.
Mounting	Four Ø4.5 mm mounting holes; 225.2 mm main case body length excluding end flanges. Use the catalog mechanical drawing for exact fixing geometry.
Case-temperature measuring point	The tc point is shown 81.6 mm from the right inner end line and 45 mm from the lower edge in the mechanical drawing.
Input cable and polarity	Catalog drawings for depicted versions show: AC/L brown; AC/N blue; FG green/yellow. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. Connect FG to protective earth. DX wiring is not separately drawn; confirm the supplied wiring drawing for this DX model before installation.
Output cable and polarity	Catalog drawings for depicted versions show: Vo+ brown; Vo− blue. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm²; 300 ±20 mm. DX wiring is not separately drawn; confirm the supplied wiring drawing for this DX model before installation.
Unit mass (catalog packing reference)	1880 g (1.88 kg per unit; 8 pcs / 16 kg / 0.92 CUFT per carton). This is the catalog unit reference, not a measured shipment weight.
Installation safety	Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself.
Ventilation and mounting	Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements.
System wiring and protection	Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system.
Environmental and load limits	Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person.
Connection seals and support	If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications.
Protective-earth installation	Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram.
Timer ordering	This DX version uses customer-defined smart-timer dimming by request. Confirm the ordered profile and operating procedure with MEAN WELL; DX does not mean DALI or DALI-2.

Standards and service conditions

Safety standards	UL8750 (Type HL), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13; BS EN/EN62384 independent; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; IP67 for this suffix.
Type HL application	Type HL LED-driver application for Class I, Division 2 hazardous-location luminaires. The complete luminaire must satisfy its installation and certification requirements.
EMC emissions	BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; EAC TP TC 020.
EMC immunity	BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547, light-industry level; surge immunity line–earth 4 kV and line–line 2 kV; EAC TP TC 020.
ErP installation condition	For the stated lighting-fixture ErP application, install behind a switch and do not permanently connect the driver to the mains.
Typical life and warranty	The catalog states typical life expectancy >62,000 operating hours when Tcase, especially the tc point/TMP, is approximately 75°C or lower. The manufacturer specifies a 7-year warranty subject to its warranty statement and conditions.
MTBF	1847.6K h minimum, Telcordia SR-332 (Bellcore); 182.3K h minimum, MIL-HDBK-217F at 25°C. MTBF is a reliability estimate, not a service-life or warranty guarantee.
