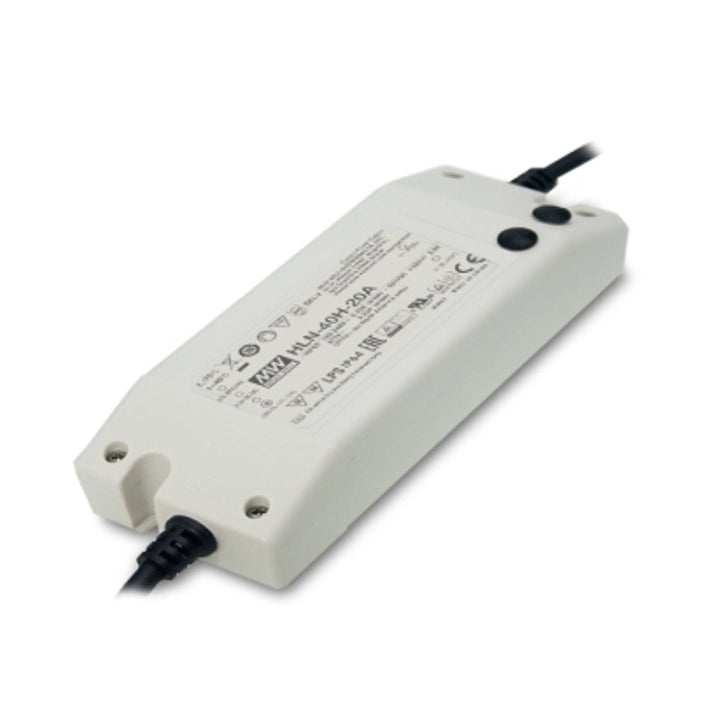

Description
Output voltage: 30V Output constant current range: 18~30V Output current: 0 ~ 1.34A Rated power: 40.2W Input voltage: 90 ~ 305VAC or 127 ~ 431VDC Input frequency: 47~63Hz IP64 level, constant current value can be adjusted by adding 1~10V DC voltage or 10V PWM signal or resistance Size (mm):161X61.5X35
Click to download Airtac product catalog
Product Features
1. International universal AC input range (up to 305VAC), with active PFC function.
2. Protection type: short circuit/over current/over voltage/over temperature, natural air cooling.
3. OCP value can be adjusted by output line and internal potentiometer, and the sealed plastic shell meets IP64 grade.
4. Class 2 power supply, optional dimming function (1 ~ 10Vdc or PWM signal or resistance), suitable for LED lighting, industrial lighting and electronic subtitle screen and other applications, in line with the world's lighting equipment safety standards.
5. It can be applied to dry/humid and outdoor environments with a 3-year warranty.
