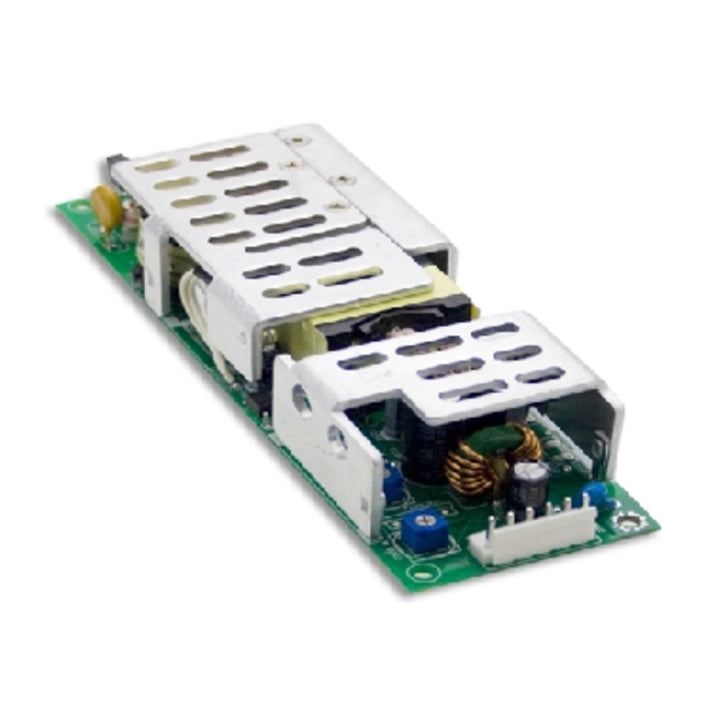

MEAN WELL HLP-80H series: single output switching power supply - HLP-80H-20

Description

Output voltage: 20V Output constant current range: 12~20V Output current: 0 ~ 4A Rated power: 80W Input voltage: 90 ~ 305VAC,127 ~ 431VDC Input frequency: 47~63Hz Size (mm):167X53X29.5

Click to download Airtac product catalog

Product Features

1. International universal AC input range (up to 305VAC), with active PFC function.

2. Protection type: short circuit/over current/over voltage/over temperature, natural air cooling, output constant current value adjustable.

3. Class 2 power supply, 100% full load aging, optional dimming function (1 ~ 10Vdc or PWM signal or resistance), suitable for LED lighting applications.

4, can be applied to dry/wet environment, 3 years warranty.

MEAN WELL HLP-80H series: single output switching power supply - HLP-80H-20

Product form

Output voltage: 20V Output constant current range: 12~20V Output current: 0 ~ 4A Rated power: 80W Input voltage: 90 ~... Read more

$103.71 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Output voltage: 20V Output constant current range: 12~20V Output current: 0 ~ 4A Rated power: 80W Input voltage: 90 ~ 305VAC,127 ~ 431VDC Input frequency: 47~63Hz Size (mm):167X53X29.5

    Click to download Airtac product catalog

    Product Features

    1. International universal AC input range (up to 305VAC), with active PFC function.

    2. Protection type: short circuit/over current/over voltage/over temperature, natural air cooling, output constant current value adjustable.

    3. Class 2 power supply, 100% full load aging, optional dimming function (1 ~ 10Vdc or PWM signal or resistance), suitable for LED lighting applications.

    4, can be applied to dry/wet environment, 3 years warranty.
