MEAN WELL HVGC-65 series: Constant Current LED Driver - HVGC-65-1050A

Description

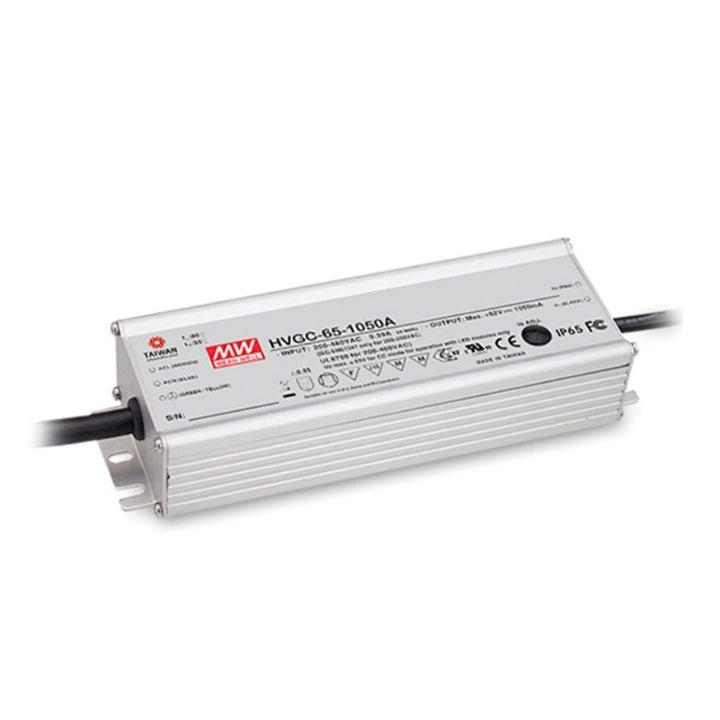

HVGC-65-1050A LED driver

MEAN WELL HVGC-65-1050A is a 65.1 W, 1050 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP65 design supports suitable indoor or outdoor installations subject to the installation requirements. Output current adjustable through the built-in potentiometer.

Download MEAN WELL HVGC-65 Datasheet (PDF)Download MEAN WELL LED Installation Manual

HVGC catalog, PDF pages 1–9. Use the exact output and function suffix when selecting the driver.

Output and function

Rated output 1050 mA constant current; 65.1 W rated power.
Constant current region 6–62 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions.
Current accuracy Current tolerance: ±5%. Current ripple: 5% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery.
Function and ingress rating A type; IP65. Output current adjustable through the built-in potentiometer.
Current adjustment 630–1050 mA through the built-in Io ADJ potentiometer; output voltage adjustment is not specified.
LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits.
Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory.

Input and performance

Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits.
AC current and power factor Typical AC current: 0.22 A at 347 VAC; 0.18 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC.
Efficiency and harmonic distortion Typical efficiency: 90%. THD <20% at loads ≥60% at 230, 277 and 347 VAC; 75% at 480 VAC.
Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time.
Mains loading Typical cold-start inrush: 25 A; 420 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 12 / 20.
Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated.

Protection

Short circuit Constant current limiting; automatic recovery when the fault is removed.
Overvoltage 65–72 V; shuts down output voltage, with automatic recovery or re-power recovery.
Overtemperature Shuts down output voltage; automatic recovery after the temperature falls.

Temperature and reliability

Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling.
Input and altitude derating The 60 Hz static-input graph shows 100% load from 180 to 528 VAC, while its caption says low-input derating is needed. Obtain MEAN WELL confirmation for low-input operation; the graph does not provide a separate numerical breakpoint. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design.
Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis.
Operating curves PFC switching frequency 65 kHz; PWM switching frequency 75 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 700 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option.
Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 75°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–65°C, 70,000 h at 70°C, 50,000 h at 75°C and 35,000 h at 80°C. MTBF: 2164.4K hours minimum, Telcordia SR-332 (Bellcore); 202.8K hours minimum, MIL-HDBK-217F at 25°C.
Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions.

Mechanical details and wiring

Dimensions 189 × 61.5 × 36.8 mm (L × W × H); case 957; drawing tolerance ±1 mm.
Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 32 mm, and main case body length 165 mm excluding end mounting flanges. Use the full drawing for fixing positions.
Temperature measurement point The marked tc point is 82.5 mm from the main case right edge and 30.75 mm from the bottom edge; use this point for case-temperature verification.
Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: SJTW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm.
Control leads No external DIM lead is shown for this suffix.
Unit weight and packing 0.77 kg (770 g) per unit. Carton reference: 18 pcs / 14.9 kg / 0.89 CUFT. Per-unit mass is separately stated in the specification.

Safety and EMC

Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation.
Safety standards UL 8750; CSA C22.2 No. 250.13-12; ENEC BS EN/EN 61347-1 and 61347-2-13; BS EN/EN 62384 (independent); EAC TP TC 004.
Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths.
EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥60% load; BS EN/EN 61000-3-3; FCC Part 15 Subpart B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line.
System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses.

Accessories and applications

Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output.
Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately.
Applications LED street, high-bay, parking-space and fishing-lamp lighting.

Installation manual requirements

Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself.
Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements.
System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system.
Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person.
Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications.
Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram.
Weather protection This model is IP65 and must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.

Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.
