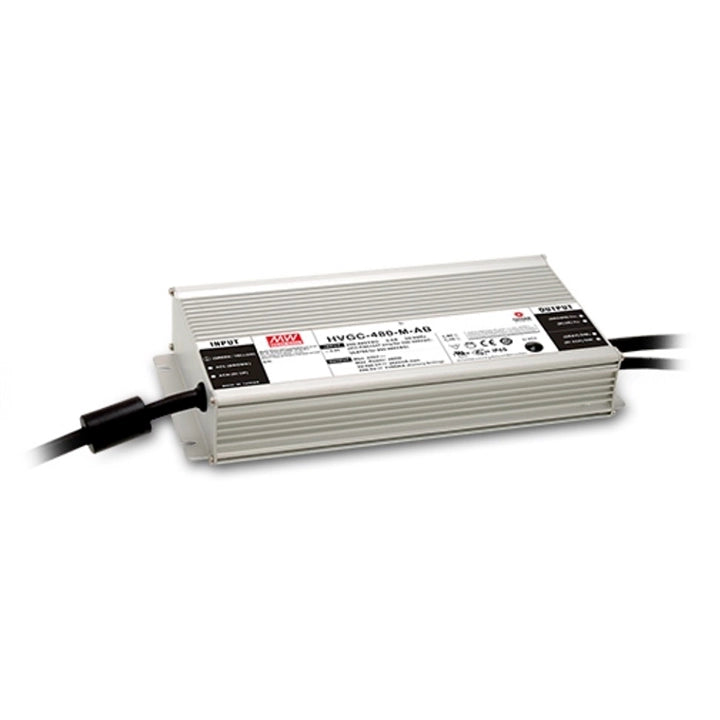

Description
Output current rating: 1400mA Output power rating: 480W Output constant current range: 137~343V Output full power current range: 1400 ~ 1750mA Output open circuit voltage (maximum):350V Output current adjustment range (Typ.):700 ~ 1750mA Input voltage: 180 ~ 528VAC,254VDC ~ 747VDC IP rating: IP67 Function: Io and Vo fixed, optional Size (mm):262X125X43.8
Product Features
1. Constant current mode output (HVGC-65 ~ 320), constant power mode output (HVGC-480 ~ 1000).
2. Ultra wide range input: 180 ~ 528VAC.
3. Metal shell Class I design.
4, the highest efficiency of 95.5 per cent.
5. Explosion-proof HL LED driver, which can be used for Class I,Division 2 lighting equipment in hazardous places (except HVGC-65/100/1000).
6. A variety of functions can be selected: current and voltage adjustment, a variety of dimming equipment.
7. Auxiliary DC output (HVGC-650/1000).
8. Protection type: short circuit/overvoltage/over temperature, 5 years warranty.
