Description

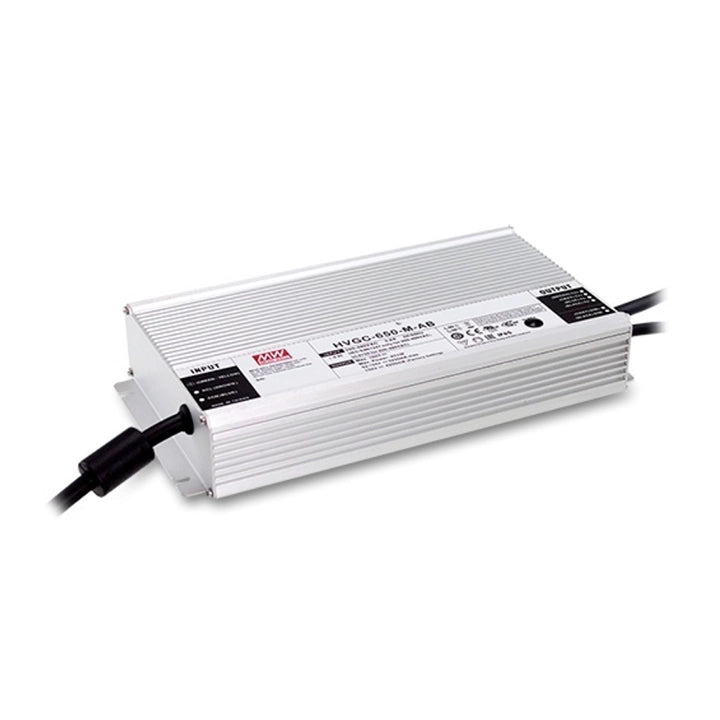

Output current rating: 4200mA Output power rating: 651W Output constant current range: 62~155V Output full power current range: 4200 ~ 5250mA Output open circuit voltage (maximum):160V Output current adjustment range (Typ.):2100 ~ 5250mA Input voltage: 180 ~ 528VAC,254VDC ~ 747VDC No auxiliary DC output (12V 200mA) IP rating: IP67 Function: Standard constant power output, with three-in-one dimming function (0 ~ 10Vdc,10V PWM signal and resistance), and built-in potentiometer, standard product Size (mm):280X144X48.5
Click to download Airtac product catalog
Product Features
1. Constant current mode output (HVGC-65 ~ 320), constant power mode output (HVGC-480 ~ 1000).
2. Ultra wide range input: 180 ~ 528VAC.
3. Metal shell Class I design.
4, the highest efficiency of 95.5 per cent.
5. Explosion-proof HL LED driver, which can be used for Class I,Division 2 lighting equipment in hazardous places (except HVGC-65/100/1000).
6. A variety of functions can be selected: current and voltage adjustment, a variety of dimming equipment.
7. Auxiliary DC output (HVGC-650/1000).
8. Protection type: short circuit/overvoltage/over temperature, 5 years warranty.
