Description

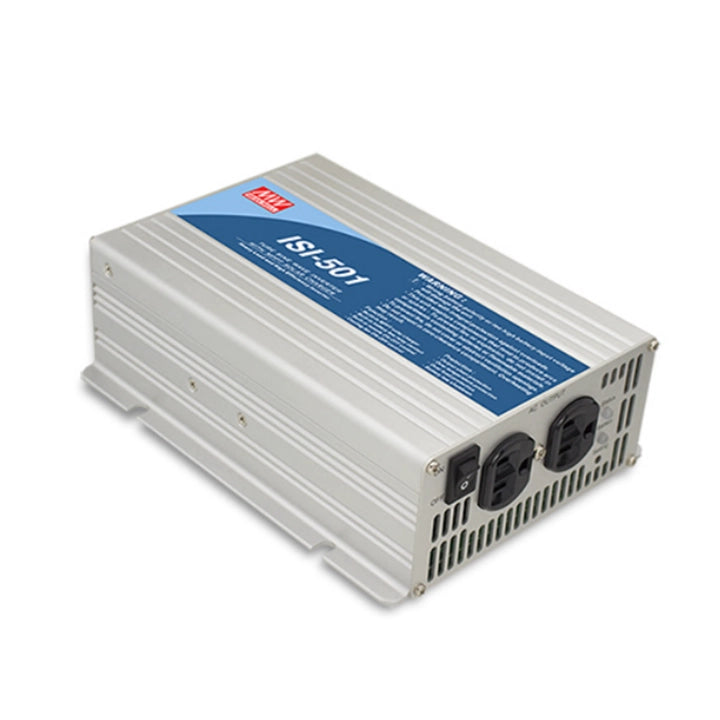

Output power rating: 500W AC output voltage: 110VAC Input battery voltage: 24V Input voltage range: 21 ~ 30VDC Input DC current (Typ.):30A Input no-load current consumption (Typ.):0.63A Input shutdown mode current consumption (Typ.):≤ 1mA Input efficiency (Typ.):87% Size (mm):205X158X67 AC output socket: Europe
Click to download Airtac product catalog
Product Features
1. Pure sine wave output (THD<3%), high surge power up to 1000W, efficiency up to 88%.
2. High frequency design, temperature controlled cooling fan, protection type: battery low voltage alarm/battery low voltage shutdown/over voltage/over temperature/output short circuit/input reverse connection protection/overload.
3. With 500W MPPT solar charger, MPPT efficiency: 98%(Typ.), with remote control switch.
4. Built-in battery low-voltage relay contacts, LED indicates working status and battery capacity, 3-year warranty.
