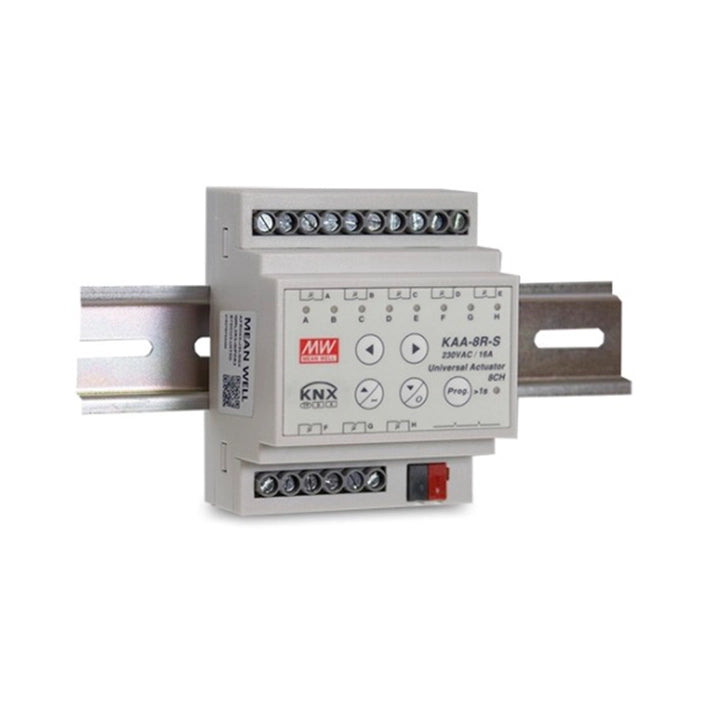

KAA-8R-10-S — 8-channel KNX switching actuator

MEAN WELL KAA-8R-10-S provides eight independent latching relay outputs for switching loads, or four shutter-control pairs. It is powered from the KNX bus and supports KNX Data Secure, panel operation, timers and scenes.

Download MEAN WELL KAA-8R-S Datasheet (PDF)
Download MEAN WELL KAA-8R and KAA-8R-S Instruction Manual (PDF)

KAA-8R-S family: combined catalog pages 21–28, dated 2024-10-16. Use the correct current-rating column for this exact ordering code.

Model and control functions

Parameter	Details
Model identity	Manufacturer ordering code: KAA-8R-10S.
Supply method	Powered by the EIB/KNX bus; no additional power supply is required.
Relay arrangement	Eight independent, potential-free latching relays; up to four shutter outputs.
Rated channel selection	10 A per channel. Observe the load-category, total-current and inrush limits below.
Configuration and manual operation	Configure the application with ETS. Panel buttons provide manual operation and status indication. Time and scene functions are programmable.
KNX Data Secure	The device certificate attached to the unit is required for the first secure configuration. After commissioning, remove it from the device as recommended and store it securely. Use a compatible application database and specialist KNX commissioning knowledge.

Electrical and switching ratings

Parameter	Details
KNX bus supply	21–31 VDC.
Bus current and power	Below 10 mA; below 180 mW.
Relay output rating	230 VAC, 50 Hz; 10 A ohmic load per relay. Each relay is independent and potential-free.
Capacitive load	220 µF; the catalog identifies a Notified Body test report.
Maximum inrush current	400 A for a maximum 200 µs, or 80 A for a maximum 20 ms.
Load categories	EN 60947-4-1: AC1 (cos φ = 0.8) 10 A; AC3 (cos φ = 0.45) 5 A; AC5a (cos φ = 0.45) 8 A; AC5b 10 A.
Maximum total current	56 A for the actuator; the per-channel rating does not override this aggregate limit.
Service life	Mechanical: more than 10⁶ cycles. Electrical endurance EN 60669-1 section 19.1: 4 × 10⁴ cycles; fluorescent lamp (AX), section 19.2: 10⁴ cycles. The specified electrical tests have a Notified Body test report.

Load and driver selection

Parameter	Details
Maximum load per channel	Resistive load or heater: 2300 W; incandescent lamps: 2300 W; 230 V halogen lamps: 2300 W; halogen electronic transformers: 1300 W; fluorescent lamps without compensation: 2000 W; parallel-compensated fluorescent lamps: 1200 W; maximum 15 electronic transformers; shutter motor: 600 W.
LED-driver quantity	The following catalog values are maximum numbers of MEAN WELL LED power supplies per relay channel at 230 V. Respect the exact driver series, load, inrush and total-current limits; these are not counts for mixed-driver combinations.
Driver-count table, part 1	APC-8: 22; APC-12: 11; APC-16: 18; APC-25: 11; APC-35: 11; APC-8E: 22; APC-12E: 18; APC-16E: 15; APV-8: 22; APV-12: 11; APV-16: 18; APV-25: 11; APV-35: 11; APV-8E: 22; APV-12E: 18.
Driver-count table, part 2	APV-16E: 15; LCM-25: 25; LCM-40: 25; LCM-60: 25; LCM-25DA: 25; LCM-40DA: 25; LCM-60DA: 25; LPC-20: 11; LPC-35: 9; LPC-60: 8; LPC-100: 7; LPC-150: 5; LPF-16: 18; LPF-25: 16; LPF-40: 16.
Driver-count table, part 3	LPF-60: 9; LPF-90: 7; LPF-16D: 18; LPF-25D: 16; LPF-40D: 16; LPF-60D: 9; LPF-90D: 7; LPH-18: 16; LPHC-18: 16; LPV-20: 11; LPV-35: 9; LPV-60: 8; LPV-100: 7; LPV-150: 8; NPF-40: 10.
Driver-count table, part 4	NPF-60: 10; NPF-90: 8; NPF-120: 8; NPF-40D: 10; NPF-60D: 10; NPF-90D: 8; NPF-120D: 8; PCD-16B: 80; PCD-25B: 53; PCD-40B: 45; PCD-60B: 26; PLC-30: 23; PLC-45: 23; PLC-60: 23; PLC-100: 13.
Driver-count table, part 5	PLD-16B: 40; PLD-25: 32; PLD-40B: 32; PLD-60B: 32; PLM-12: 53; PLM-25: 53; PLM-40: 53; PLN-20: 23; PLN-30: 23; PLN-45: 23; PLN-60: 23; PLN-100: 13; PLP-30: 32; PLP-45: 27; PLP-60: 23.
Driver-count table, part 6	PWM-40: 10; PWM-60: 10; PWM-90: 8; PWM-120: 8; HLN-40H: 10; HLN-60H: 9; HLN-80H: 7; HLP-40H: 7; HLP-60H: 9; HLP-80H: 7; CEN-60: 22; CEN-75: 22; CEN-100: 22; CLG-60: 23; CLG-100: 13.
Driver-count table, part 7	CLG-150: 8; ELG-75: 10; ELG-100: 8; ELG-150: 8; ELG-75-C: 10; ELG-100-C: 13; ELG-150-C: 8; HBG-100: 8; HBG-160: 8; HBG-240: 7; HBG-60: 18; HLG-40H: 16; HLG-60H: 9; HLG-80H: 7; HLG-100H: 8.
Driver-count table, part 8	HLG-120H: 8; HLG-150H: 8; HLG-185H: 8; HLG-240H: 5; HLG-320H: 6; HLG-600H: 3; HLG-60H-C: 8; HLG-80H-C: 8; HLG-120H-C: 10; HLG-185H-C: 9; HLG-240H-C: 7; HLG-320H-C: 6; HSG-70: 9; HVG-65: 20; HVG-100: 8.
Driver-count table, part 9	HVG-150: 8; HVG-240: 5; HVG-320: 4; HVGC-65: 20; HVGC-100: 8; HVGC-150: 8; HVGC-240: 5; HVGC-320: 4.

Environment, mounting and wiring

Parameter	Details
Operating conditions	−30°C to +45°C, climatic class 3K5; 10–95% RH, non-condensing.
Storage temperature	−35°C to +70°C.
Protection classification	Class II according to EN 61140; overvoltage category III and pollution degree 2 according to EN 60664-1; IP20 according to EN 60529.
Dimensions	72 × 90 × 57 mm (W × H × D); 4 modular units wide, case KAA. General mechanical tolerance ±1 mm.
DIN rail	35 mm mounting rail according to EN 60715; TS35/7.5 or TS35/15 as drawn.
Screw-terminal wire	0.5–4.0 mm² solid core or 0.5–2.5 mm² finely stranded wire.
KNX bus terminal	0.8 mm-diameter solid-core wire. Connect the marked KNX+ and KNX− terminals; the drawing uses red for + and black for −.
Load wiring	Switch the supply line through the selected relay contact and connect the load neutral as shown. Apply the load’s protective-earth requirements separately. For shutter motors, use the paired direction outputs and the motor manufacturer’s wiring instructions.
Unit mass	312 g per unit; packing reference: 48 pieces / 16 kg / 1.02 CUFT.

Standards and reliability

Parameter	Details
Safety model	KAA-8R-10S
Safety standards	BS EN/EN 50491-3; BS EN/EN 60669-1, -2-1 and -2-5; EAC TP TC 004. The catalog identifies a Notified Body test report for the marked tests.
EMC emissions and immunity	BS EN/EN 50491-5-1, -5-2 and -5-3; BS EN/EN 50090-2-2; BS EN/EN 60669-2-1 and -2-5; BS EN/EN 63044-5-1, -5-2 and -5-3; EAC TP TC 020.
Withstand voltage	Between switching and SELV control circuits: 3.5 kVAC.
MTBF reference	597,800 hours minimum per Telcordia SR-332; 447,900 hours minimum per MIL-HDBK-217F at 25°C. Calculated reliability references, not guaranteed service life.
Specification conditions	Unless otherwise stated, parameters are measured at 230 VAC input, rated load and 25°C ambient temperature.
Manufacturer warranty reference	The catalog states a 3-year manufacturer warranty, subject to its applicable terms.

Manufacturer installation instructions

Parameter	Details
Terminal torque discrepancy	The current catalogue states 0.8 Nm, while the instruction manual recommends 5 kgf-cm (4.4 lb-in) at the screw terminals. These values differ. Confirm the instructions for the supplied hardware revision with MEAN WELL before tightening.
KNX terminal and cable layout	Use 0.6-0.8 mm solid-wire diameter at the KNX bus terminal and strip 5 mm. The manual lists 350 m maximum from the bus supply to the furthest device, 700 m between devices and 1000 m total bus-line segments; the stated maximum 256 devices remains subject to actual system power and topology.
Secure commissioning	For KNX Data Secure, use ETS5 version 5.5.0 or later, the device-specific FDSK from its label and the required project security configuration. The manual also allows unsecured operation when deliberately configured; secure capability alone does not mean the installed system is operating securely.
Relay-terminal preparation	The manual specifies 0.5-4.0 mm2 solid or 0.5-2.5 mm2 stranded conductors (12-26 AWG) for the relay terminals, stripped 8 mm, with a 4 mm slotted screwdriver. Confirm the applicable terminal torque separately.
Shutter and switch configuration	Configure the appropriate paired channels for shutter or blind motors. Follow the motor wiring instructions and its load limits; the actuator can also be configured for switching outputs or mixed use, rather than treating every output as an interchangeable motor direction.
