Description

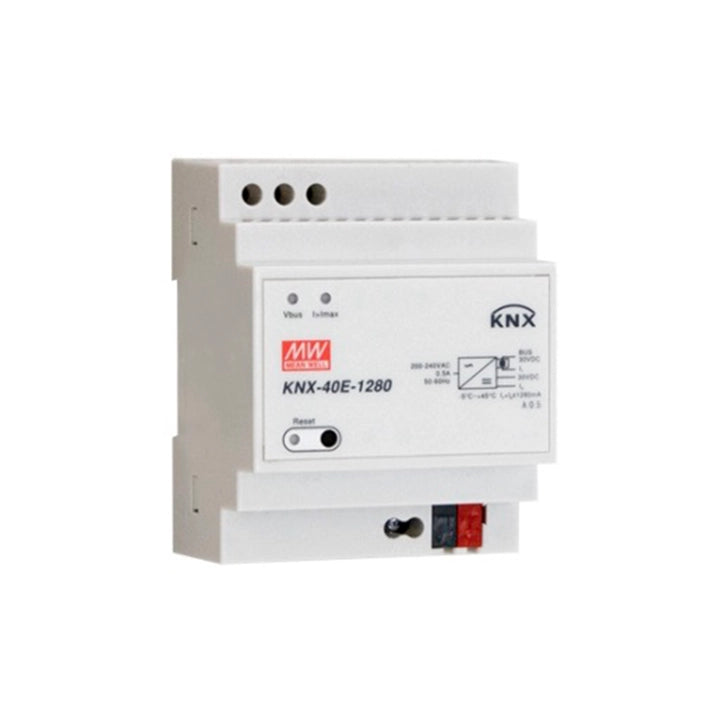

Bus voltage output through choke: bus voltage 30V(KNX red/black terminal) DC voltage without choke: 30V (additional 1 group auxiliary power supply) Rated output current: 1280mA Output power rating: 38.4W Output short circuit current: 2.8A Input voltage: 180 ~ 264VAC,176 ~ 280VDC Function: 1280mA KNX switching power supply, standard product Size (mm):72X90X57
Click to download Airtac product catalog
Product Features
1. EIB/KNX power supply with integrated choke.
2. AC input range: 180 ~ 264VAC.
3. No-load loss 0.5W.
4. Safety Extra Low Voltage (SELV).
5. Class I isolation level, overvoltage level III.
6. There are LED indicators showing the normal operation of the power supply, bus reset and overload information.
7, small appearance.
8. Protection type: short circuit/overload (short circuit resistance)/overvoltage, 3 years warranty.
