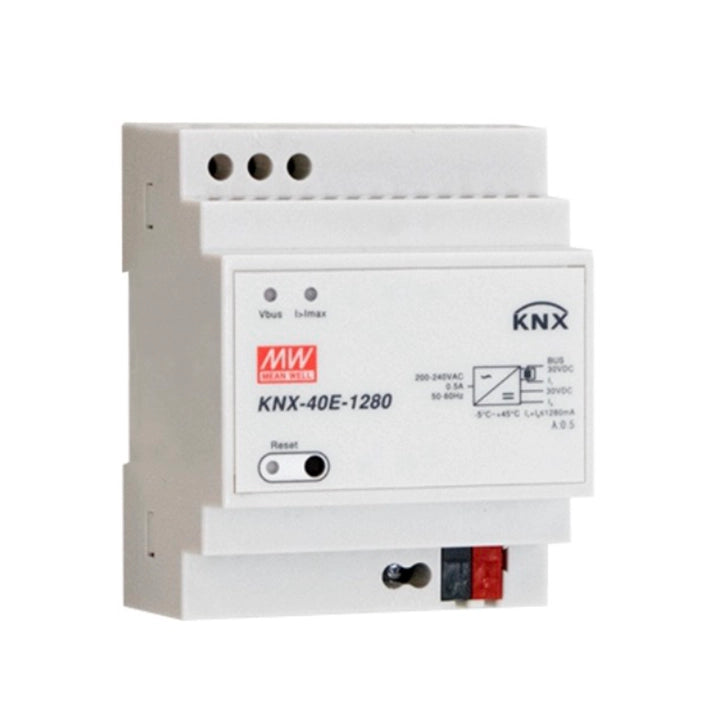

Description
Output through the choke output bus voltage: bus voltage 30V(KNX red/black terminal) Output DC voltage without choke coil output: 30V (additional 1 group auxiliary power supply) Rated output current: 1280mA Output power rating: 38.4W Output short circuit current: 2.8A Input voltage: 180 ~ 264VAC,176 ~ 280VDC Size (mm):72X90X57 Function: with diagnostic function, standard
Click to download Airtac product catalog
Product Features
1. EIB/KNX bus power supply with integrated choke.
2. AC input range: 180 ~ 264VAC.
3. No-load power consumption <0.5W.
4. Safety Extra Low Voltage (SELV).
5. Class I isolation level, overvoltage level III.
6. There are LED indicators showing the normal operation of the power supply, bus reset and overload information.
7, small appearance.
8. Protection type: short circuit/overload/overvoltage, 3 years warranty.
