MEAN WELL KSR series: KNX IP router - KSR-01IP

Description

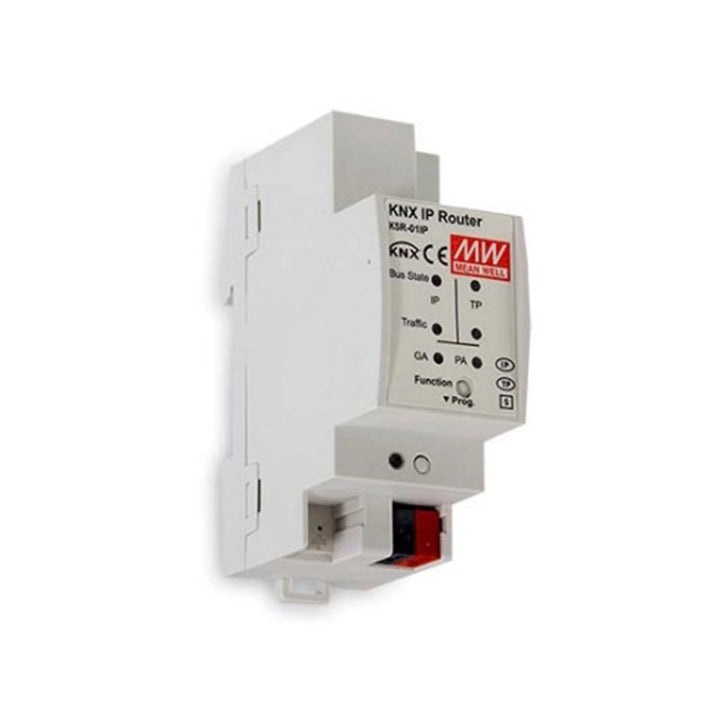

KSR-01IP — KNX IP router

MEAN WELL KSR-01IP connects Ethernet/KNX IP and KNX TP for routing, tunneling, commissioning and diagnostics. It is powered by the KNX TP bus and includes a web front end for maintenance.

Download MEAN WELL KSR Datasheet (PDF)
Download MEAN WELL KSR-01IP User Manual (PDF)

KSR series: combined catalog pages 15–17. Product-sheet date: 2019-07-24.

Interface and control functions

Parameter Details
Model function Classic KNX IP router.
Power supply and current 21–30 VDC from the KNX TP bus; consumption below 20 mA. No additional external power supply is required.
Interfaces RJ45 Ethernet connector and KNX TP connector; KNX protocol.
Routing and commissioning KNXnet/IP routing plus four KNX IP/TP tunneling connections. Supports commissioning, addressing, parameter settings, visualization and diagnostics; Universal Plug and Play.
Telegram filtering Filters traffic according to bus hierarchy and built-in group-address filter tables. Configuration from the subline can be blocked. Temporary filter bypass is available from the function button; ETS sets the time to return to normal operation.
Web front end Built-in web front-end page; firmware can be updated through it.
Bus connection Connect Ethernet at B1 and the KNX TP bus at B4, red + / black −. B2 is the Function button and B3 the Program button.
Main-line status Green: main line OK; red: manual function active.
Subline status Green: subline OK.
Traffic indicators The main-line and subline traffic LEDs flash green with telegram traffic and flash red for transmission errors.
Address-routing indicators For both group-address (GA) and physical-address (PA) routing: green means filter active; orange route all; red block all; OFF means the main-line and subline settings differ.
Programming indicator Red: programming mode. Flashing red: no IP connection.

Installation and environmental limits

Parameter Details
Dimensions 36 × 90 × 71 mm (W × H × D); two modular units wide.
DIN-rail mounting 35 mm rail; TS35/7.5 or TS35/15 according to the mechanical drawing.
Operating conditions −5°C to +45°C; 20–90% RH, non-condensing.
Storage conditions −20°C to +60°C; 5–93% RH, non-condensing.
Protection and pollution IP20 according to IEC 60529; pollution degree 2 according to IEC 60664-1.
Unit mass 70 g per the KSR-01IP manual Weight entry; the series catalog separately lists an 80 g one-piece packing reference.
Commissioning data Use the manufacturer’s appropriate ETS application database and instructions for the exact model and application.

Standards and reliability

Parameter Details
Safety standards EAC TP TC 004 approved; compliance to EN 50428 and EN 62479; EN 60950-1.
KNX standards ISO/IEC 14543-3, EN 50090 and EN 13321-1.
EMC emissions Compliance to EN 50491-5 and EN 61000-3-3; EAC TP TC 020.
EMC immunity Compliance to EN 61000-4-2, -3, -4, -5, -6 and -11; EAC TP TC 020.
MTBF reference 100,000 hours minimum; a reliability reference, not guaranteed service life.
Manufacturer warranty reference The catalog states a 3-year manufacturer warranty, subject to its applicable terms.

Manufacturer installation instructions

Parameter Details
Bus connection and mounting Use the marked red/black screwless KNX TP connector with 0.6–0.8 mm-diameter single-core wire and mount the device on a 35 mm TH35 rail. Do not connect the device to 230 V.
Commissioning address Assign a physical address that matches the project topology: X.Y.0 for a line coupler or X.0.0 for an area coupler. Load and check the applicable ETS configuration and filter settings before putting the installation into service.
Ethernet and KNX network Use the RJ45 connection for a compatible 10/100 BaseT Ethernet network and the separate KNX TP bus connector. KNX IP devices that communicate with one another must use the same multicast address; tunnelling addresses must belong to the subline address range.
Documented unit weight The March 2024 KSR-01IP manual gives a unit weight of 70 g. The main catalog’s 80 g PACKING value is a separate packaging reference.
