Description

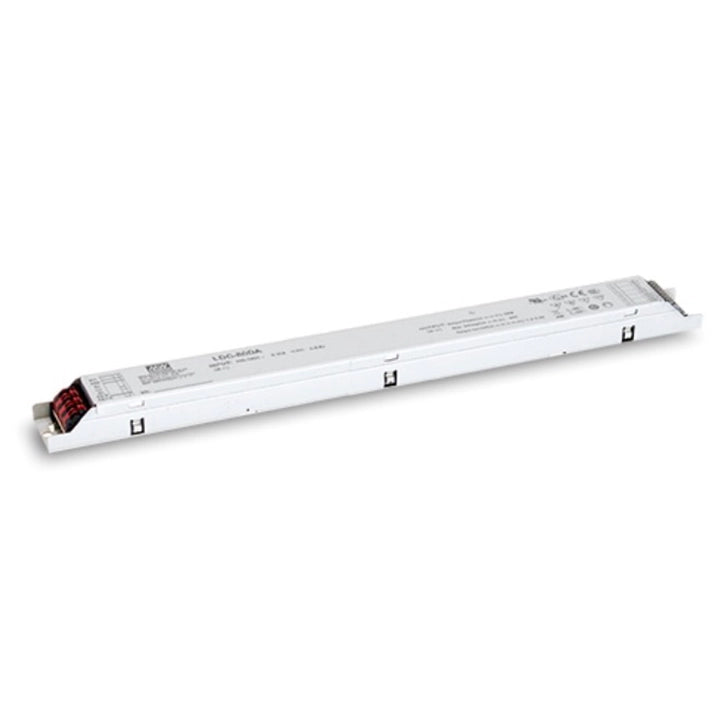

Output current range: 700 ~ 2100mA (default 1400mA) Output power rating: 80W Output constant current range: 27~56V Output full power current range: 1400 ~ 2100mA Output open circuit voltage (maximum):60V Input voltage: 180 ~ 295VAC Function: no dimming, standard Size (mm):360X30X21
Product Features
1. Constant power mode output.
2. It can be fully loaded at 70~100% of the maximum current.
3. Metal shell design, Class 2 power supply; Built-in active PFC function.
4. No stroboscopic design.
5. No-load/standby power consumption <0.5W.
6. Ultra-thin strip design.
7. Optional functions: three-in-one dimming, DALI dimming.
8. Protection type: short circuit/overvoltage/over temperature; 5 years warranty.
